T100 Network Wizard – Remote Networking Device with NAT Traversal

Core Specifications

  • Processor: ARM A7 processor

  • Operating System: Ubuntu

  • Security Protocol: AES-GCM encryption

  • Interfaces: 4G / 100 Mbps Ethernet × 1 / RS485 × 2

Applications

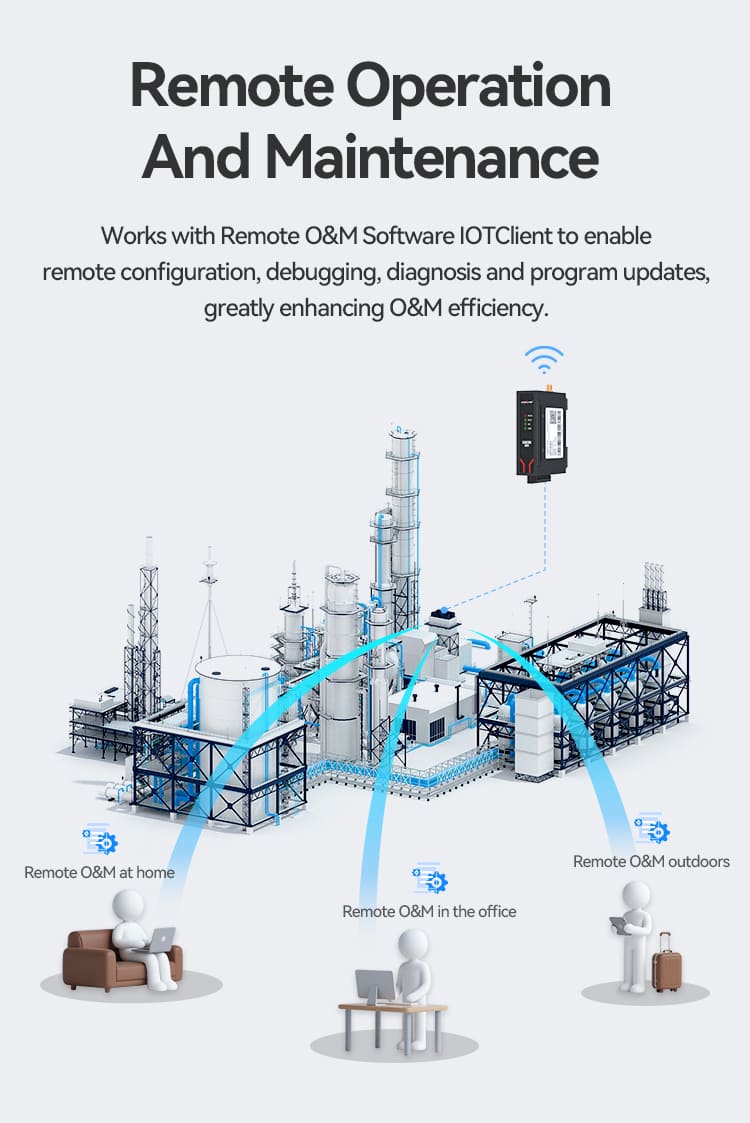

  • Remote Operation and Maintenance of Ethernet or serial devices across multiple sites.

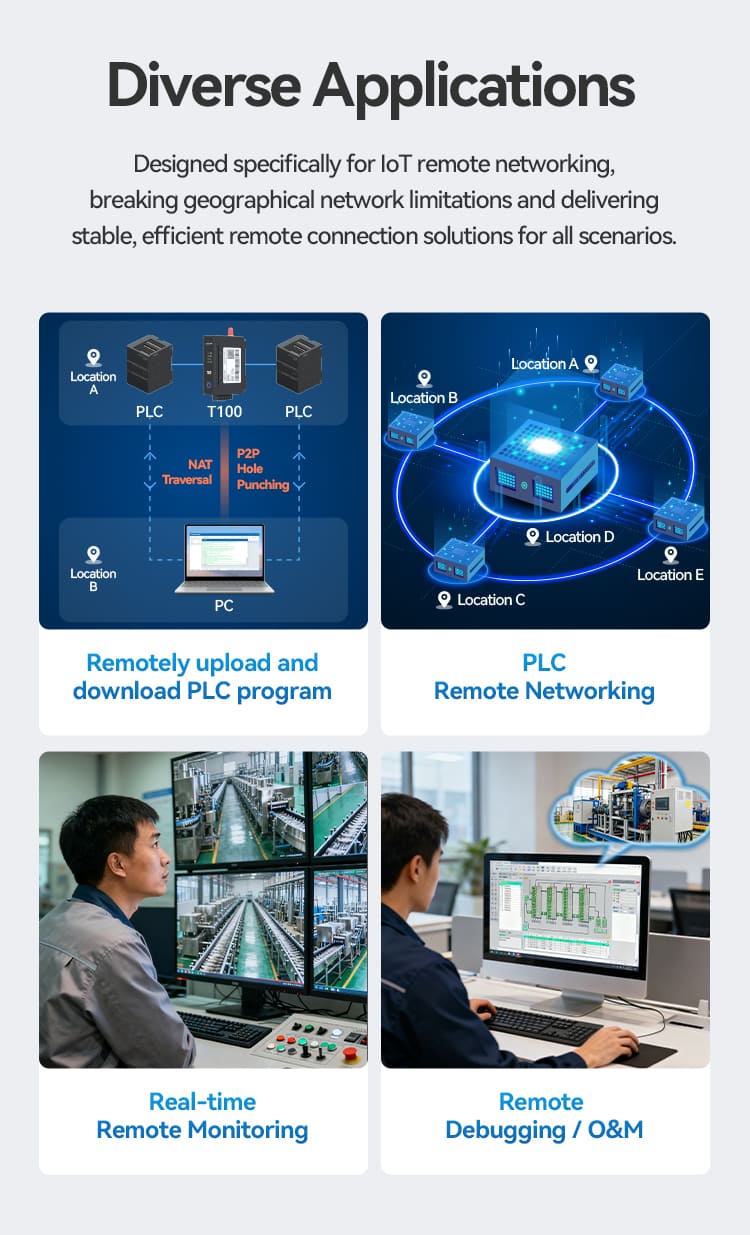

  • Cross-Site Industrial Networking, enabling seamless communication between gateways and controllers located in different networks.

Catégories : ,

Description

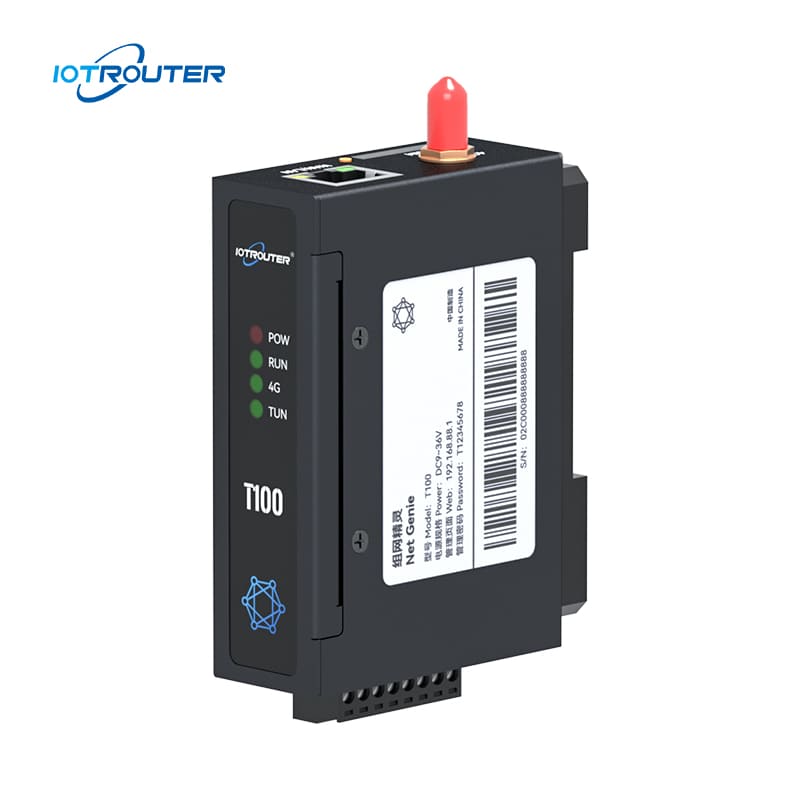

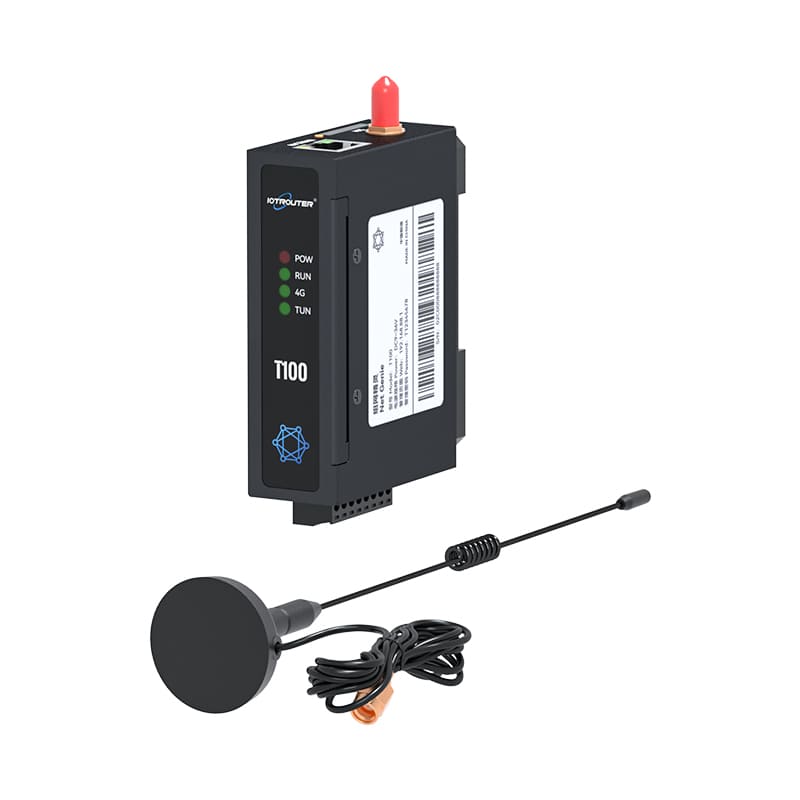

The T100 Network Wizard is an innovative remote networking device with NAT traversal launched by IOTRouter.

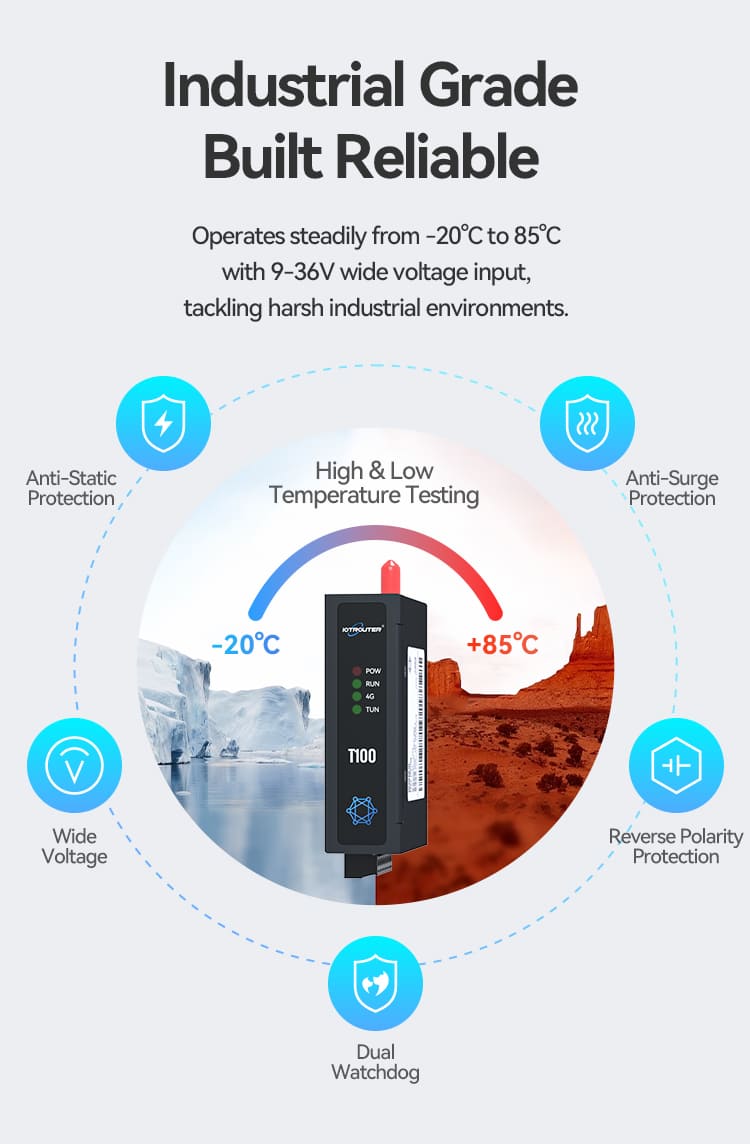

It integrates an ARM A7 processor, 1 WAN/LAN port, dual RS485 interfaces, and operates reliably across 9–36V power input and -20 to 85°C environments.

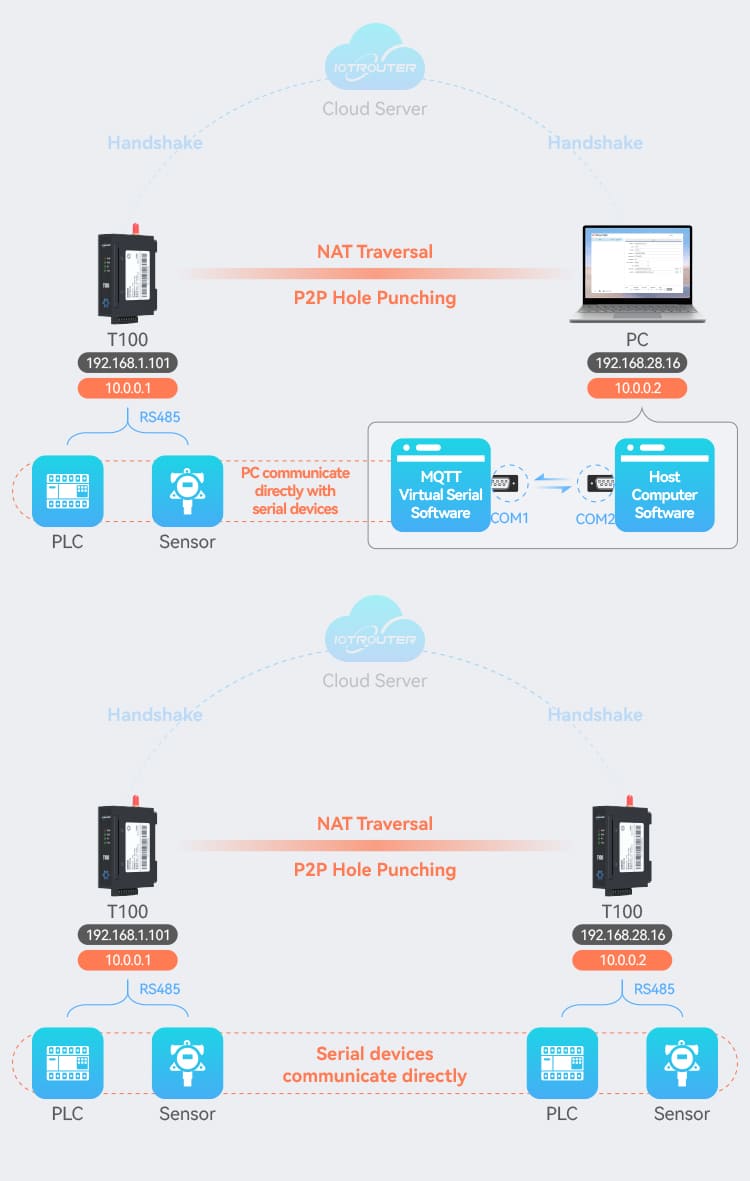

The core advantage of this product focuses on efficient and secure networking: No public IP is required for intranet penetration, while P2P direct connection eliminates cloud bandwidth reliance for larger traffic.

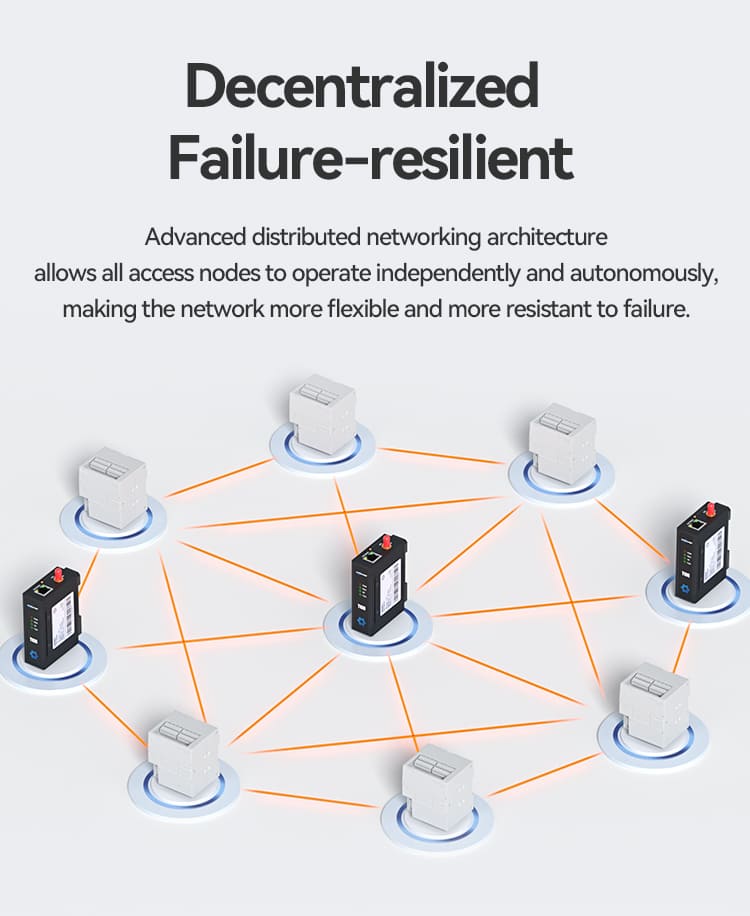

Its decentralized architecture with equal, independent nodes enables independent data forwarding for networking.

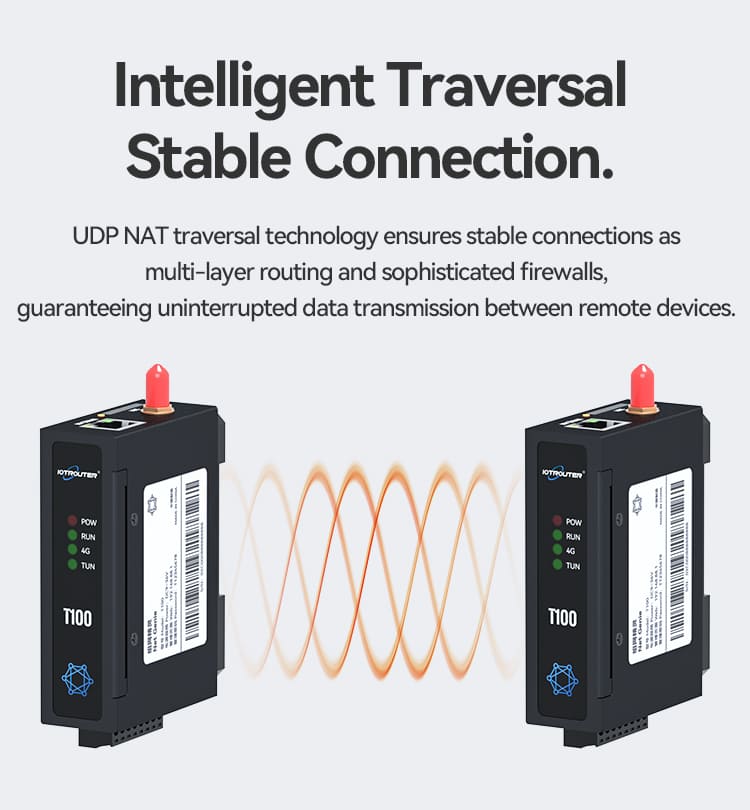

Combined with AES-GCM encryption, it supports UDP NAT traversal for stable connections in complex networks, thus fully safeguarding data transmission security and flexibly meeting diverse IoT networking needs.

T100 Network Wizard – Remote Networking Device with NAT Traversal_01 T100 Network Wizard – Remote Networking Device with NAT Traversal_02 T100 Network Wizard – Remote Networking Device with NAT Traversal_03 T100 Network Wizard – Remote Networking Device with NAT Traversal_04 T100 Network Wizard – Remote Networking Device with NAT Traversal_05 T100 Network Wizard – Remote Networking Device with NAT Traversal_06 T100 Network Wizard – Remote Networking Device with NAT Traversal_07 T100 Network Wizard – Remote Networking Device with NAT Traversal_08 T100 Network Wizard – Remote Networking Device with NAT Traversal_09 T100 Network Wizard – Remote Networking Device with NAT Traversal_10 T100 Network Wizard – Remote Networking Device with NAT Traversal_11 T100 Network Wizard – Remote Networking Device with NAT Traversal_12 T100 Network Wizard – Remote Networking Device with NAT Traversal_13

Spécifications

CategoryItemSpecification / Description
Configuration de baseProcessorARM A7 Processor
Système d'exploitationUbuntu
4G ModuleModule BrandQuectel – Cat.1 (4G)
Bandes prises en chargeLTE-FDD: B1/B3/B5/B8;
LTE-TDD : B34/B38/B39/B40/B41
Puissance d'émissionLTE-FDD: Class 3 (23 dBm ±2 dB);
LTE-TDD : classe 3 (23 dBm ±2 dB)
Bandwidth (Theoretical Maximum Rate*)LTE-FDD: Max 10 Mbps (DL) / Max 5 Mbps (UL); LTE-TDD: Max 8.96 Mbps (DL) / Max 3.1 Mbps (UL)

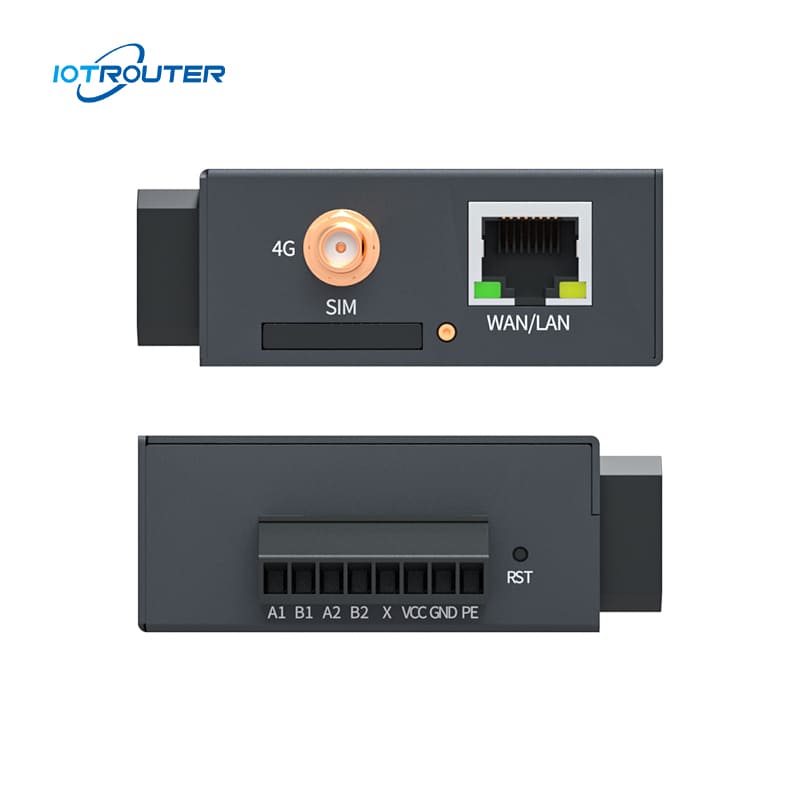

Ethernet PortWAN/LAN1 × 10/100 Mbps Auto MDI/MDIX
Port Quantity2 Channels
TerminalA, B
Débit en bauds2400–921600 bps
RS485 InterfaceBits de données7, 8
Stop Bits1, 2
ParityNONE (No parity), EVEN, ODD
Protection de l'environnementESD and Surge Protection
RTCLocal ClockSupported
IndicatorsLEDs4 LEDs
Paramètres électriquesCertificationCE
Adaptateur de courant12V / 2A
Tension de fonctionnement9–36V
Courant d'exploitation60mA @12V
Paramètres environnementauxTempérature de fonctionnement-20°C ~ +85°C
Température de stockage-20°C ~ +85°C
Humidité de fonctionnement0–95% RH (non-condensing)
Humidité de stockage0–95% RH (non-condensing)

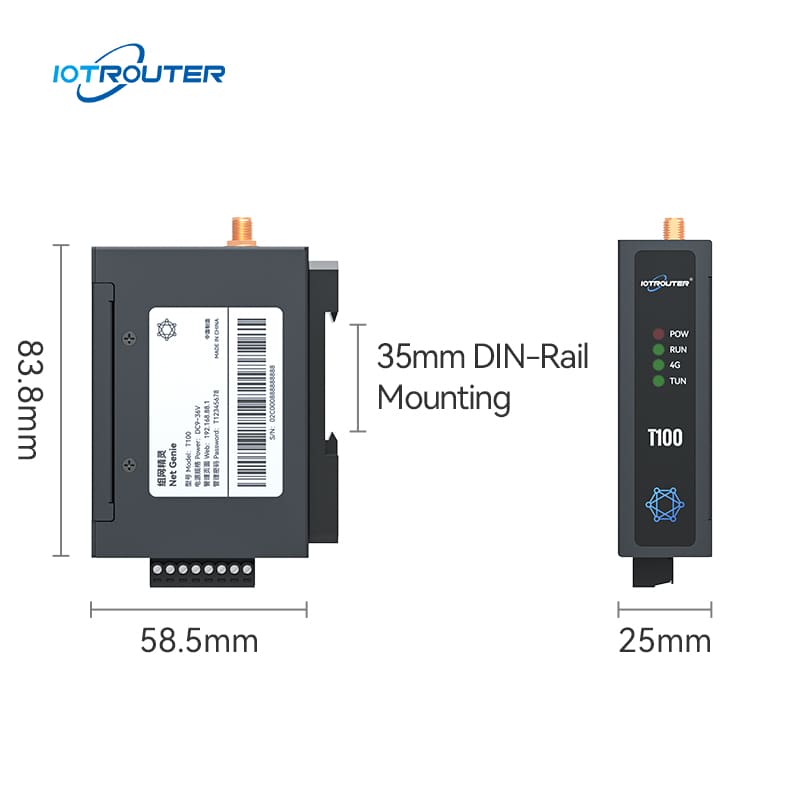

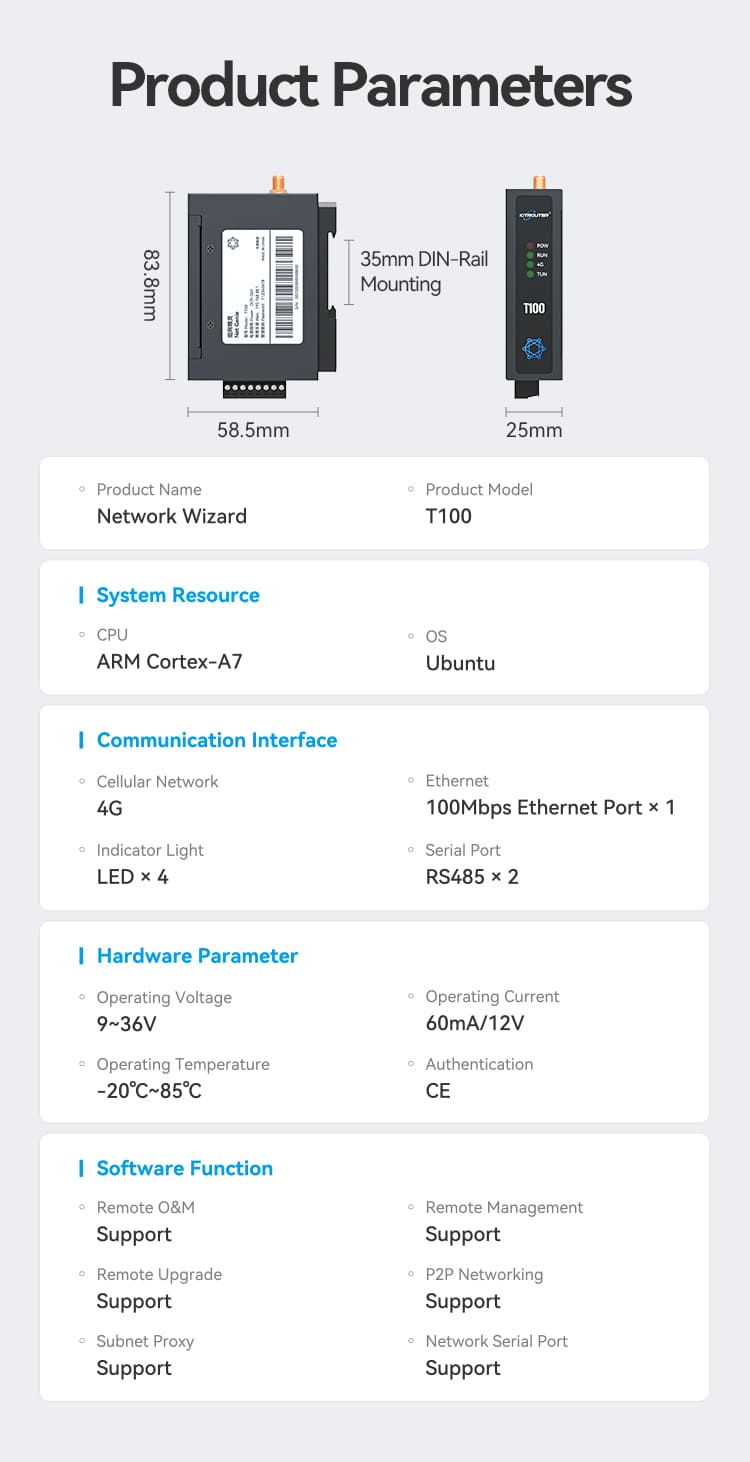

Paramètres mécaniquesDimensions83.8 × 58.5 × 25 mm
Matériau du boîtierAcier galvanisé

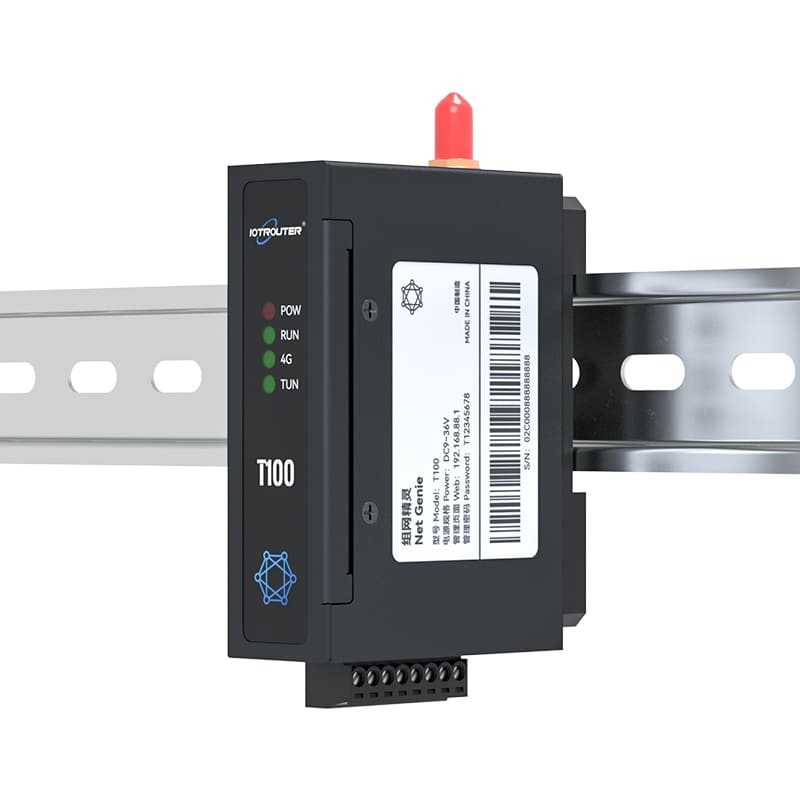

Méthode de montageDIN Rail
Méthode de refroidissementRefroidissement passif
Bouton de réinitialisationPress and hold for 10s to restore factory settings
EMC (Electromagnetic Compatibility)ESD (Electrostatic Discharge)Air Discharge: Level 3 ±8kV; Contact Discharge: Level 2 ±4kV
SurtensionLevel 2 ±1kV
EFT (Electrical Fast Transient)Level 2 ±1kV
Software FunctionsFonctionnement et maintenance à distanceSupported
Gestion à distanceSupported
Mise à jour à distanceSupported
P2P NetworkingSupported
Subnet ProxySupported
Network Serial PortSupported
