In this tutorial, we will focus on EG series edge computing gateway with PLCs. We hope this proves helpful.
The article we discussed before:
How to integration EG edge computing gateway with General Electric PLC
How to integration with Xinjie PLC via Modbus RTU protocol
Today, let’s talk about how to interface the EG edge gateway with Keyence KV-8000 series PLCs via the MC-3E protocol.
Compatible PLC: KV-8000 Series
1. Hardware Connection
The MC-3E protocol utilizes Ethernet communication. Therefore, simply ensure the gateway’s LAN port and the Keyence PLC’s IP address are within the same subnet.
| EG8200Mini（LAN） | KV-8000 | |
| IP address | 192.168.1.100 | 192.168.1.1 |
2. PLC Communication Parameters
IP: 192.168.1.1
Port: 5000
3. Gateway Settings
3.1. PLC Connection Settings

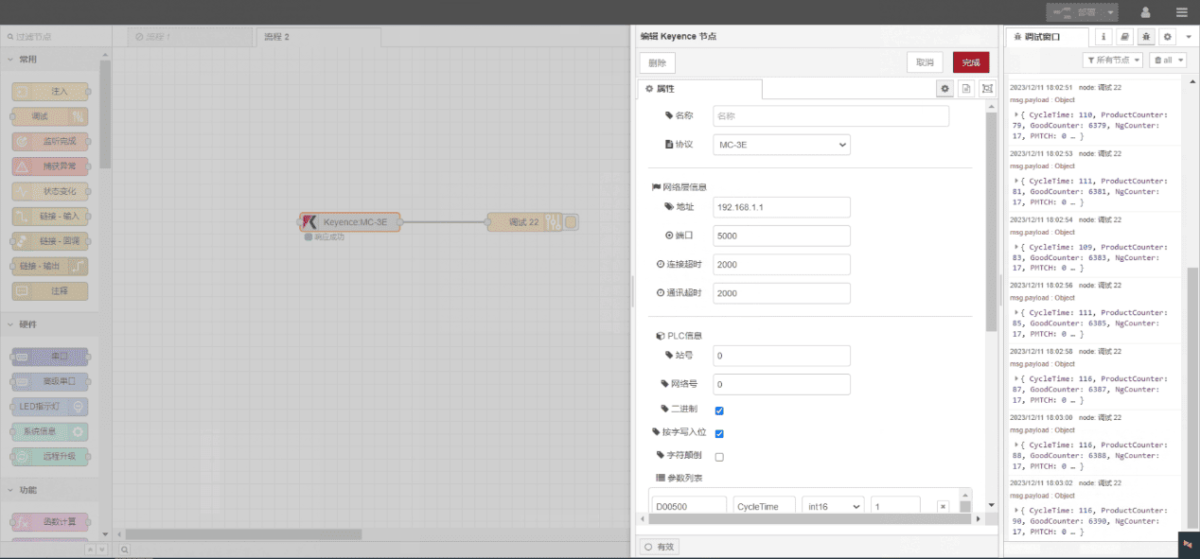

Drag a Keyence node from the left panel, double-click to open the settings page, and configure as follows based on the PLC’s communication parameters:
Protocol: MC-3E
Network Port: Connected to the gateway’s LAN port
Address: 192.168.1.1
Port: 5000
Connection Timeout: 2000
Communication Timeout: 2000
Station ID: 0
Network ID: 0
Binary: √
3.2. Data Point Configuration
Enter the data points to be read into the parameter list of the Keyence node. Once configured, the node will automatically read data from the PLC at the specified frequency.
Data points are typically provided by PLC engineers. Upon receiving the point list, fill in the data points according to the gateway’s required format. For specific correspondence, refer to:
This is a Yueque content card. Click the link to view:（You can use Google Chrome for translation） https://iotrouter.yuque.com/zn3vdn/eg8000/wgvrbfp0ivzdod3h

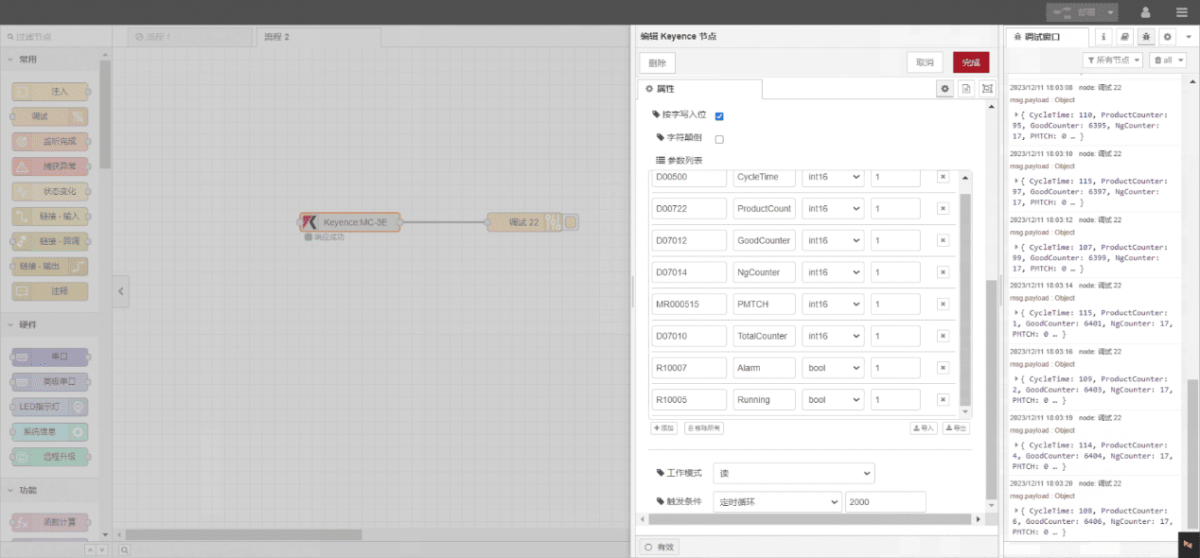

This example reads data from multiple addresses such as DM00500 and DM00722. In the parameter list, enter each entry in the following order: Address/Name/Data Type/Data Length. The data is read cyclically every 2 seconds, as shown in the diagram:
3.3. Testing

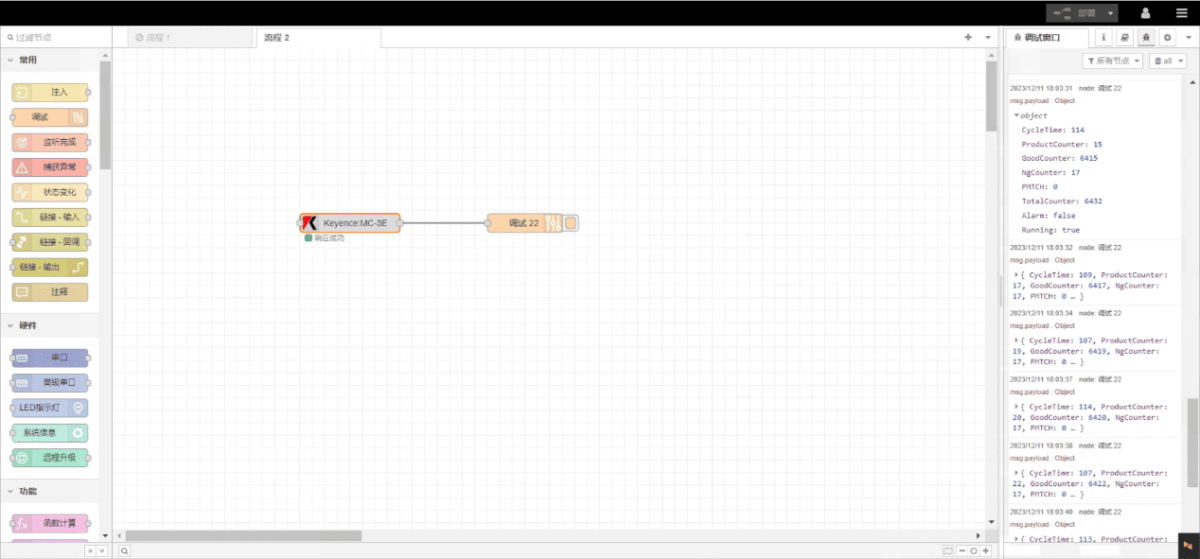

Click Deploy and observe that a data point is printed every 2 seconds. Verify that the returned data point name and corresponding value appear—communication is successful!
