EG8200Lite – Cost-Effective Industrial IoT Edge Gateway with Core Edge Capabilities

Descrizione

EG8200Lite is a cost-effective industrial IoT edge gateway designed for industrial data acquisition, protocol conversion, and device-to-cloud integration. With versatile industrial interfaces and a redesigned web configuration interface for easier deployment, it also provides optimized integration as an official hardware partner of ThingsBoard e EMQX.

Ideal for industrial equipment integration, smart factories, and remote operations, EG8200Lite supports offline data continuity, Node-RED visual programming, virtual serial and network ports, and remote management, delivering a reliable and cost-effective solution for industrial automation.

Key Features

Industrial Data Acquisition

Collect data from PLCs, sensors, and industrial controllers.

Industrial Protocol Conversion

Convert between Modbus, MQTT, OPC UA, and other protocols.

Device-to-Cloud Connectivity

Connect field devices to cloud platforms for monitoring.

Flexible Data Mapping

Define custom data formats, mapping rules, and logic.

Programmazione visiva Node-RED

Build automation workflows using the built-in Node-RED editor.

Offline Data Continuity

Local storage ensures data buffering during network interruptions.

Remote Device Management

Remote configuration, monitoring, firmware upgrades, and PLC debugging.

Industrial-Grade Reliability

Operates from −20°C to 85°C with 9–36V wide voltage input.

* Support OEM/ODM, contact customer service for details.

Multi-Protocol Seamless Integration

Compatible with major industrial and network protocols.Integrates effortlessly with AWS, Azure, and ThingsBoard forrapid cloud data transfer, accelerating enterprise digital transformation.

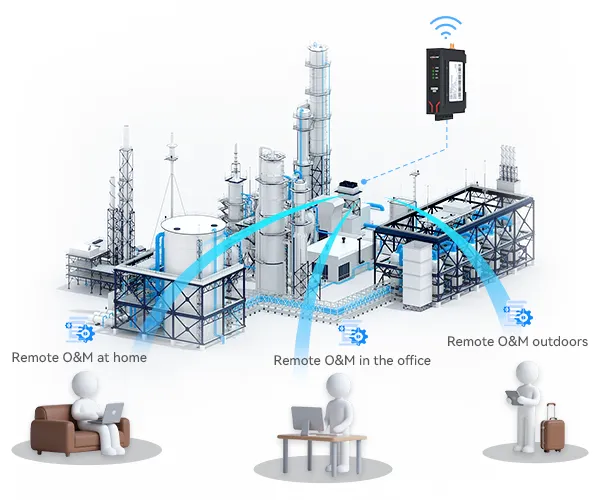

Funzionamento e manutenzione a distanza

Works with EG Series Remote O&M Software IOTClient to enableremote configuration, debugging, diagnosis, and program updates, greatly enhancing O&M efficiency.

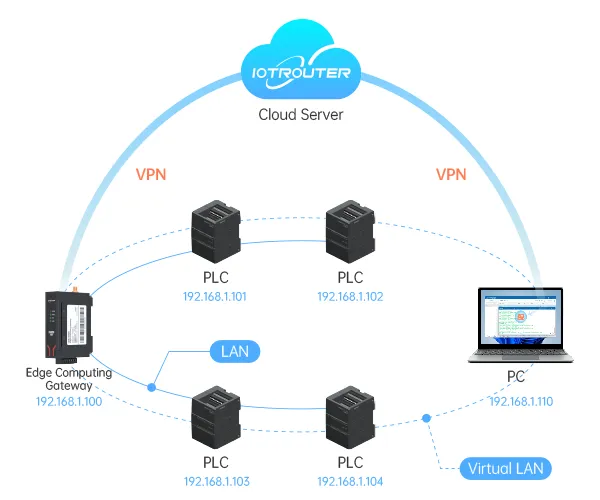

Virtual Channels Wireless Connection

With virtual serial & Ethernet port technologies. Support remote upload and download of PLC programs and serial device debugging.

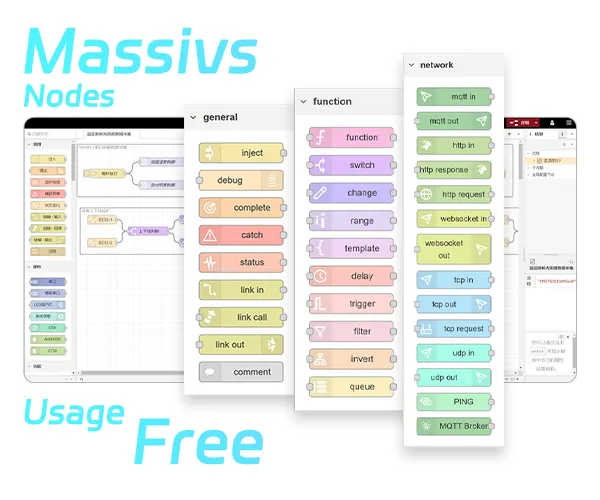

Pre-built Nodes Drag & Deploy

Comes with a deeply customized Node-Red, with visual node-based programming. It accelerates the setup of industrial IoT workflows.

Simple but Significant Cost-Effective Choice

Focus on industrial IoT infrastructure empowerment, with streamlined configurations to target core needs, featuring controllable costs and reliable operation.

Scenari di applicazione

In many industrial IoT projects, users are not deploying large-scale automated factories. Instead, they face dispersed equipment, unstable data flows, and integration challenges, often under tight budgets and project timelines. The EG8200Lite is designed for these scenarios, enabling small or distributed sites to reliable edge data collection and efficiently connect to IoT systems.

Industrial IoT connectivity within limited budgets

Industrial sites often have a variety of PLCs, energy meters, sensors, and controllers with different interfaces and communication protocols. The EG8200Lite consolidates these devices, performing local data conversion and standardization, so SCADA or cloud platforms can access consistent and reliable data.

Enabling smart operations and remote device monitoring in small sites

Maintenance teams frequently need to visit remote machine rooms, pump stations, or distributed equipment to handle alarms. The EG8200Lite supports local data collection and remote access, reducing the need for on-site inspections and enabling efficient remote monitoring and maintenance, even in environments with unstable networks.

Fast deployment for limited IT resources

Not all facilities have dedicated OT/IT engineers. For startups, retrofit projects, or small factories, the EG8200Lite offers a solution that is easy to deploy and highly protocol-compatible. Even under network interruptions, it ensures stable local data acquisition and upload, providing a reliable foundation for rapid industrial IoT deployment.

FAQ

Q1: Is the performance of EG8200Lite (Single-core A7, 256MB RAM) sufficient? Is it too weak?

A1: For its target scenarios—connecting a small number of devices (such as a few PLCs or energy meters) for data acquisition, protocol conversion, and transparent transmission—it is perfectly sufficient. It is designed to meet core industrial needs at the most optimized cost, rather than providing excessive performance. It performs stably in typical scenarios like Modbus RTU/TCP collection and data reporting via MQTT/HTTP.

Q2: Which communication protocols does it support? Can it connect to specific brand PLCs?

A2: It natively supports common industrial protocols such as Modbus, DLT645, and HJ212.

• • Extensibility: Through the built-in Node-RED visual programming platform, you can load third-party nodes to extend support to OPC UA, BACnet, and more.
  • Compatibility: It can connect to the vast majority of mainstream PLC brands via corresponding protocol nodes.

Q3: Is 4G Cat. 1 speed slow? Will there be data upload latency?

A3: Cat. 1 offers a theoretical downlink of 10Mbps and uplink of 5Mbps, which is more than enough for common IoT data packets like sensor readings and status info. The latency is fully acceptable. Its advantage lies in much lower power consumption and cost compared to Cat. 4, making it ideal for low-frequency, small-bandwidth industrial data transmission.

Q4: How is its reliability and protection? Can it be used in harsh workshop environments?

A4: Yes. It features an industrial-grade design:

• • Environmental: Operating temperature from -20°C to 85°C and wide voltage input (9-36V DC).
  • Protection: CE certified with Level 2 Surge (±1KV) and EFT protection, ensuring stability in common industrial interference environments.

Q5: We don’t have professional software engineers. Can we still configure and use it?

A5: This is one of the core strengths of EG8200Lite. It provides drag-and-drop visual programming based on Node-RED. Most data acquisition and forwarding logic can be configured by simply connecting nodes, significantly lowering the technical barrier. We also provide comprehensive remote technical support.

Q6: What are the main differences between EG8200Lite, EG8200, and EG8200Pro?

A6: The three models are positioned for different project requirements:

Note on PLC Support: EG8200Lite Industrial protocol gateway supports standard Modbus (RTU/TCP) and industry protocols. Unlike the EG8200/Pro series, it does not natively support proprietary protocols of brands like Siemens, Mitsubishi, or Omron (unless extended via Node-RED).

EG Series Product Selection Guide

Gateways across the EG series maintain a consistent user experience. Model variations are largely hardware-related, and any functional differences are generally confined to certain node options.

Quick Access to EG Series Products →

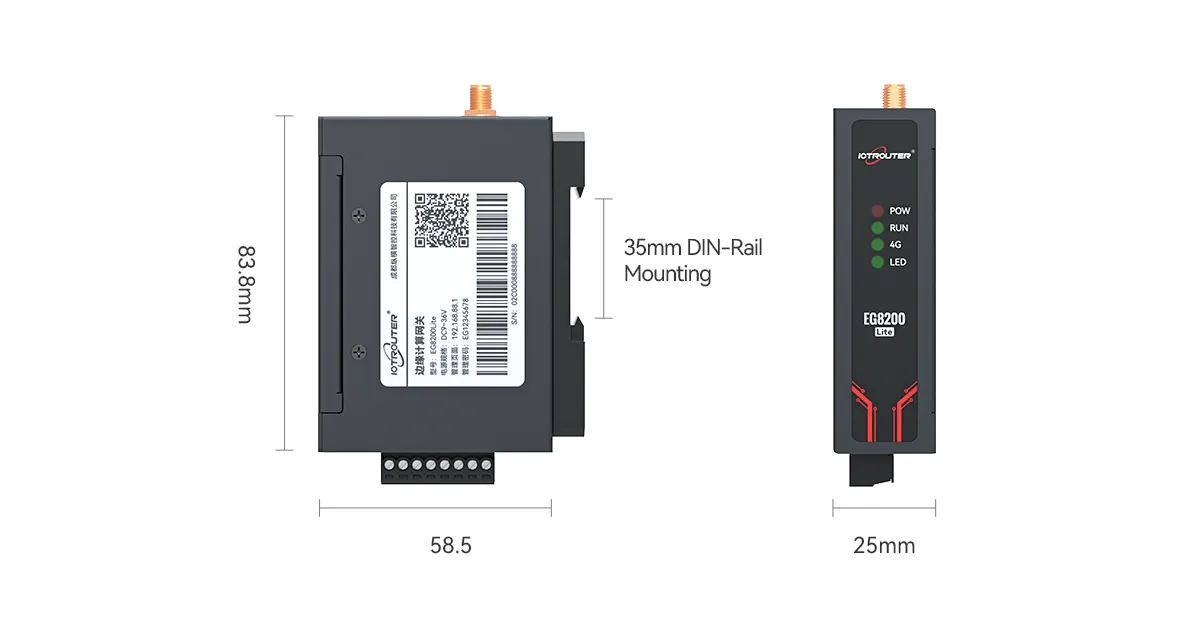

Product Size

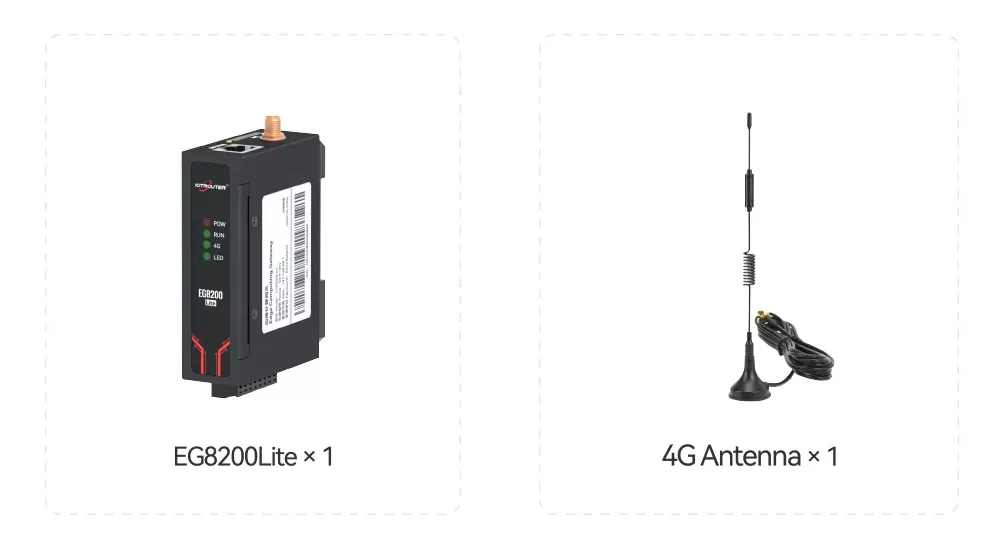

Packing List
