Industrial Edge Controllers and IoT Gateways

Connect PLCs, machines and field devices with flexible edge computing solutions

Industrial IoT Products

IOTRouter's product range includes edge controllers, edge computing gateways, AI edge computers, industrial computers, industrial routers, HMIs, remote I/O and IoT data middleware platforms. The portfolio includes CE- and FCC-certified models and RoHS-compliant products for global markets.

MAIN FEATURES OF EDGE GATEWAY

The EG series Edge Computing Gateway, with its rich hardware interface, drag and drop programming, zero code design concept, convenient remote management, and other characteristics, can quickly, flexibly, accurately, and efficiently respond to various IoT industry needs.

MQTT

MQTT Subscribe/Publish

The MQTT Publish node is used to send messages to the specified Topic. The MQTT Subscription node is used to receive messages for the specified Topic.

HTTP

HTTP Listen/Respond

The HTTP Listening node creates an HTTP server to receive HTTP requests, and the HTTP Response node is responsible for responding to requests.

HTTP

HTTP Request

The HTTP Request node is the HTTP client mode. Send HTTP requests and return responses, supporting GET, PUT, POST, DELETE and other modes.

TCP IN/OUT

TCP IN/OUT

The EG8200 series edge computing gateways support both TCP server and TCP client, and there is no limit on the number of connections.

TCP

TCP Client-Side

Sends msg.payload to the specified TCP server and expects a response. A connection is initiated only when a message is entered.

UDP

UDP

UDP IN indicates the data received by the gateway and UDP OUT indicates the data sent by the gateway.

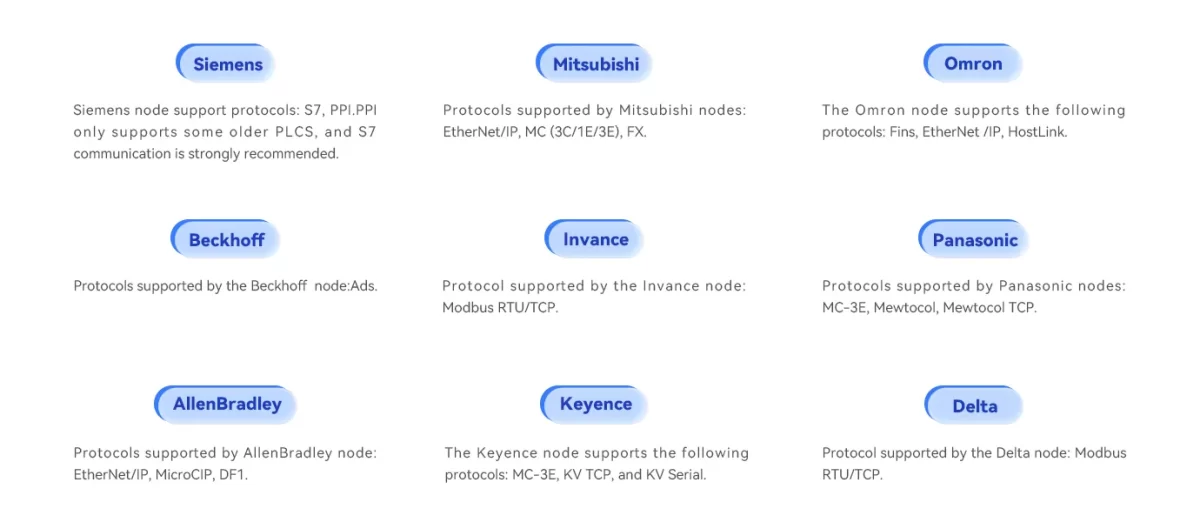

Siemens

Siemens node support protocols: S7, PPI. PPI only supports some older PLCs, and S7 communication is strongly recommended.

Mitsubishi

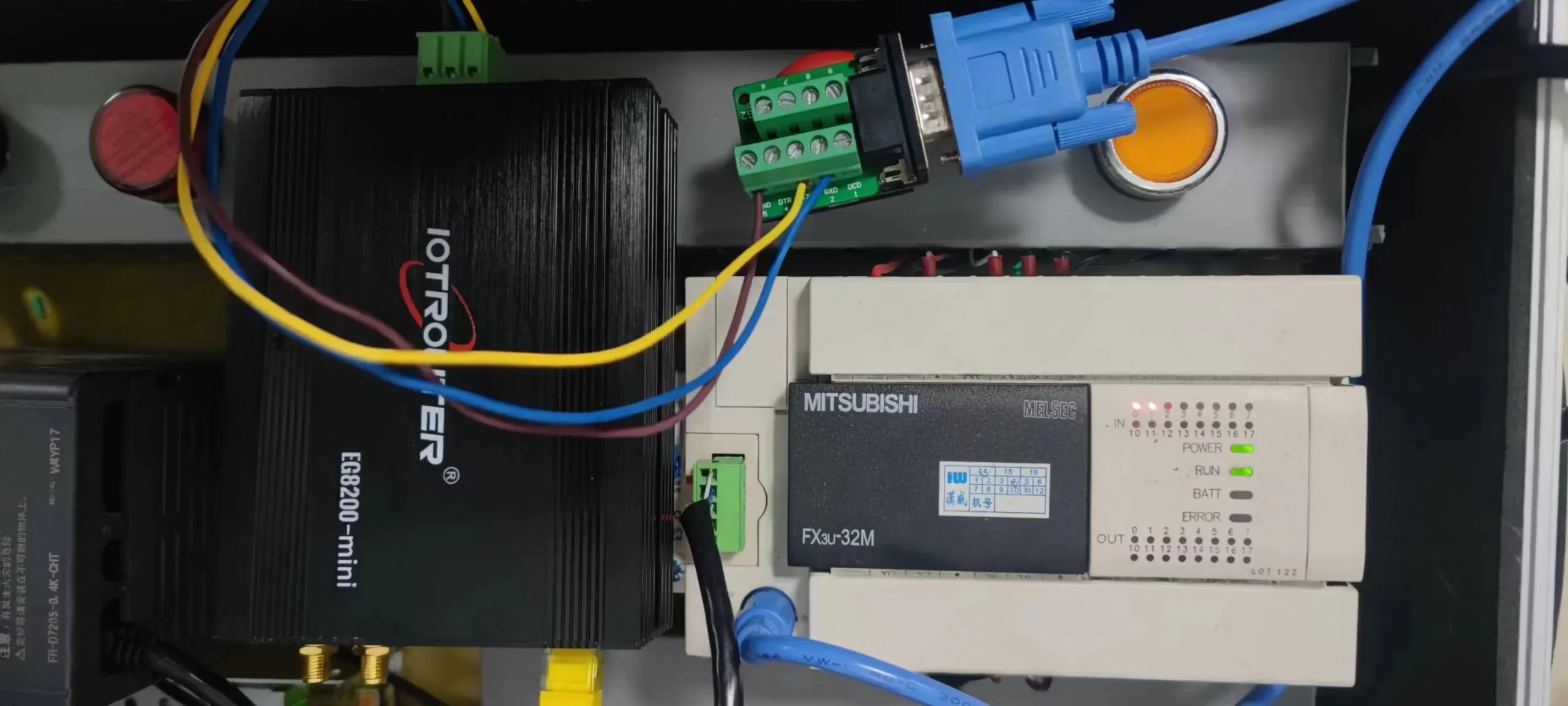

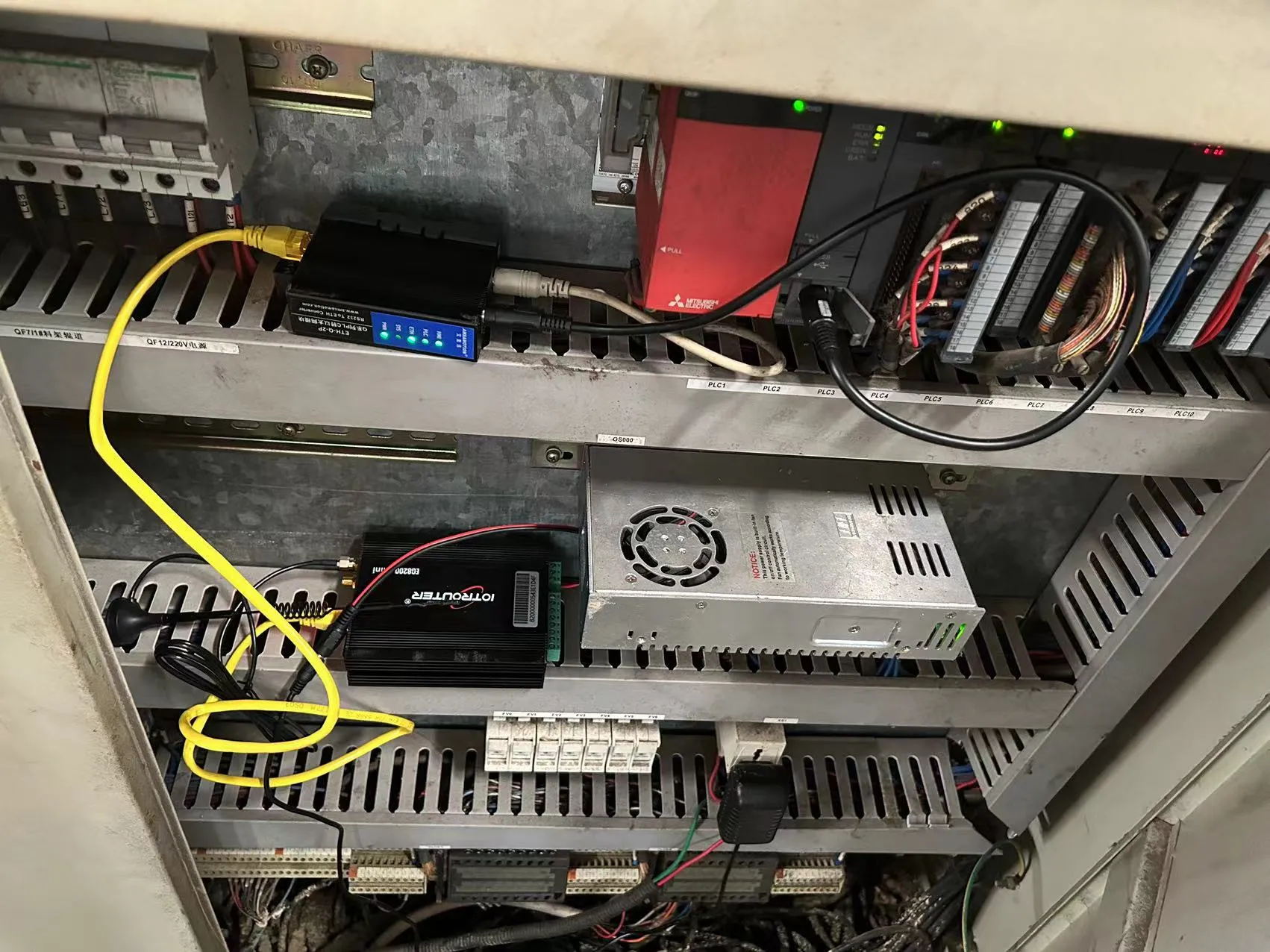

Protocols supported by Mitsubishi nodes: EtherNet/IP, MC (3C/1E/3E), FX.

Omron

The Omron node supports the following protocols: Fins, EtherNet/IP, HostLink.

Beckhoff

Protocols supported by the Beckhoff node: Ads.

Invance

Protocol supported by the Invance node: Modbus RTU/TCP.

Panasonic

Protocols supported by Panasonic nodes: MC-3E, Mewtocol, Mewtocol TCP.

AllenBradley

Protocols supported by AllenBradley node: EtherNet/IP, MicroCIP, DF1.

Keyence

The Keyence node supports the following protocols: MC-3E, KV TCP, and KV Serial.

Delta

Protocol supported by the Delta node: Modbus RTU/TCP.

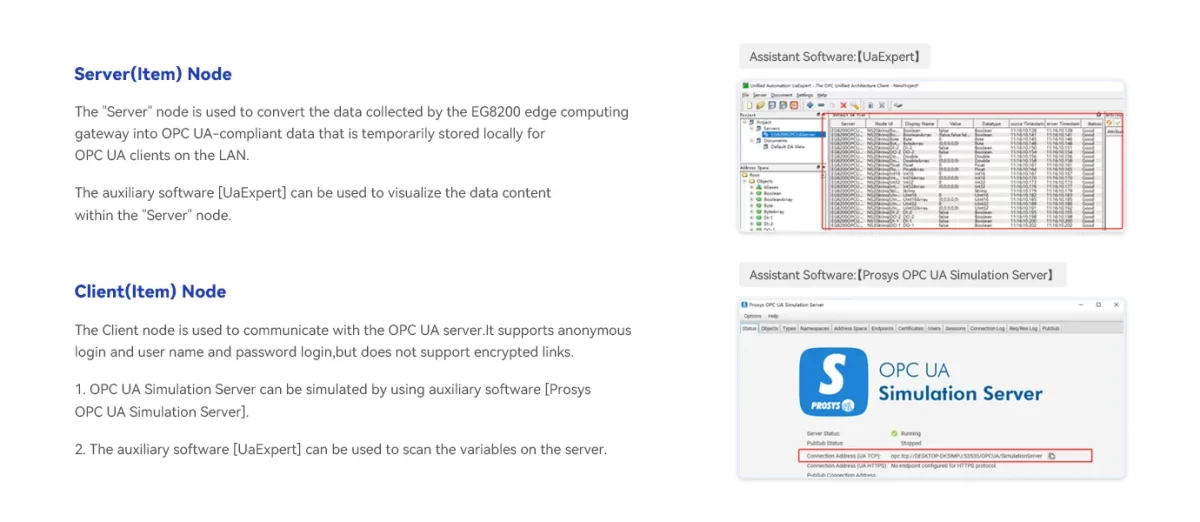

Server(Item) Node

The “Server” node is used to convert the data collected by the EG8200 edge computing gateway into OPC UA-compliant data that is temporarily stored locally for OPC UA clients on the LAN.

The auxiliary software [UaExpert] can be used to visualize the data content within the “Server” node.

Client(Item) Node

The Client node is used to communicate with the OPC UA server. It supports anonymous login and user name and password login, but does not support encrypted links.

1. OPC UA Simulation Server can be simulated by using auxiliary software [Prosys OPC UA Simulation Server].

2. The auxiliary software [UaExpert] can be used to scan the variables on the server.

Assistant Software: [UaExpert]

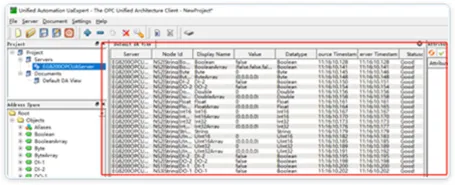

UaExpert OPC UA client software interface
Assistant Software: [Prosys OPC UA Simulation Server]
Prosys OPC UA Simulation Server interface

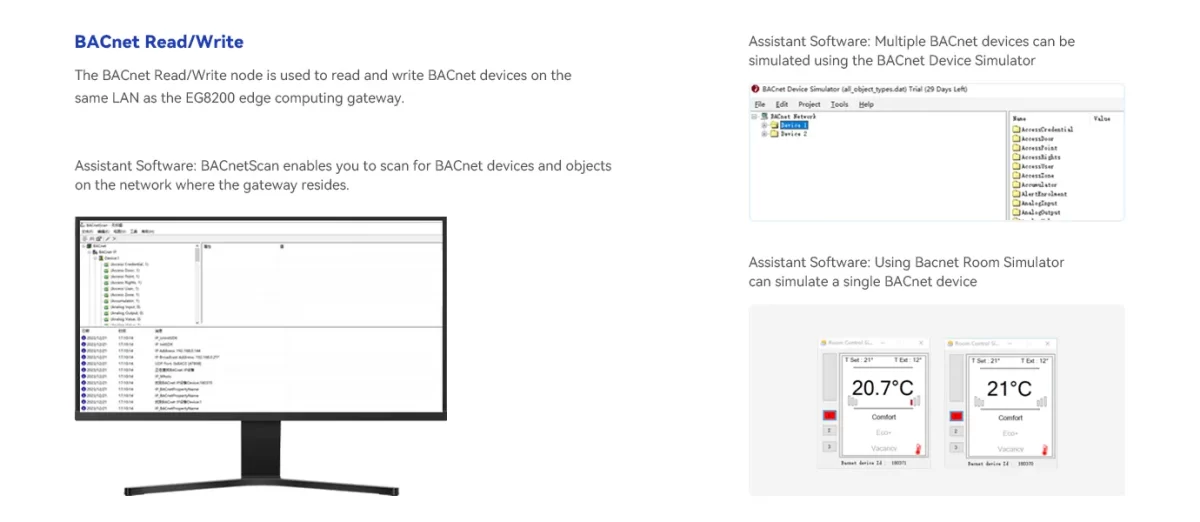

BACnet Read/Write

The BACnet Read/Write node is used to read and write BACnet devices on the same LAN as the EG8200 edge computing gateway.

Assistant Software: BACnetScan enables you to scan for BACnet devices and objects on the network where the gateway resides.

BACnetScan software interface

Assistant Software: Multiple BACnet devices can be simulated using the BACnet Device Simulator

BACnet Device Simulator software interface

Assistant Software: Using Bacnet Room Simulator can simulate a single BACnet device

BACnet Room Simulator software interface

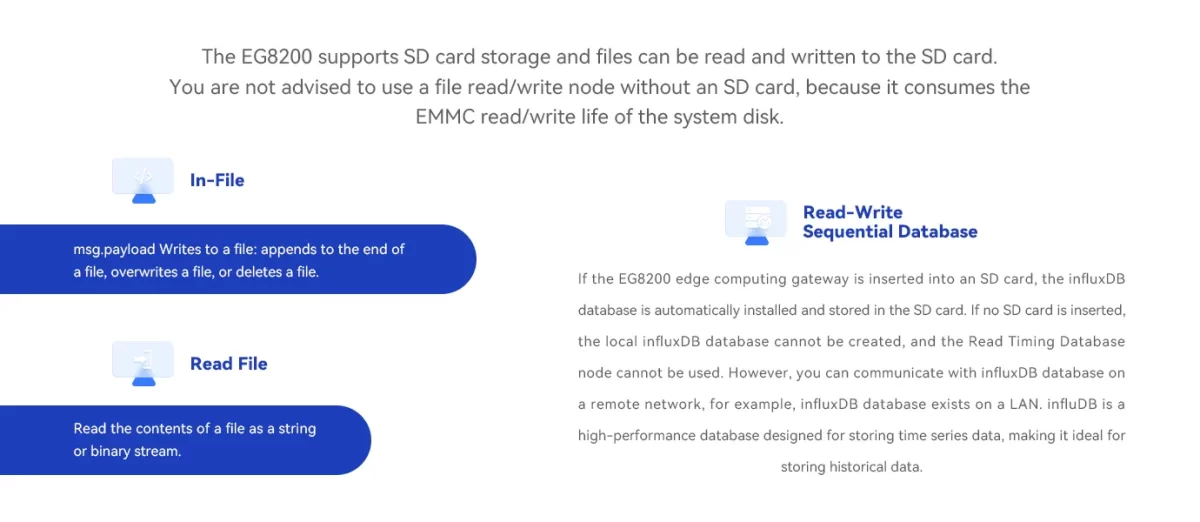

The EG8200 supports SD card storage and files can be read and written to the SD card.
You are not advised to use a file read/write node without an SD card, because it consumes the eMMC read/write life of the system disk.

In-File

msg.payload Writes to a file: appends to the end of a file, overwrites a file, or deletes a file.

Read File

Read the contents of a file as a string or binary stream.

Read-Write
Sequential Database

If the EG8200 edge computing gateway is inserted into an SD card, the InfluxDB database is automatically installed and stored in the SD card. If no SD card is inserted, the local InfluxDB database cannot be created, and the Read Timing Database node cannot be used. However, you can communicate with InfluxDB database on a remote network, for example, InfluxDB database exists on a LAN. InfluxDB is a high-performance database designed for storing time series data, making it ideal for storing historical data.

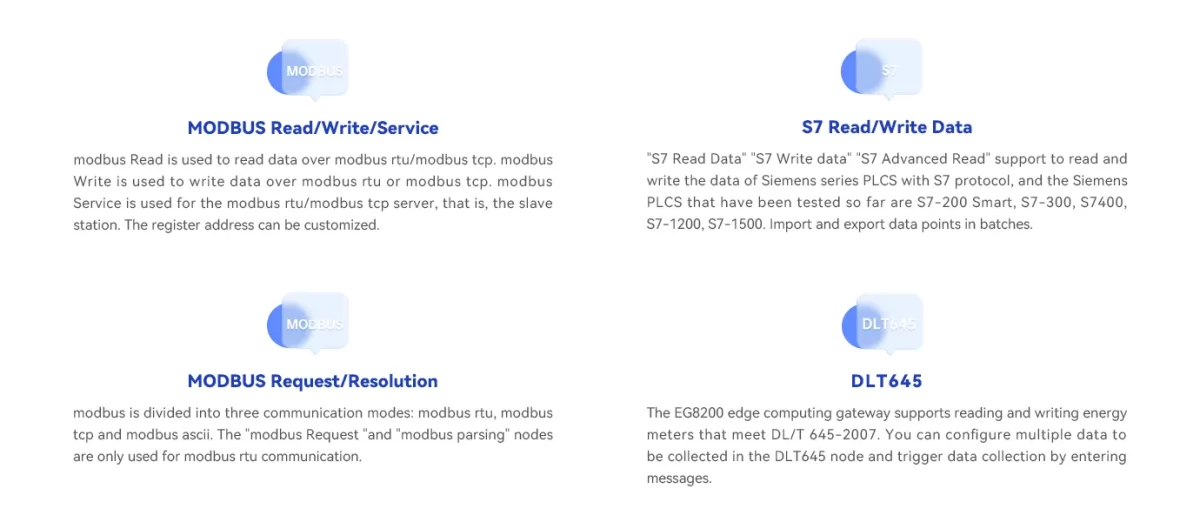

MODBUS

MODBUS Read/Write/Service

Modbus Read is used to read data over Modbus RTU/Modbus TCP. Modbus Write is used to write data over Modbus RTU or Modbus TCP. Modbus Service is used for the Modbus RTU/Modbus TCP server, that is, the slave station. The register address can be customized.

S7

S7 Read/Write Data

“S7 Read Data” “S7 Write data” “S7 Advanced Read” support to read and write the data of Siemens series PLCs with S7 protocol, and the Siemens PLCs that have been tested so far are S7-200 Smart, S7-300, S7-400, S7-1200, S7-1500. Import and export data points in batches.

MODBUS

MODBUS Request/Resolution

Modbus is divided into three communication modes: Modbus RTU, Modbus TCP and Modbus ASCII. The “Modbus Request” and “Modbus parsing” nodes are only used for Modbus RTU communication.

DLT645

DLT645

The EG8200 edge computing gateway supports reading and writing energy meters that meet DL/T 645-2007. You can configure multiple data to be collected in the DLT645 node and trigger data collection by entering messages.
