T100 Network Wizard – Remote Networking Device with NAT Traversal

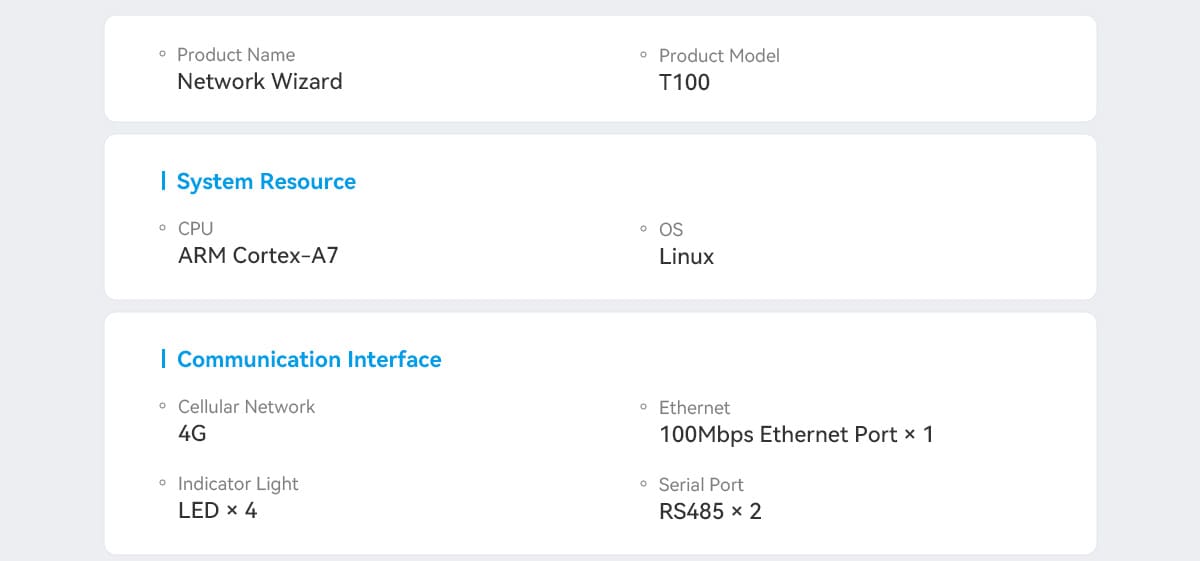

Core Specifications

  • Processor: ARM A7 processor

  • Operating System: Ubuntu

  • Security Protocol: AES-GCM encryption

  • Interfaces: 4G / 100 Mbps Ethernet × 1 / RS485 × 2

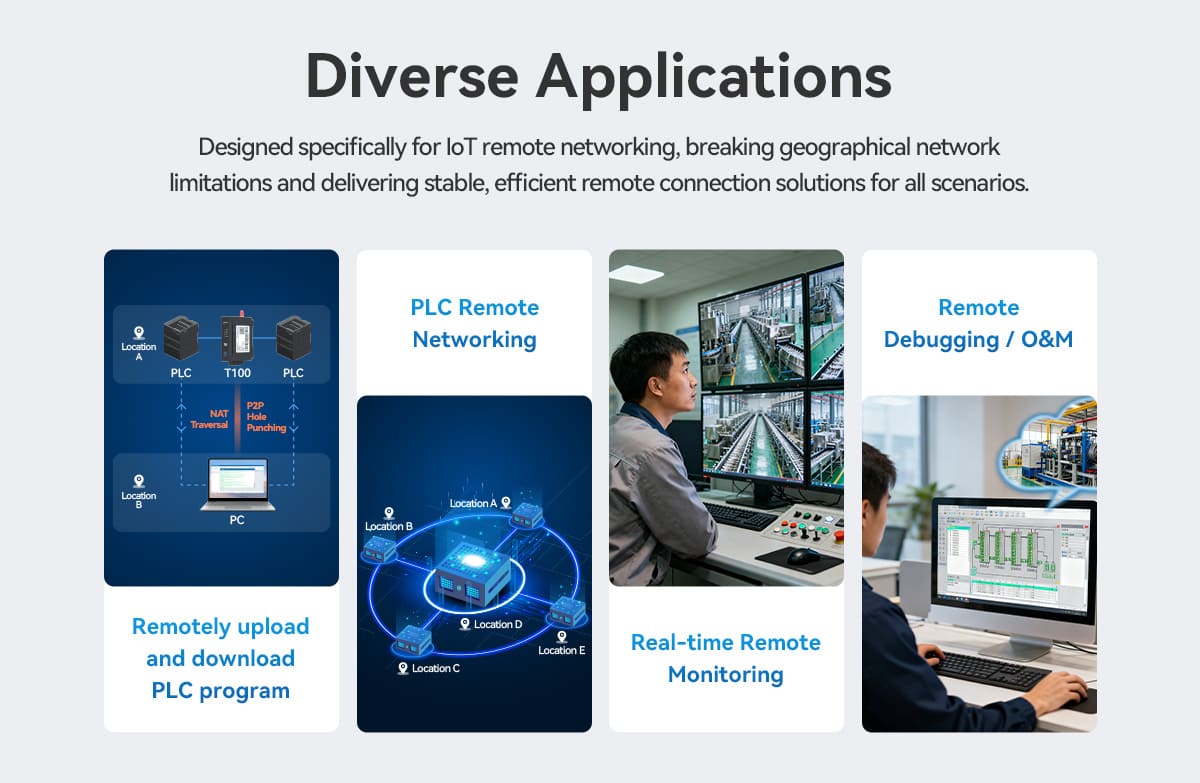

Applications

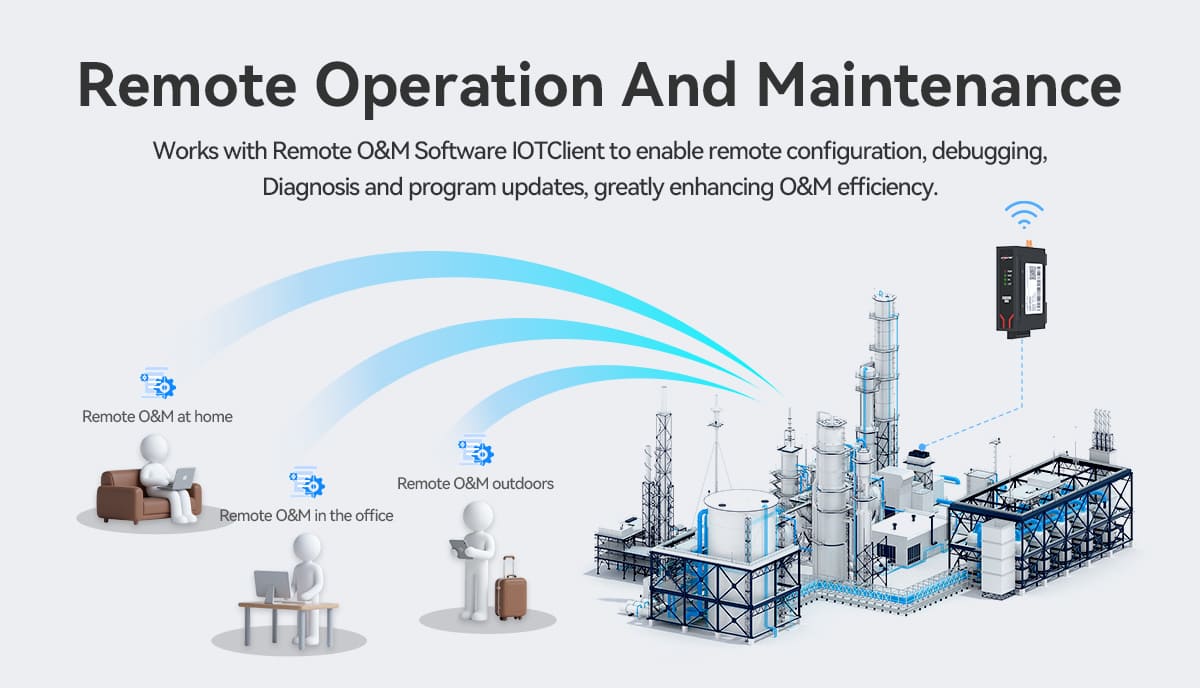

  • Remote Operation and Maintenance of Ethernet or serial devices across multiple sites.

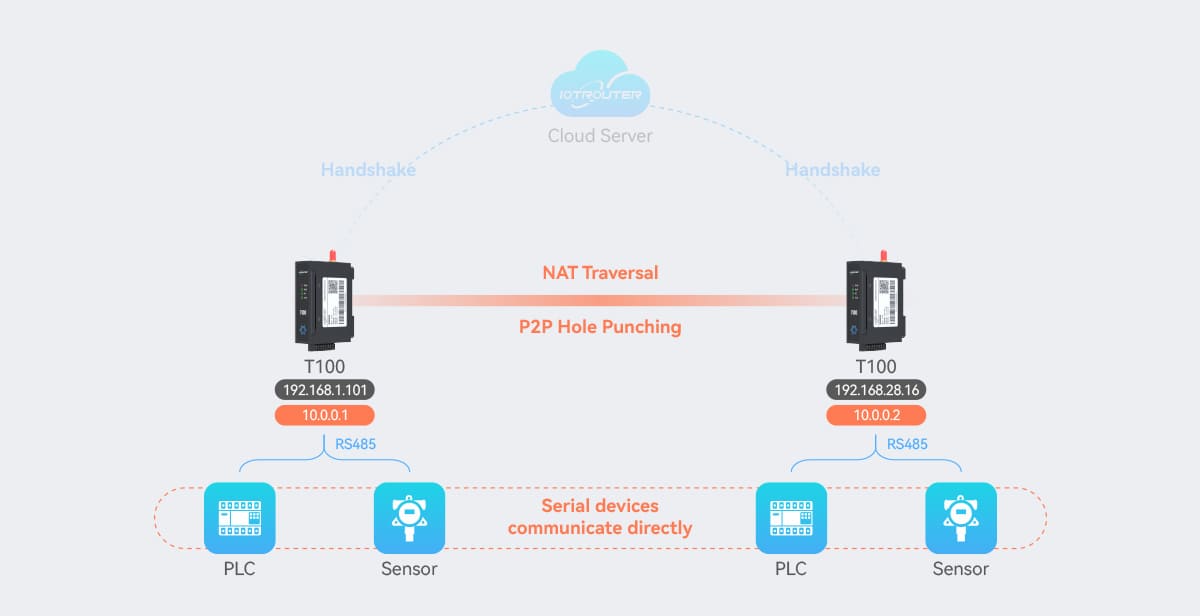

  • Cross-Site Industrial Networking, enabling seamless communication between gateways and controllers located in different networks.

Categories: ,

Description

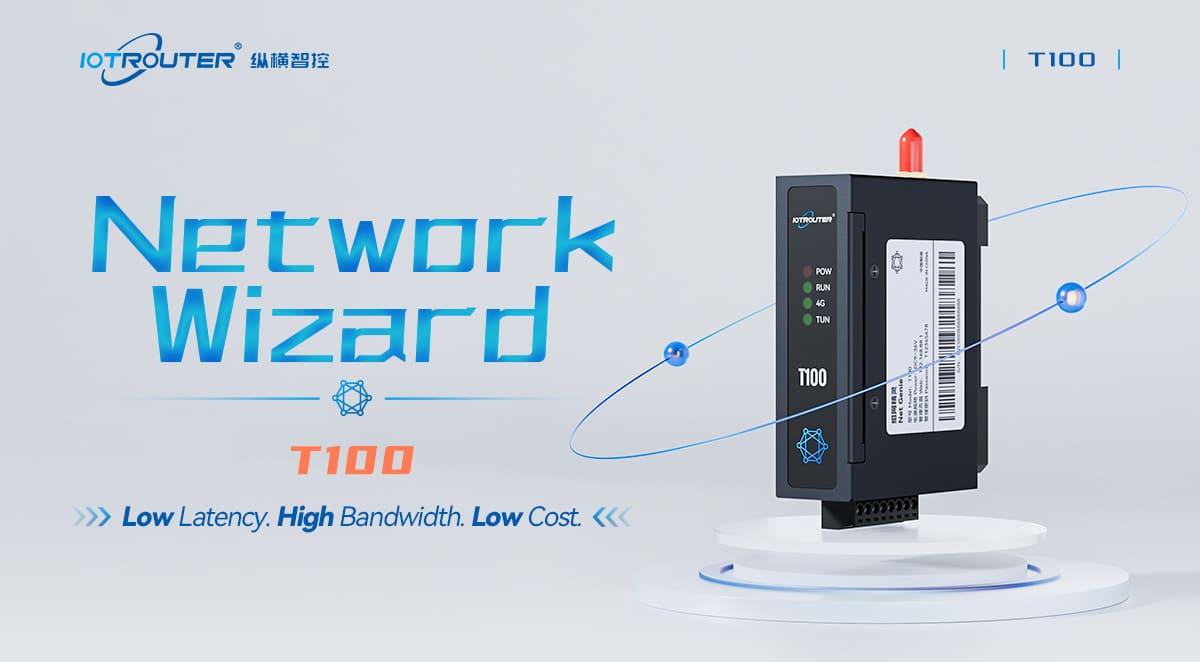

The T100 Network Wizard is an innovative remote networking device with NAT traversal launched by IOTRouter.

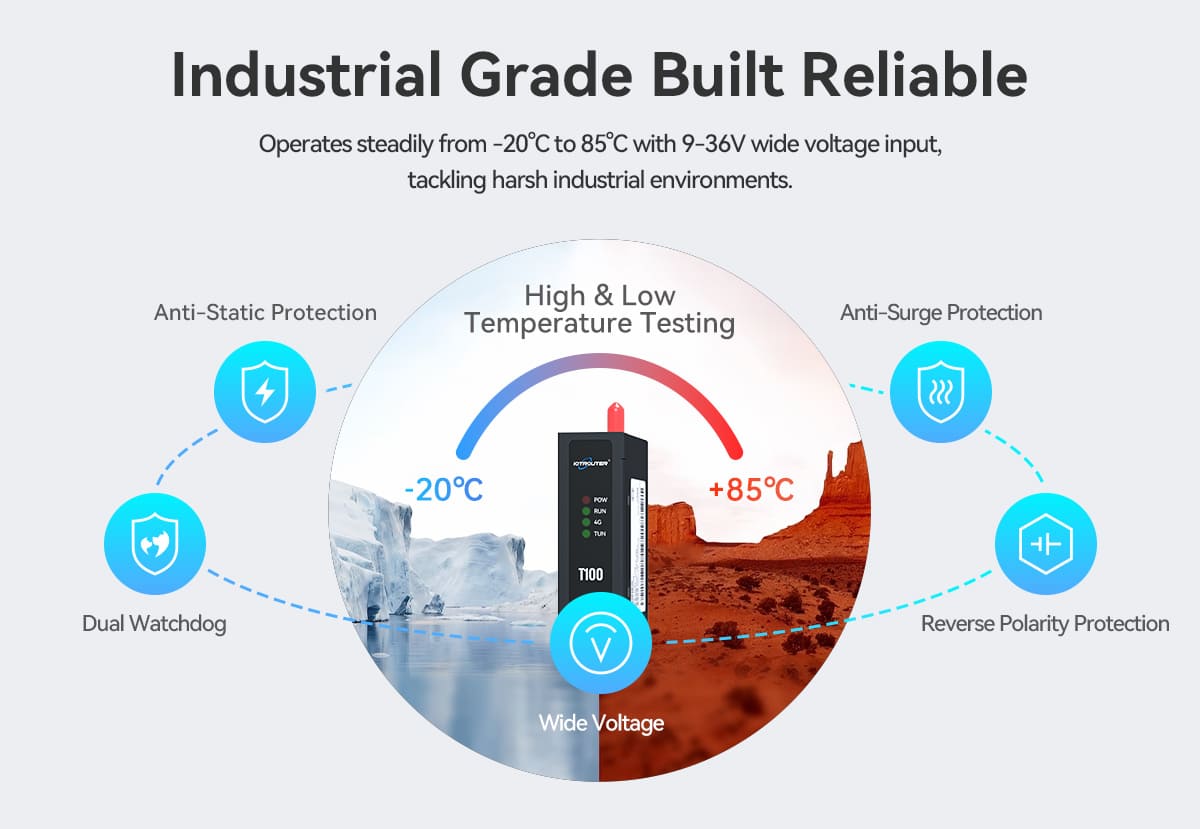

It integrates an ARM A7 processor, 1 WAN/LAN port, dual RS485 interfaces, and operates reliably across 9–36V power input and -20 to 85°C environments.

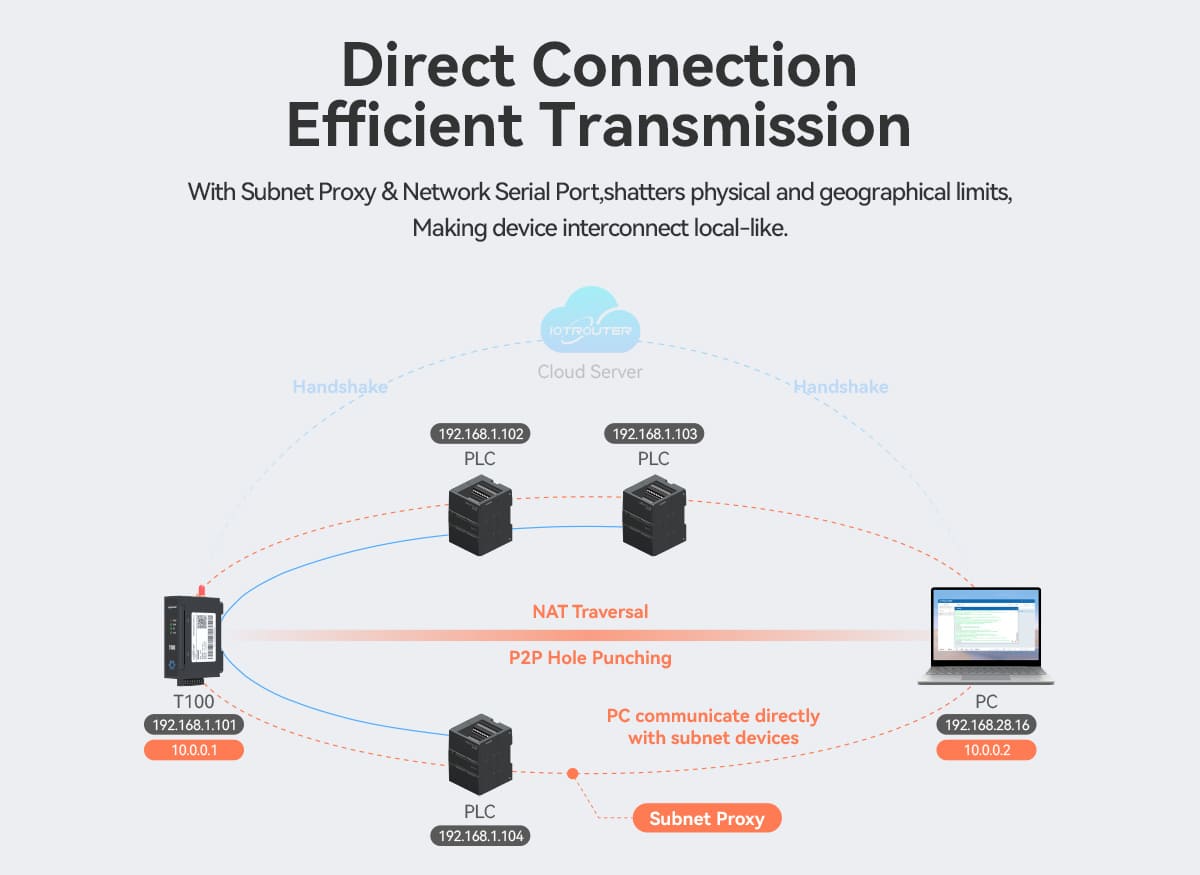

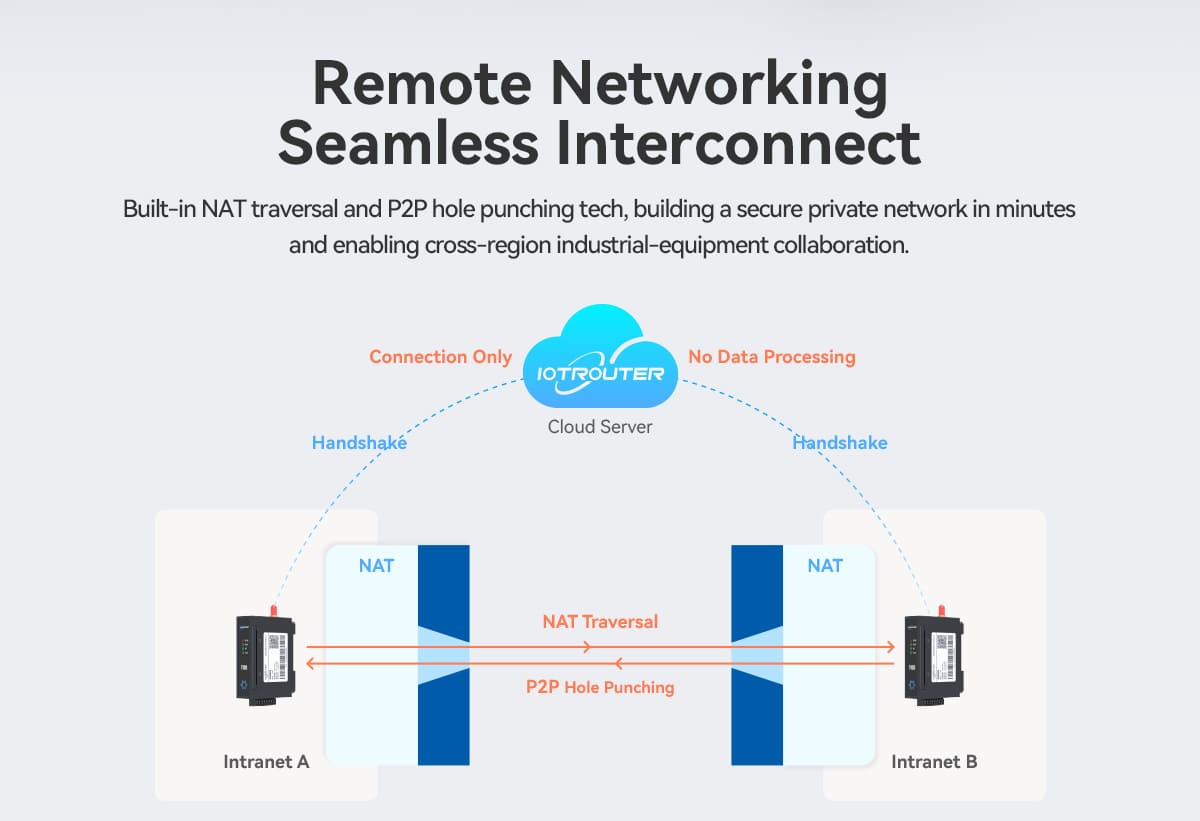

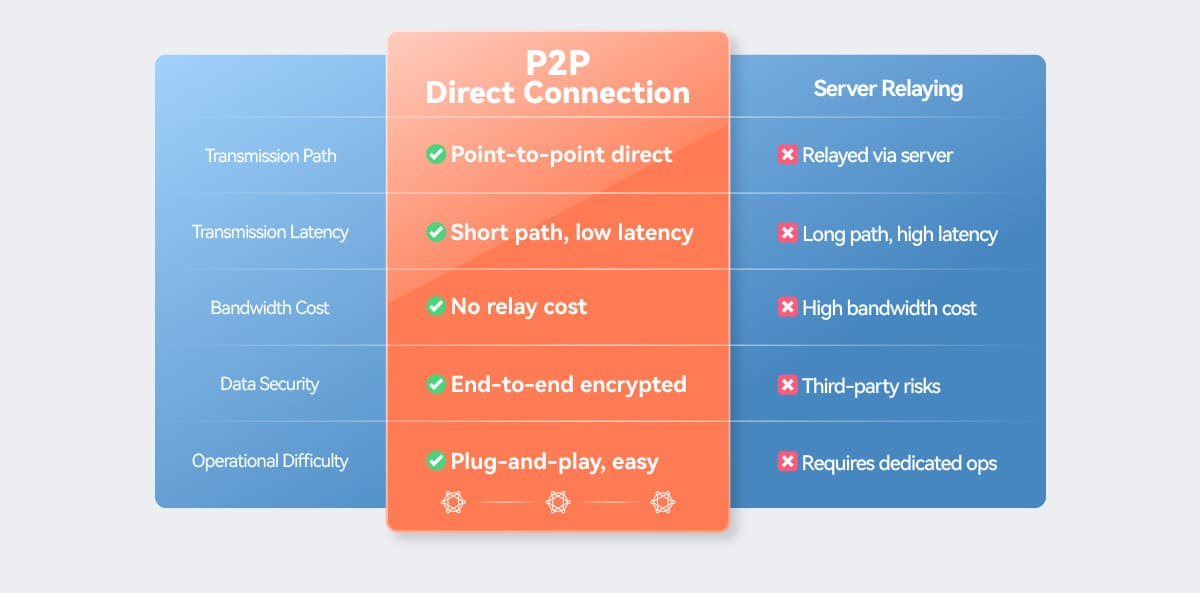

The core advantage of this product focuses on efficient and secure networking: No public IP is required for intranet penetration, while P2P direct connection eliminates cloud bandwidth reliance for larger traffic.

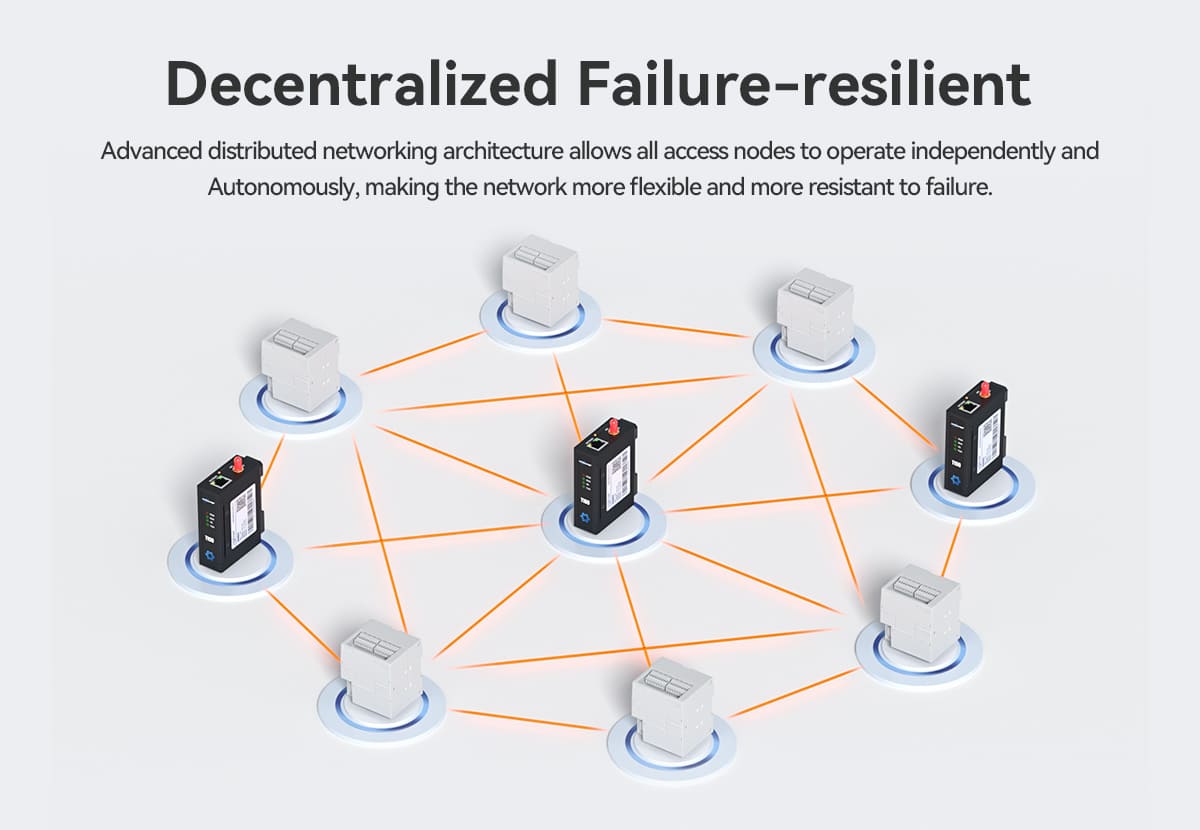

Its decentralized architecture with equal, independent nodes enables independent data forwarding for networking.

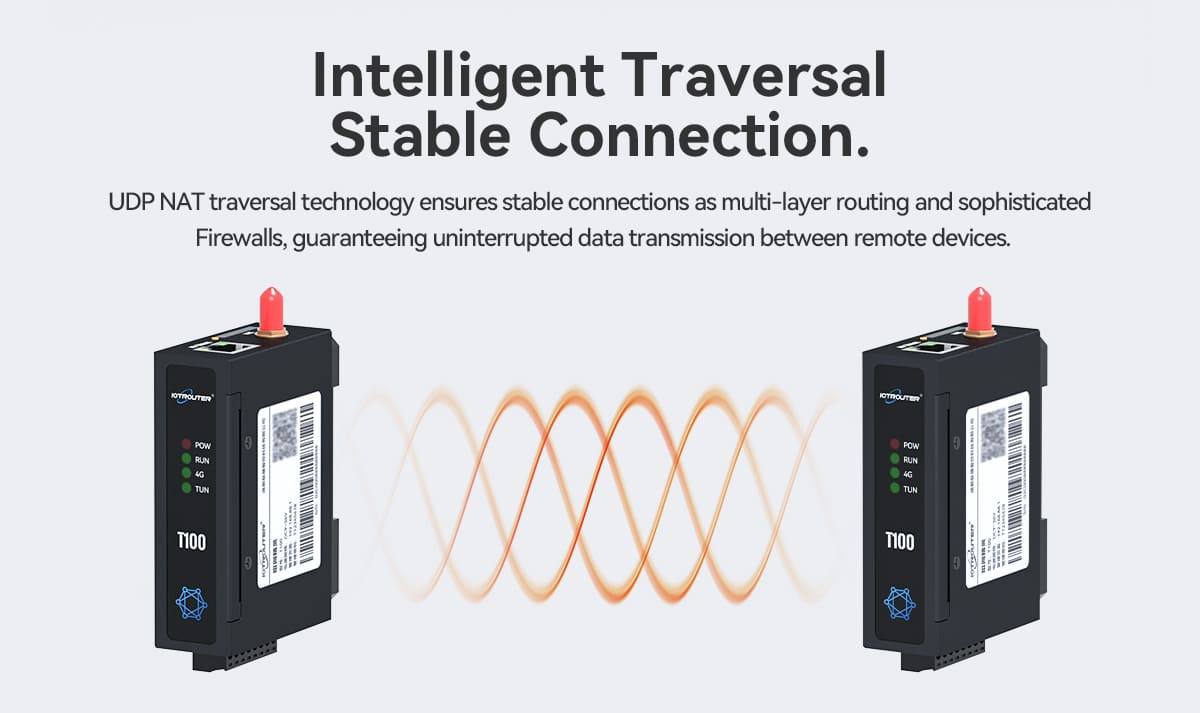

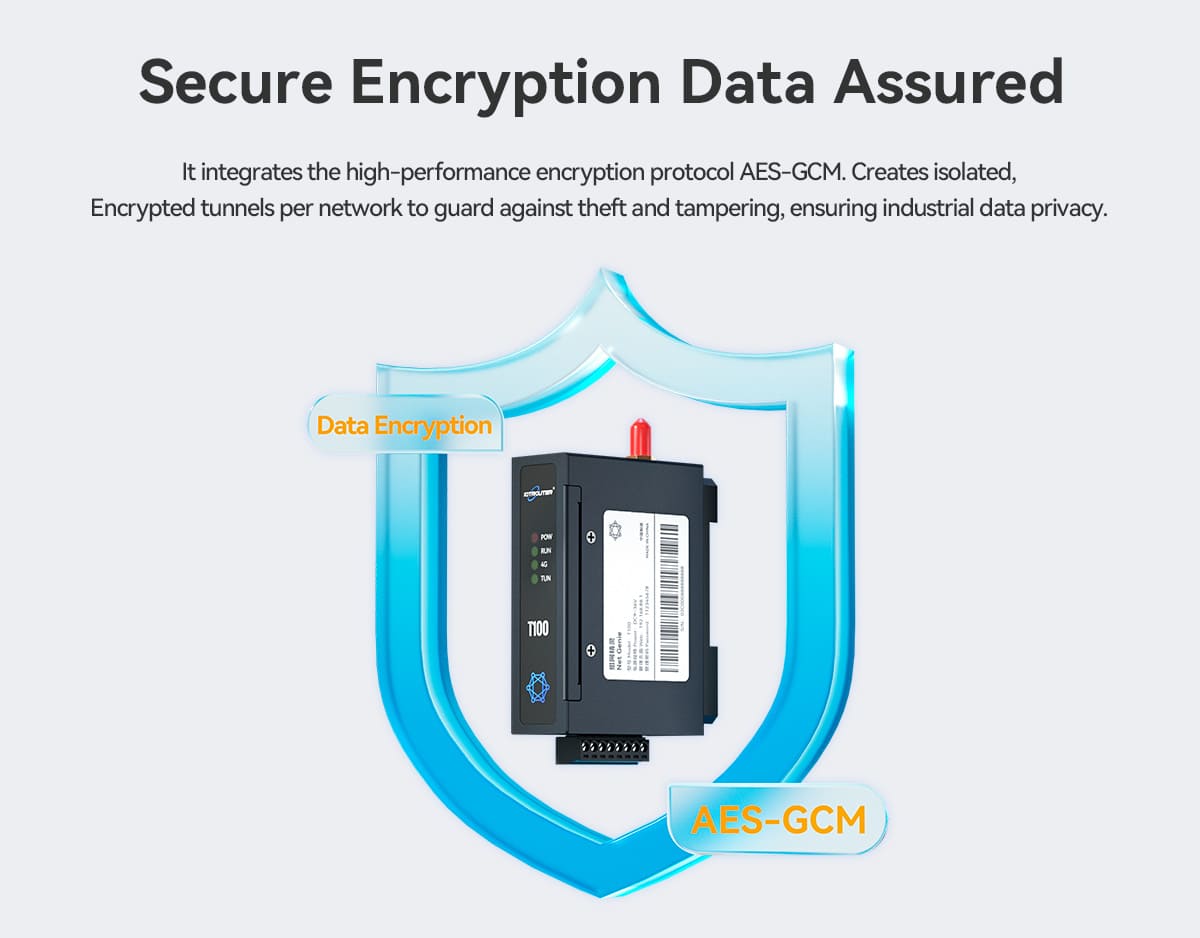

Combined with AES-GCM encryption, it supports UDP NAT traversal for stable connections in complex networks, thus fully safeguarding data transmission security and flexibly meeting diverse IoT networking needs.

T100 Network Wizard – Remote Networking Device with NAT Traversal_01 T100 Network Wizard – Remote Networking Device with NAT Traversal_02 T100 Network Wizard – Remote Networking Device with NAT Traversal_03 T100 Network Wizard – Remote Networking Device with NAT Traversal_04 T100 Network Wizard – Remote Networking Device with NAT Traversal_05 T100 Network Wizard – Remote Networking Device with NAT Traversal_06 T100 Network Wizard – Remote Networking Device with NAT Traversal_07 T100 Network Wizard – Remote Networking Device with NAT Traversal_08 T100 Network Wizard – Remote Networking Device with NAT Traversal_09 T100 Network Wizard – Remote Networking Device with NAT Traversal_10 T100 Network Wizard – Remote Networking Device with NAT Traversal_11 T100 Network Wizard – Remote Networking Device with NAT Traversal_12 T100 Network Wizard – Remote Networking Device with NAT Traversal_13

Specification

CategoryItemSpecification / Description
Core ConfigurationProcessorARM A7 Processor
Operating SystemUbuntu
4G ModuleModule BrandQuectel – Cat.1 (4G)
Supported BandsLTE-FDD: B1/B3/B5/B8;
LTE-TDD: B34/B38/B39/B40/B41
Transmit PowerLTE-FDD: Class 3 (23 dBm ±2 dB);
LTE-TDD: Class 3 (23 dBm ±2 dB)
Bandwidth (Theoretical Maximum Rate*)LTE-FDD: Max 10 Mbps (DL) / Max 5 Mbps (UL); LTE-TDD: Max 8.96 Mbps (DL) / Max 3.1 Mbps (UL)
Ethernet PortWAN/LAN1 × 10/100 Mbps Auto MDI/MDIX
Port Quantity2 Channels
TerminalA, B
Baud Rate2400–921600 bps
RS485 InterfaceData Bits7, 8
Stop Bits1, 2
ParityNONE (No parity), EVEN, ODD
ProtectionESD and Surge Protection
RTCLocal ClockSupported
IndicatorsLEDs4 LEDs

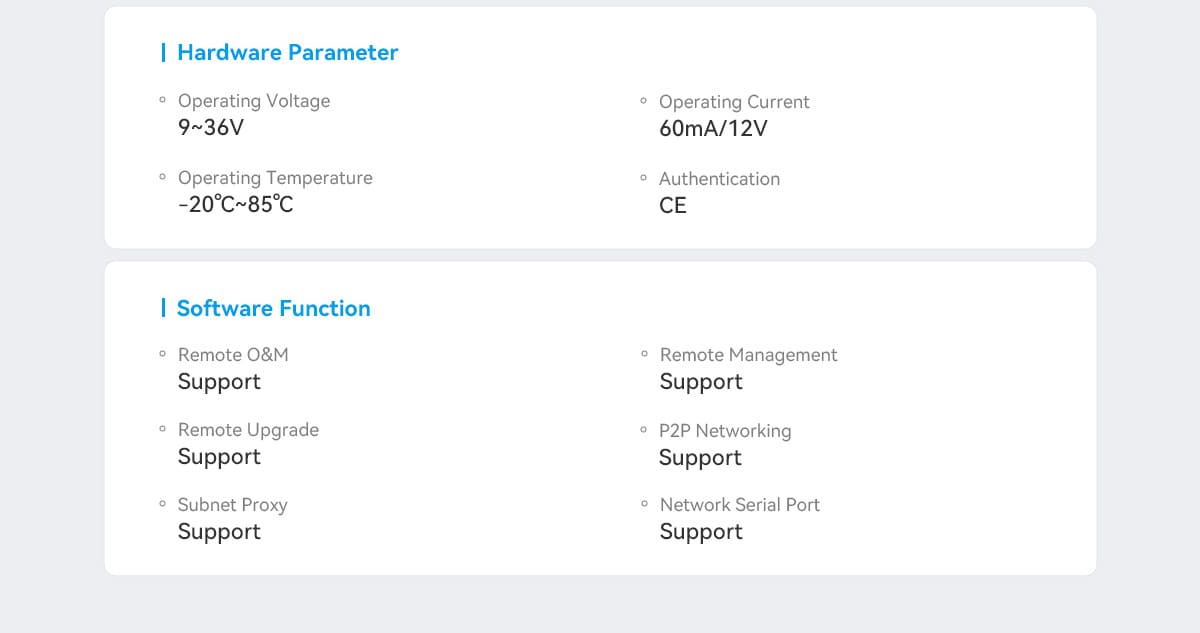

Electrical ParametersCertificationCE
Power Adapter12V / 2A
Operating Voltage9–36V
Operating Current60mA @12V
Environmental ParametersOperating Temperature-20°C ~ +85°C
Storage Temperature-20°C ~ +85°C
Operating Humidity0–95% RH (non-condensing)
Storage Humidity0–95% RH (non-condensing)
Mechanical ParametersDimensions83.8 × 58.5 × 25 mm
Enclosure MaterialGalvanized Steel
Mounting MethodDIN Rail
Cooling MethodPassive Cooling
Reset ButtonPress and hold for 10s to restore factory settings
EMC (Electromagnetic Compatibility)ESD (Electrostatic Discharge)Air Discharge: Level 3 ±8kV; Contact Discharge: Level 2 ±4kV
SurgeLevel 2 ±1kV
EFT (Electrical Fast Transient)Level 2 ±1kV
Software FunctionsRemote Operation & MaintenanceSupported
Remote ManagementSupported
Remote UpgradeSupported
P2P NetworkingSupported

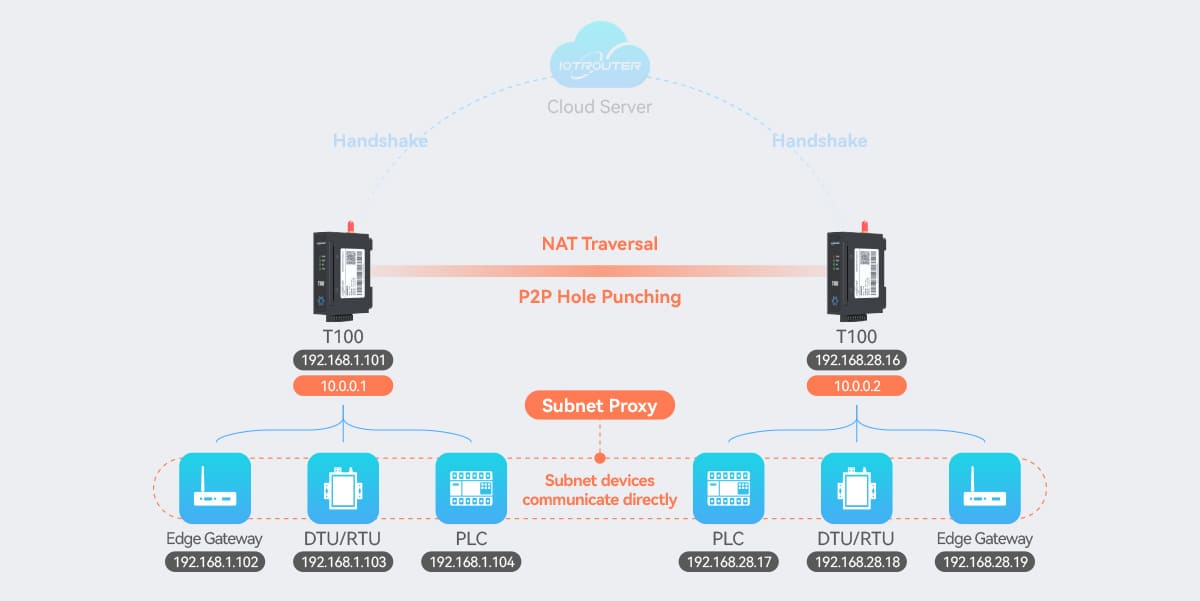

Subnet ProxySupported

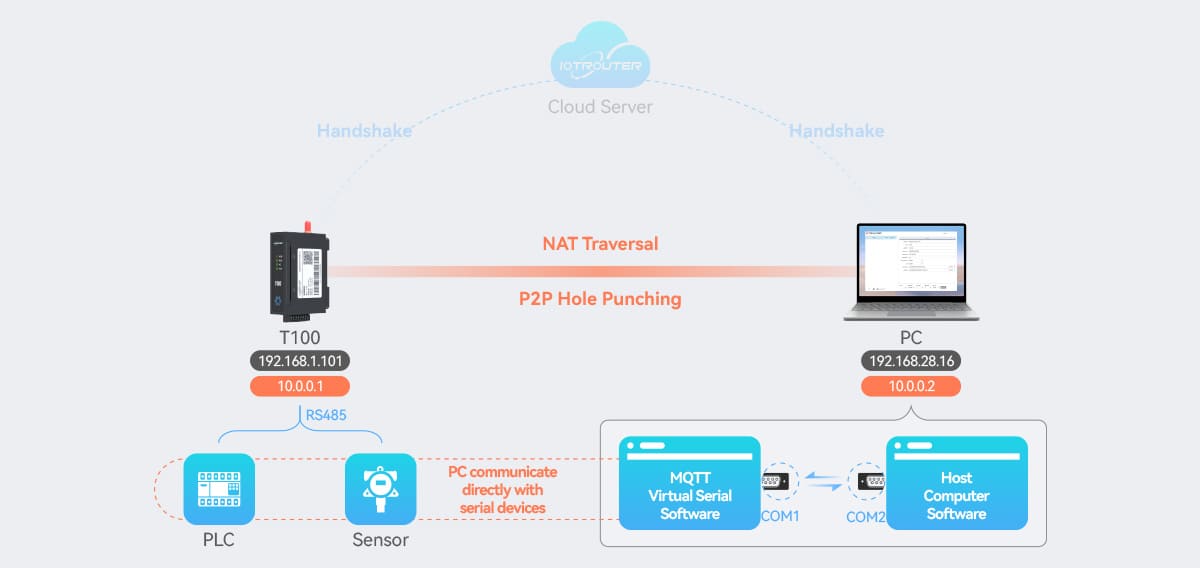

Network Serial PortSupported
