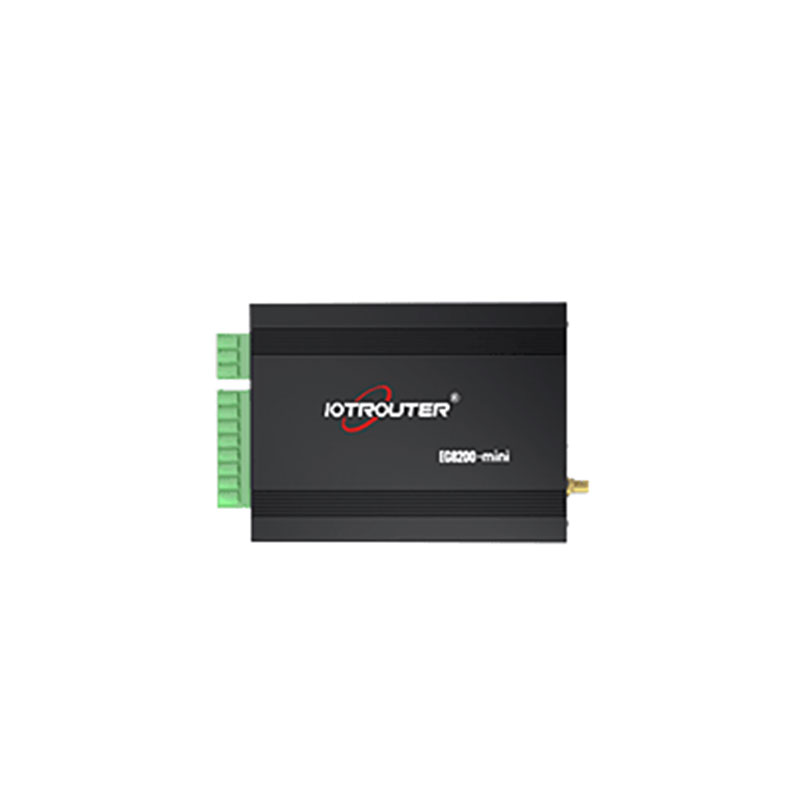

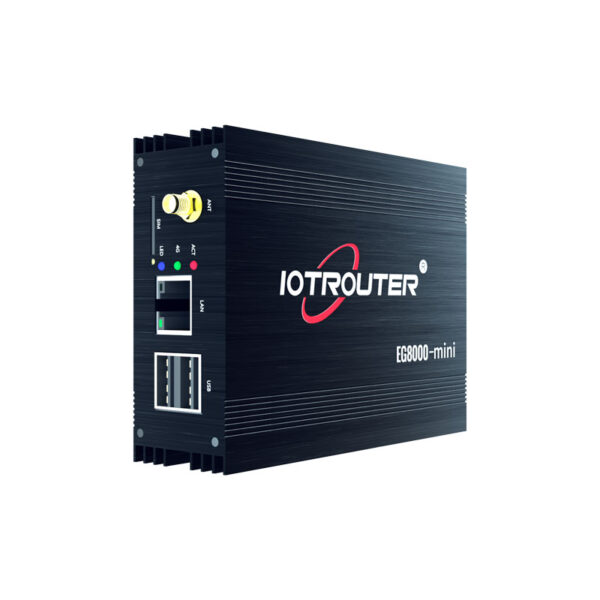

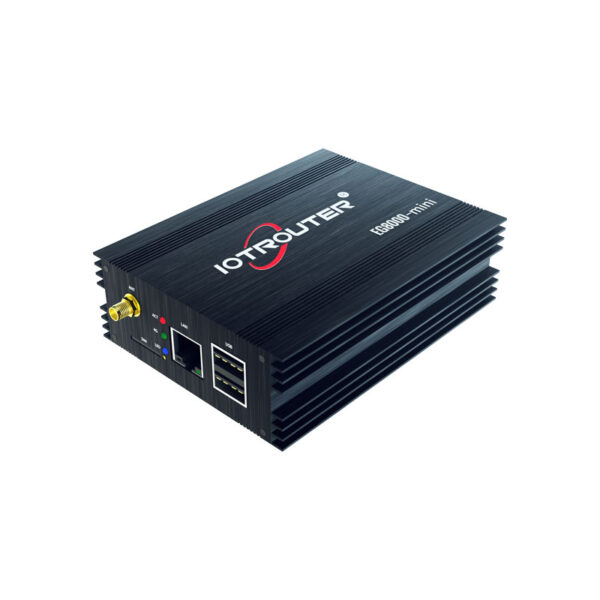

EG8000Mini Small Size Edge Computing Gateway
EG8000Mini series products are edge computing gateways launched by IOTRouter. With its rich hardware interfaces, drag-and-drop programming method, Zero Code design concept, convenient remote management and other characteristics, It can quickly, flexibly, accurately and efficiently respond to various IoT industry needs.
More details…
Datasheet
| Hardware | CPU | ARM Cortex-A7 |
| Storage | 512M + 8G |
| RTC | Real Time Clock |
| Wireless | LTE Cat4 |
| 5G (Option) |
| LAN | 1*100/M Support DHCP Server |
| USB | 2*USB |
| RS485 | 2*RS485 |
| RS232 | 1*RS232 |
| LED | Support DO/DI status indication (customizable) |
| Electrical Parameters | Rated Voltage | DC12V, DC9~28V(Working Range) |
| Rated Power | 5W |

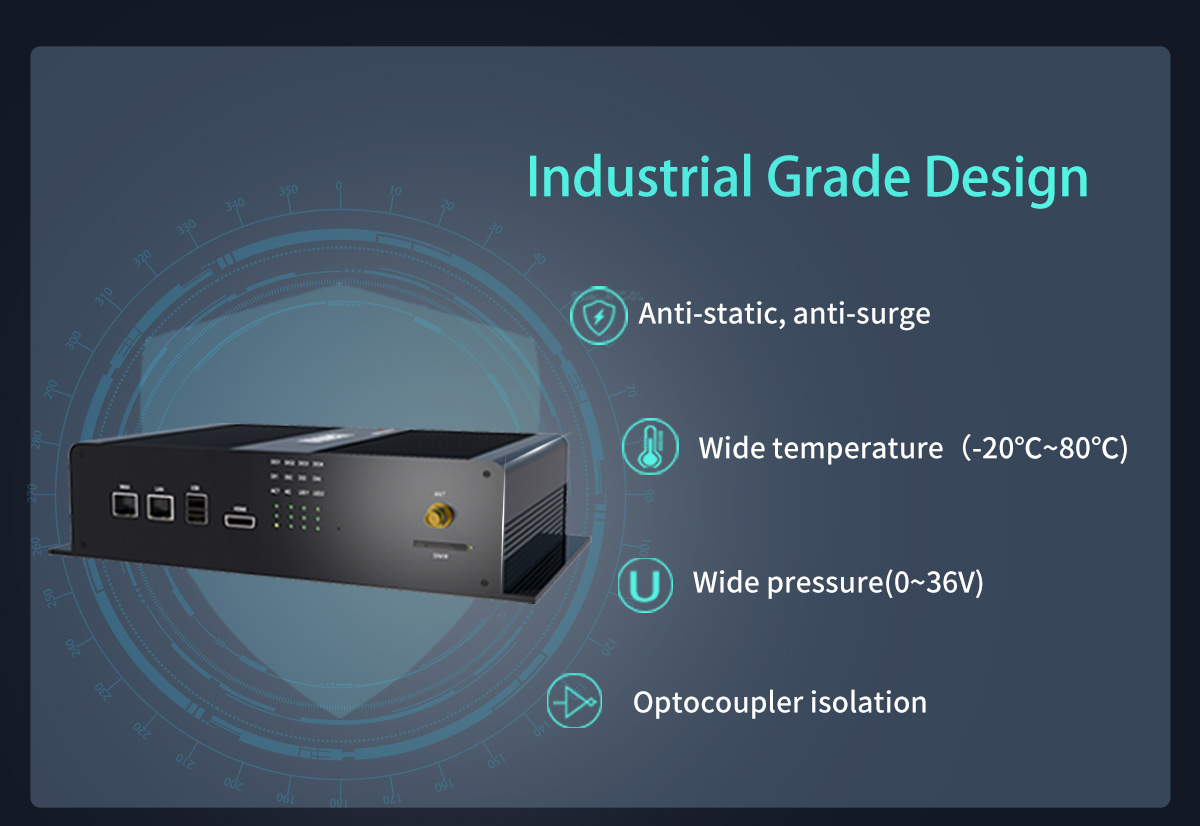

| Power Protection | Anti-static, anti-surge, anti-reverse |
| Certi?cation | CE/ROHS |
| Environmental Parameters | Operating Temperature | -20~80℃ |
| Storage Temperature | -20~85℃ |
| Environment Humidity | 10-90%RH (non-condensing) |
| Cooling Method | Heat sink / dissipation silicone |
| Mechanical Parameters | Size | 118*90*35mm |
| Weight | <1kg |
| Material | Zinc Alloy |
| Software Parameters | Ops | Support remote configuration/upgrade/management |
| VPN | Support intranet penetration
support PLC remote upload and download (network port) |

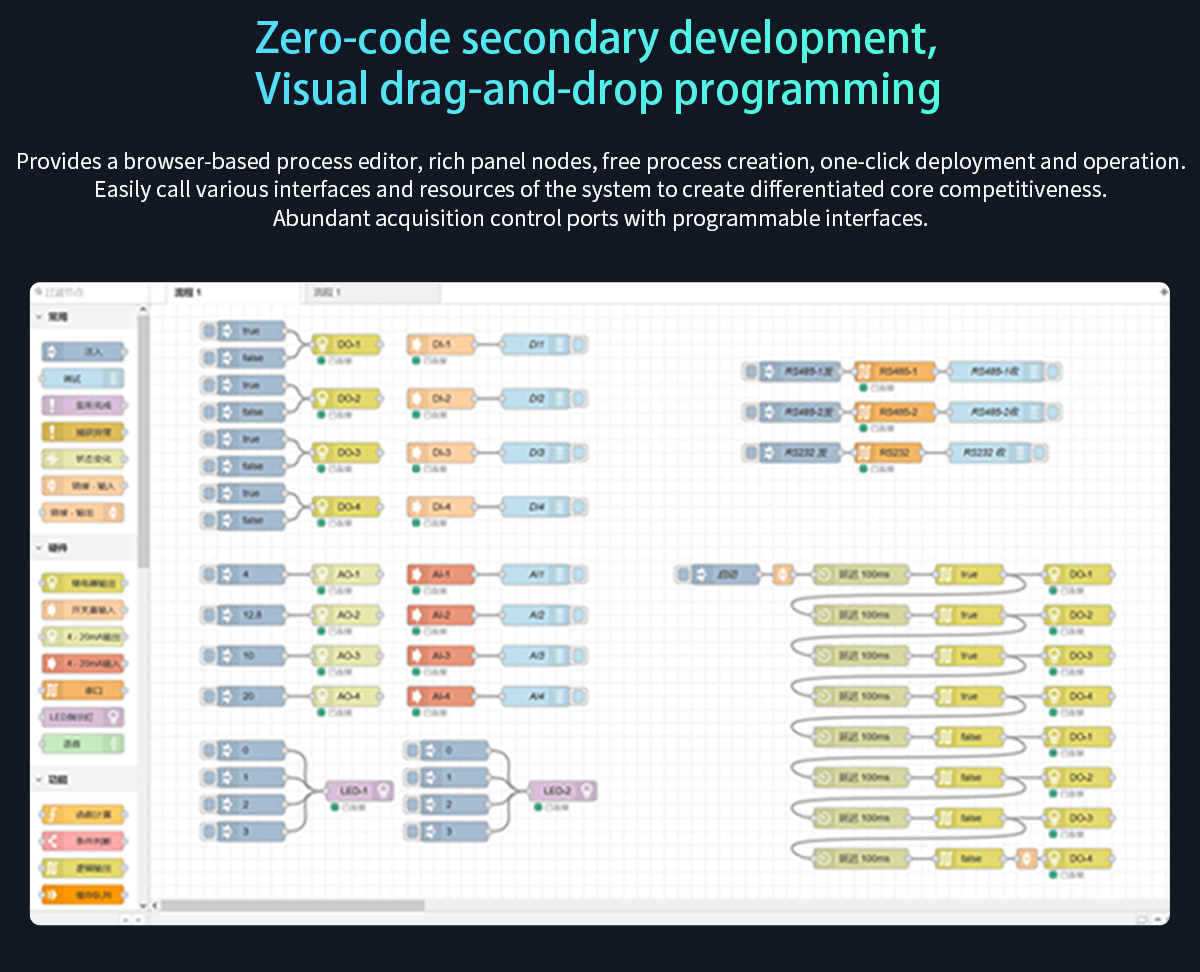

| Edge Computing | Support drag and drop programming Support zero-code development Support JavaScript development |

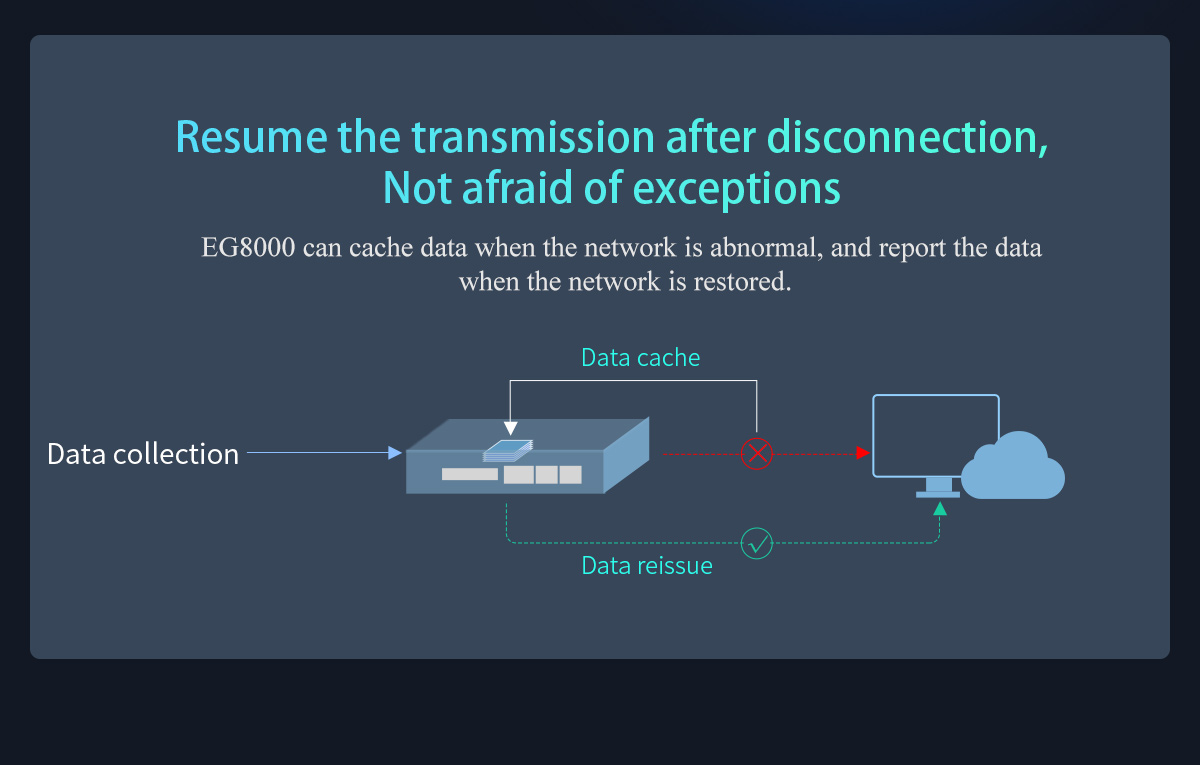

| Data Storage | Support TSDB(Time Series Databases) |
| Industrial Agreement | Support multiple industrial protocols (Developing) |

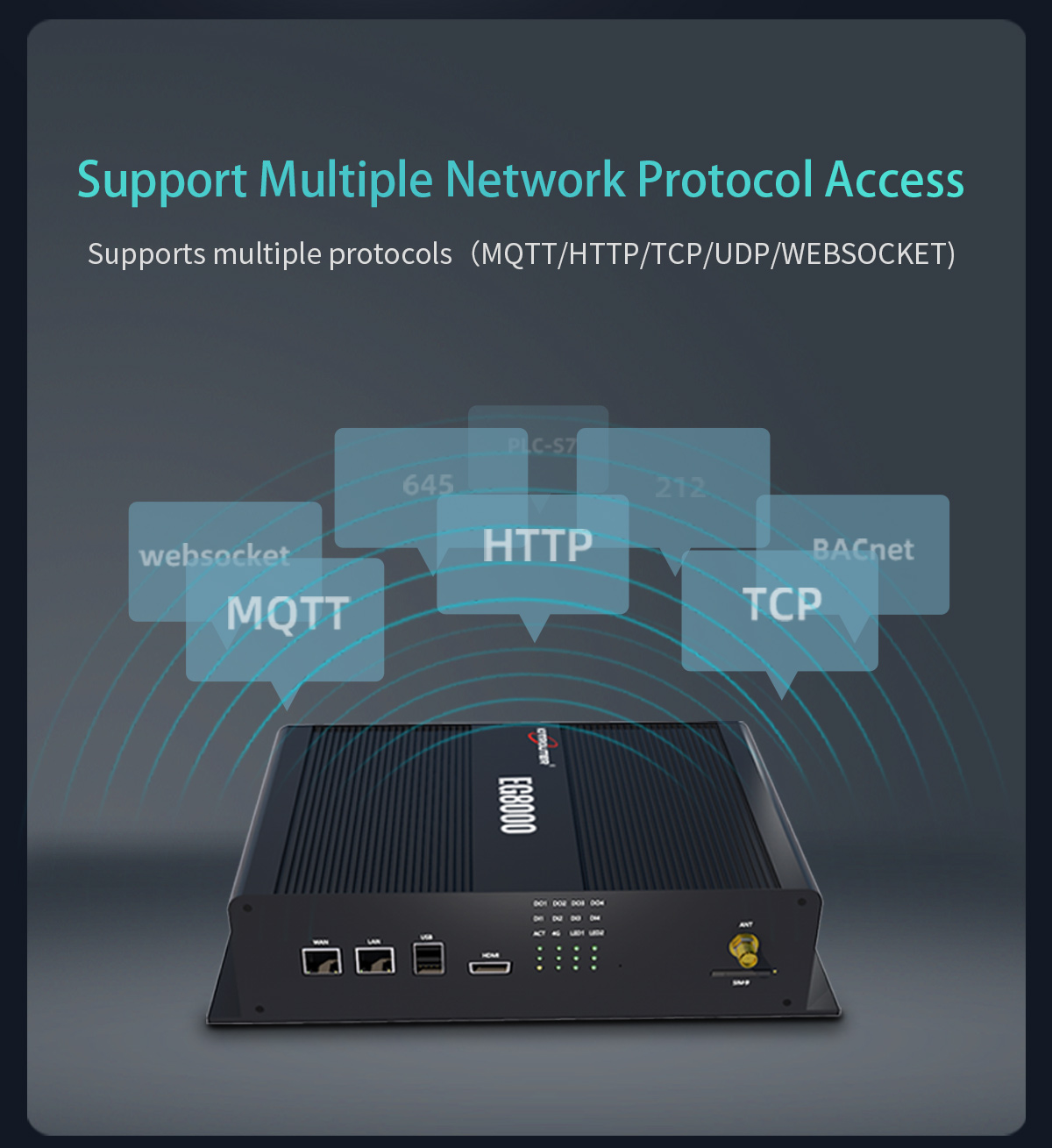

| Network Protocol | MQTT/HTTP/TCP/UDP/WEBSOCKET |
4G bands
EV Series and EG8100/ G8000/ EG8000mini Edge Computing Gateway 4G bands
| Module Tyle | Frequency Bands |
| EC200A-CN | LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
WCDMA: B1/B5/B8
GSM:B3/B8 |
| EC25-EUX | LTE FDD: B1/B3/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8 |
| EC25-AF | LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5 |
| EC25-AU | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8 |
| EG25-G | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/
B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8 |
