Today, let’s talk about how to interface with Siemens PLC using the PPI Protocol.
The article we discussed before:
How to interface with Omron PLC via EtherNet/IP protocol
How to interface with Omron PLC via Hostlink protocol
How to interface with Omron PLC via Fins protocol
How to interface with Mitsubishi PLC using the MC-1E protocol
1. Подключение оборудования
Compatible PLC: S7-200
The Siemens S7-200 communicates via the PPI protocol. This section focuses on how the EG8200Mini reads data from the Siemens S7-200 PLC using the PPI protocol.

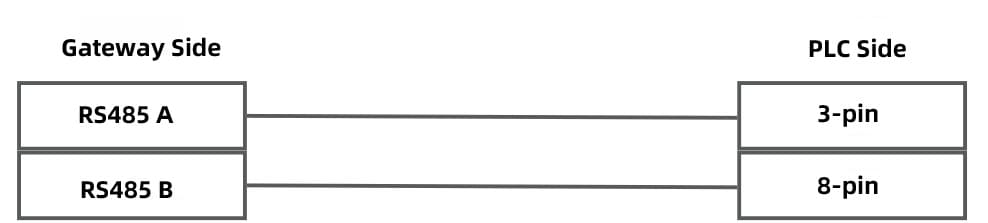

Before communication between the EG8200Mini and the Siemens S7-200, the wiring must be correct. The PPI protocol uses RS485 communication. The specific wiring is as follows: Pin 3 connects to A, and Pin 8 connects to B.

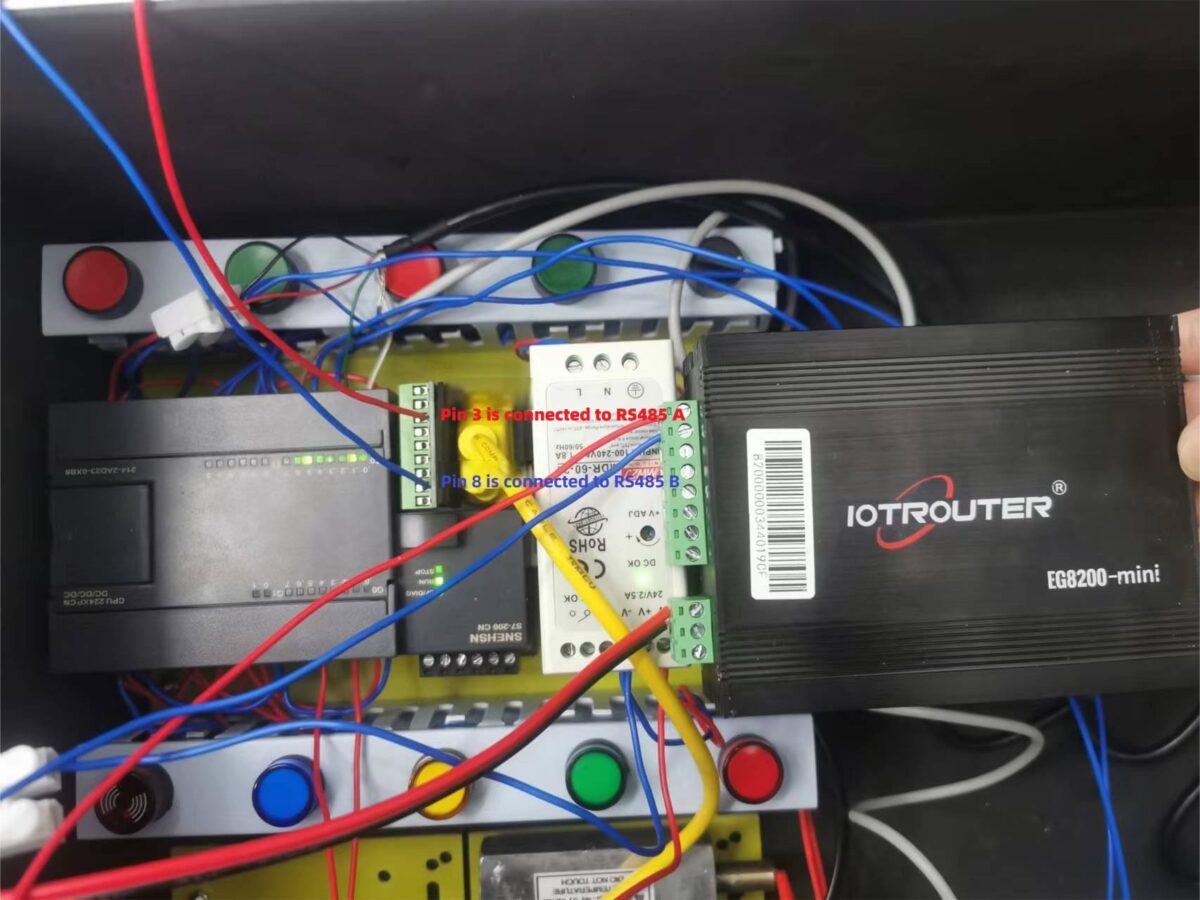

The actual wiring diagram is as follows: the red wire is RS485A connected to Pin 3 of the S7-200, and the blue wire is RS485B connected to Pin 8 of the S7-200.
2. PLC Serial Port Parameters
2.1. Open STEP7 Software

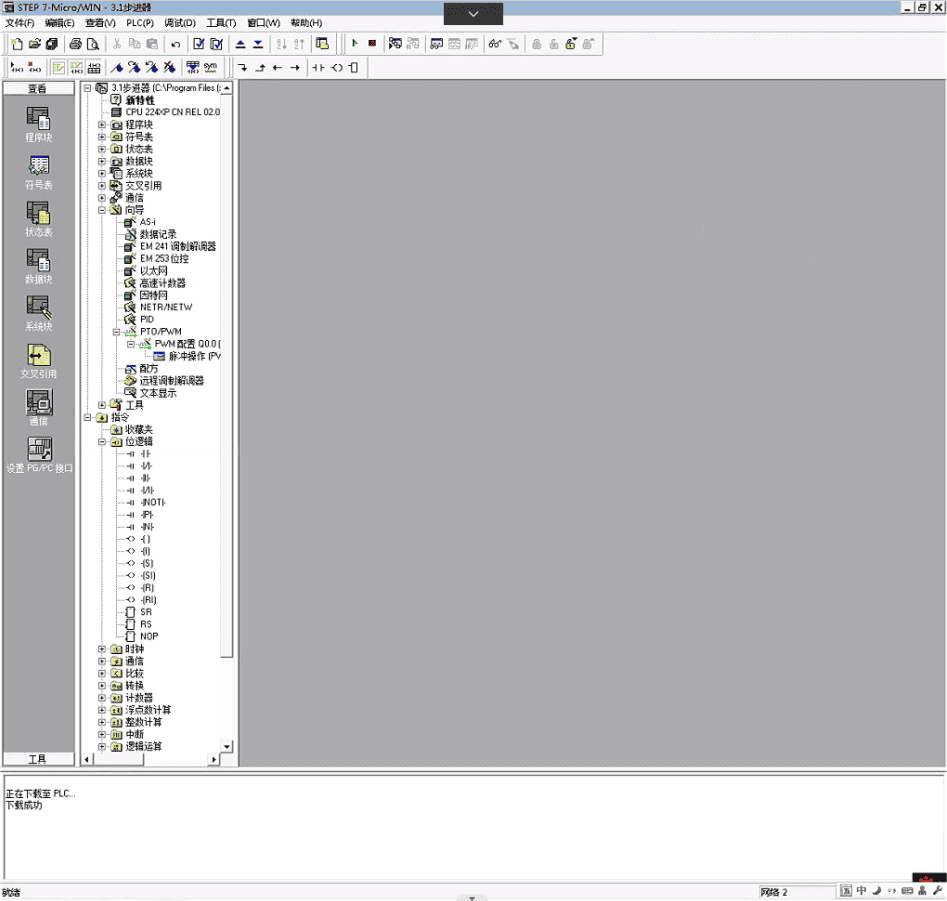

Open the STEP7 software.
2.2. View Communication Parameters

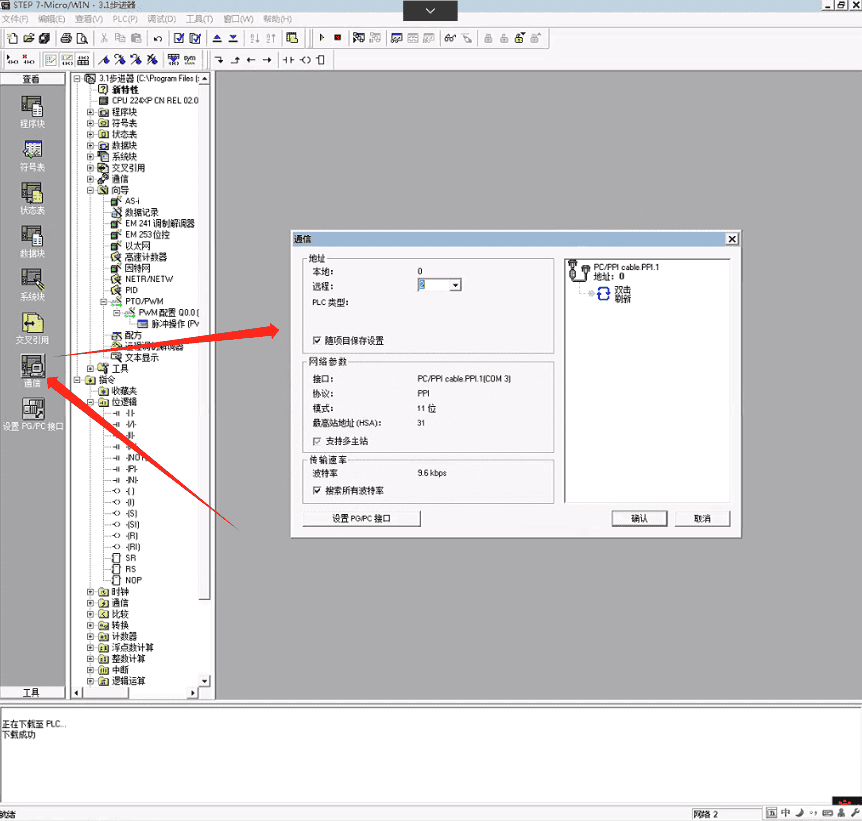

You can see that the station address is 2 and the baud rate is 9600. These parameters will be required later for gateway configuration.
3. Gateway Settings
3.1. Настройки подключения ПЛК

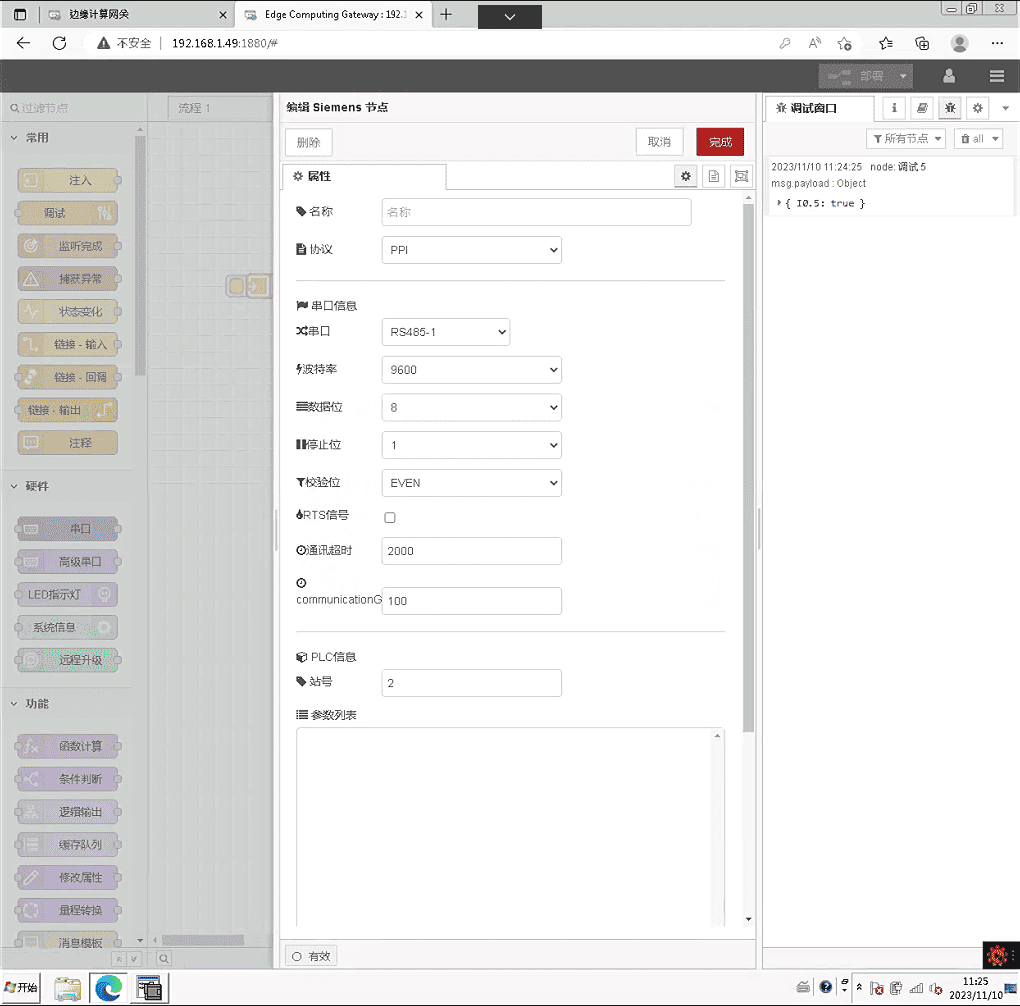

Drag a Siemens node from the left panel and double-click to open the settings page. Fill in the configuration according to the PLC serial parameters as follows:
Протокол: Select PPI
Serial Port: Select RS485-1 (choose according to actual hardware connection)
Baud Rate: 9600
Data Bits: 8
Stop Bits: 1
Parity: EVEN
Таймаут связи: 2000
Serial Frame Interval: 100 ms (adjust according to actual conditions; recommended 50–100 ms)
Station Address: 2
After completing the PLC connection settings, click Развернуть. The PLC status should display Ready.
3.2. Конфигурация точки данных
In general, you can fill in the data points to be read directly in the Siemens node parameter list. Once the data points are filled in, they will be read automatically according to the configured frequency.
In this example, an advanced method is used: reading PLC points via a function node. The advantage of this method is that the data points to be read can be dynamically modified.

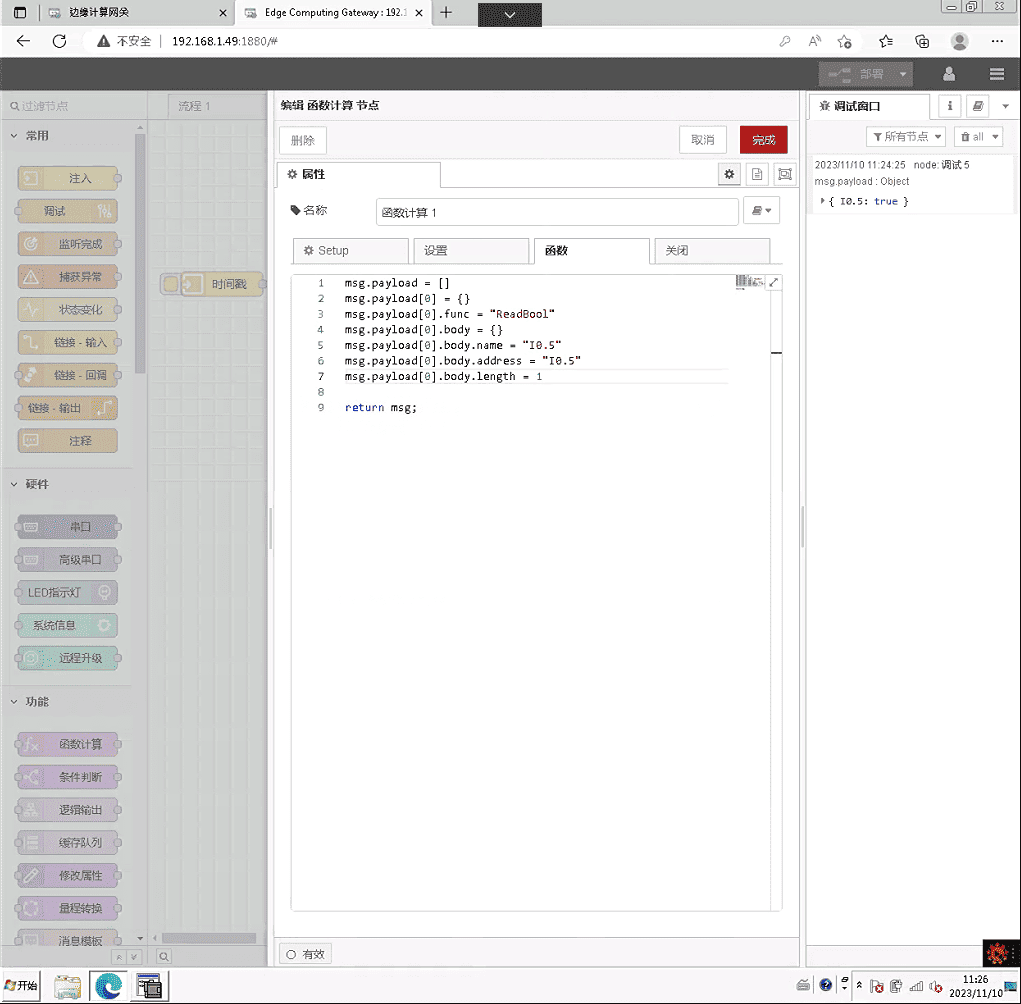

Drag a Function node and copy the following code:
The meaning of this code is: use the ReadBool method to read 1 Boolean value at address I0.5, and store the result in a variable named I0.5. The length parameter indicates how many consecutive addresses can be read at once. msg.payload is an array, so you can also read multiple different types of data at the same time.
All callable methods can be referred to in the node documentation:
This is a Yuque content card. Click the link to view:（You can use Google Chrome for translation）
https://iotrouter.yuque.com/zn3vdn/eg8000/hh3gq8an371h7xiw
3.3. Testing

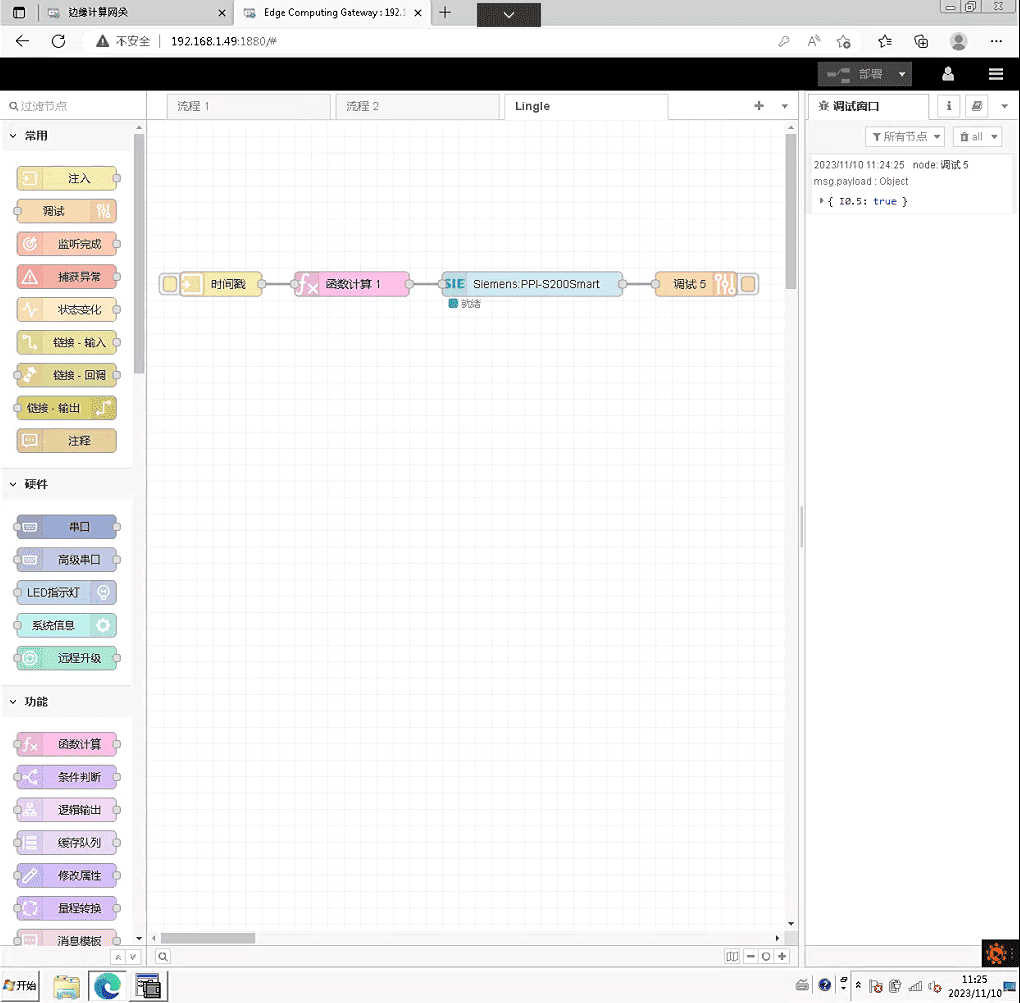

Drag an Inject node and a Debug node as shown in the diagram. Click the Inject node and observe the read data point. The result should be:
