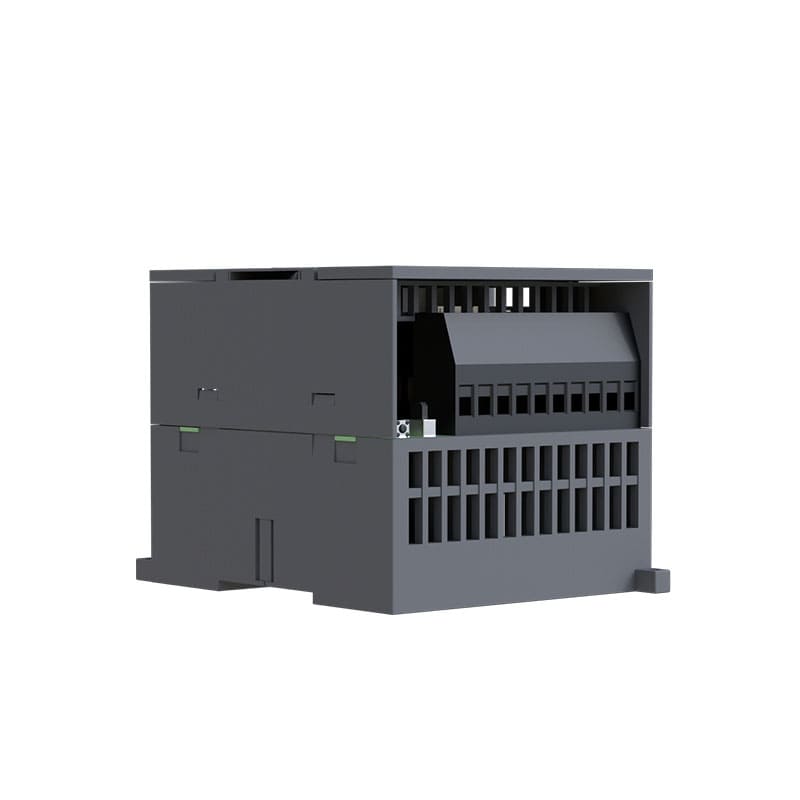

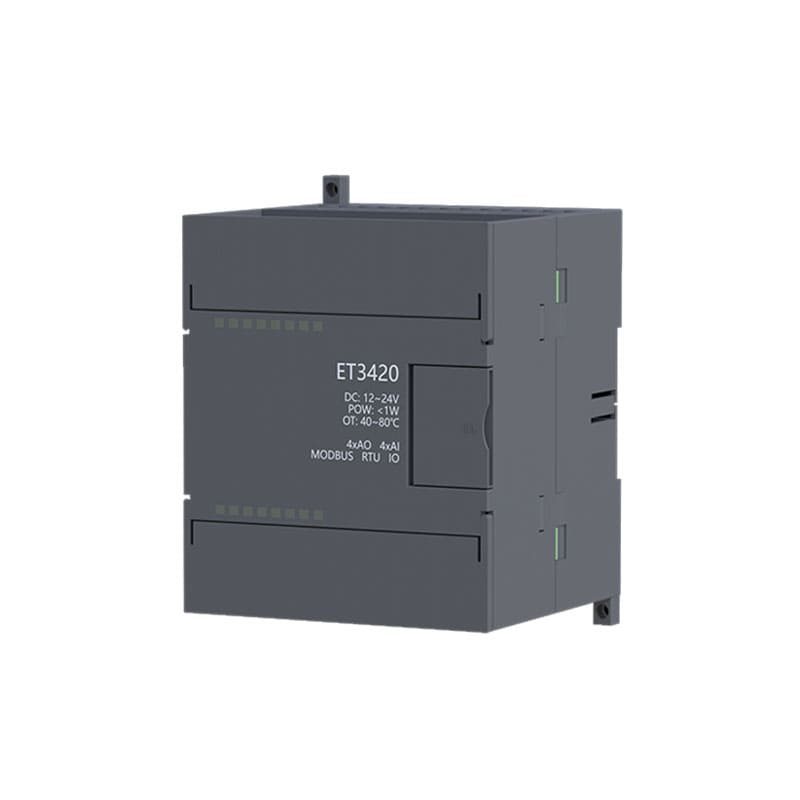

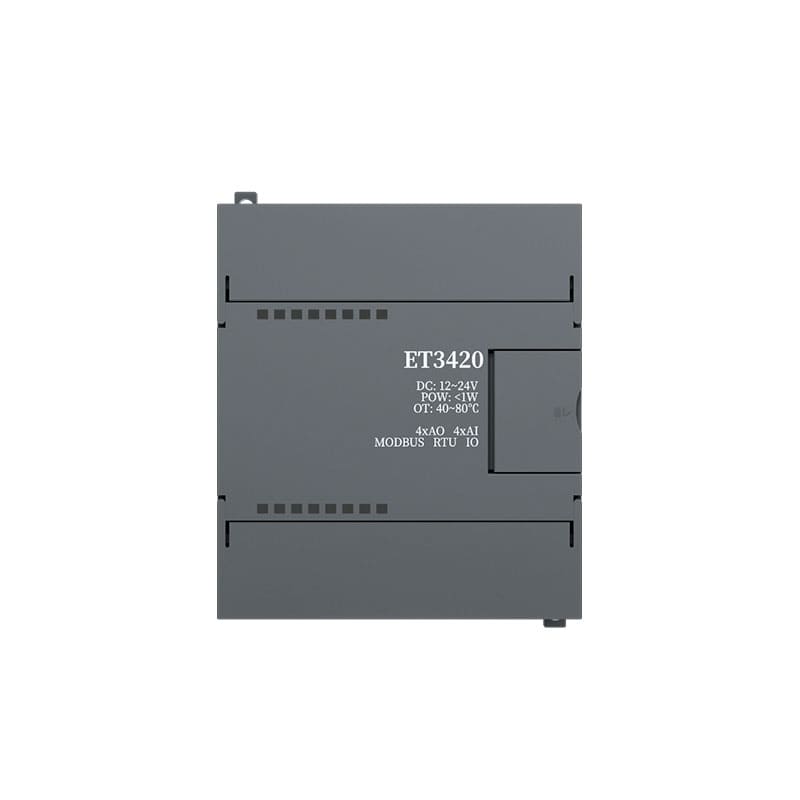

ET3420 4G Communication IO Module

Interface type: RS485/4AI/4AO

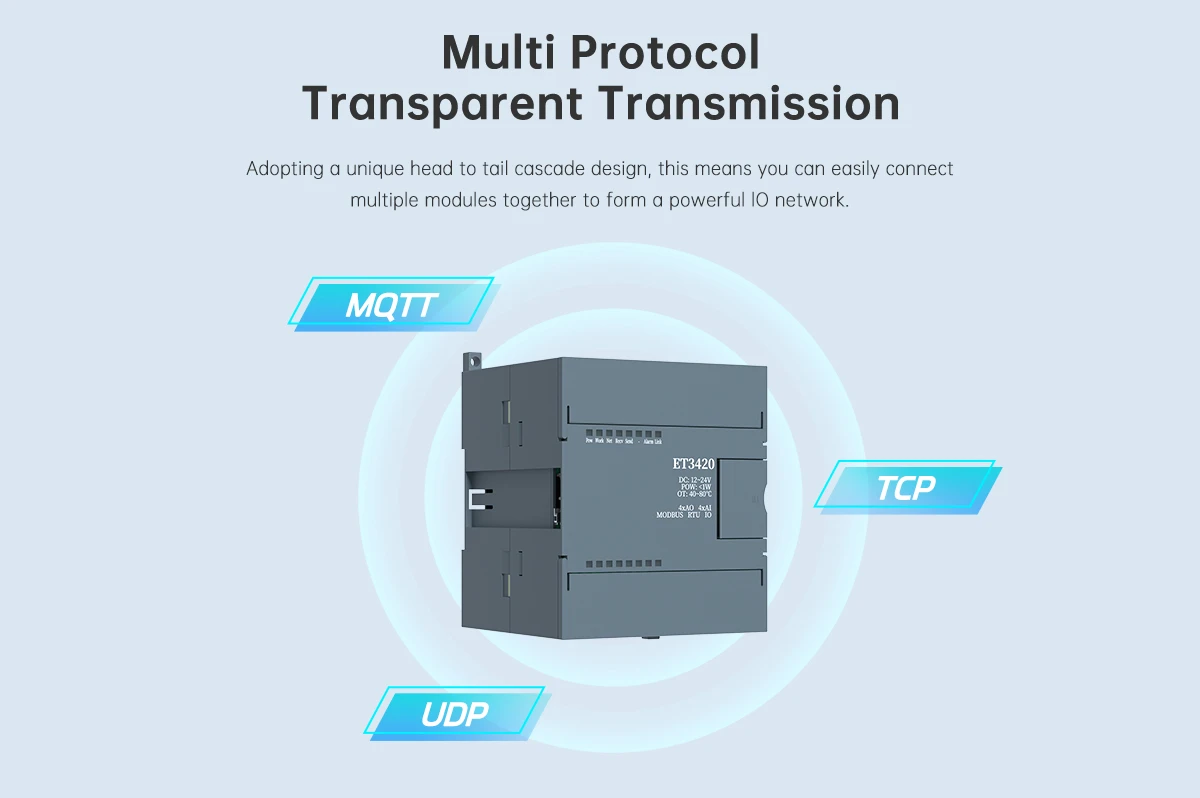

Protocol support: Modbus/MQTT/TCP/UDP/JSON

Network type: 4G

Features: Rugged industrial-grade design, with wide temperature, anti-vibration and other excellent environmental adaptability, able to operate stably for a long time under harsh conditions. The built-in 4G communication module and edge computing function help to improve the real-time response capability and operational efficiency of industrial systems.

Categories: ,

Description

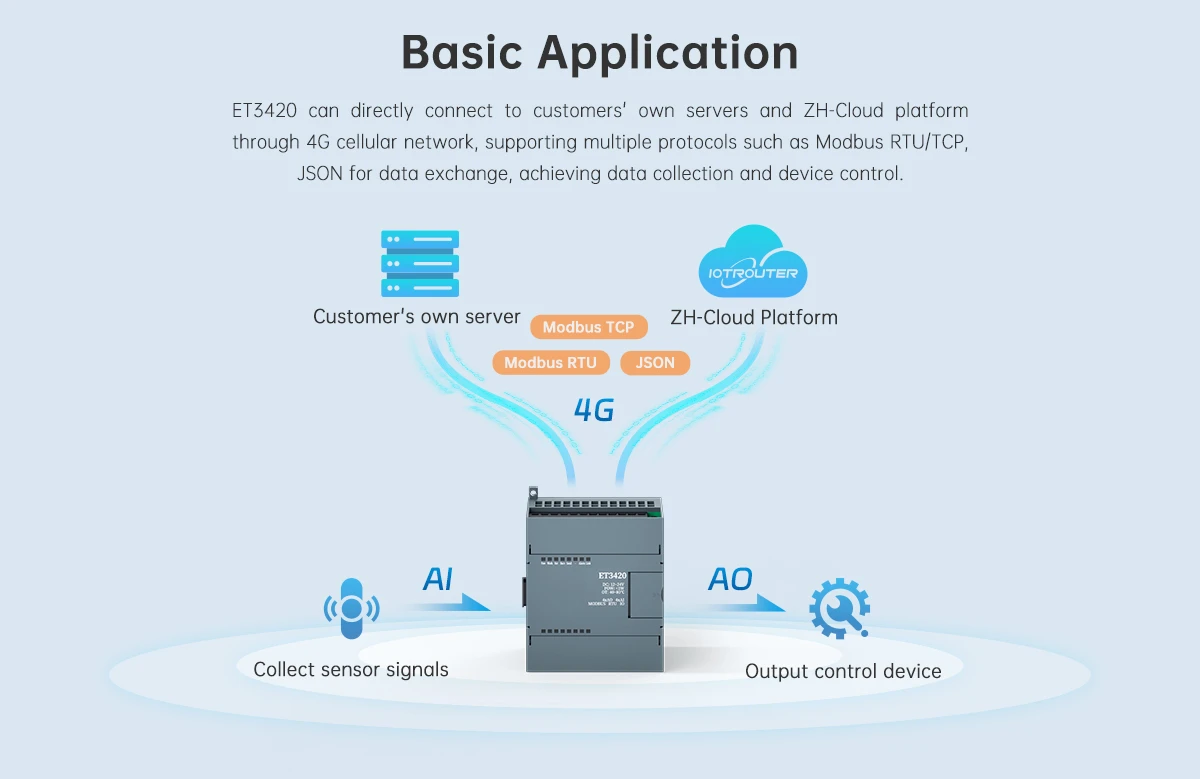

ET3420 4G communication IO module adopts a rugged industrial-grade design with wide temperature, anti-vibration, and other excellent environmental adaptability, and can be used in harsh conditions for long-term stable operation. The built-in 4G communication module enables monitoring and management of remote devices to improve maintenance efficiency. With the edge computing function, ET3420 helps to improve the real-time responsiveness and operational efficiency of industrial systems, which is an ideal assistant for industrial digital transformation.

4G communication IO module 4G communication IO module 4G communication IO module 4G communication IO module4G communication IO module 4G communication IO module 4G communication IO module 4G communication IO module 4G communication IO module4G communication IO moduleET3420 14 1 ET3420 16 1ET3420 15 14G communication IO module 4G communication IO module

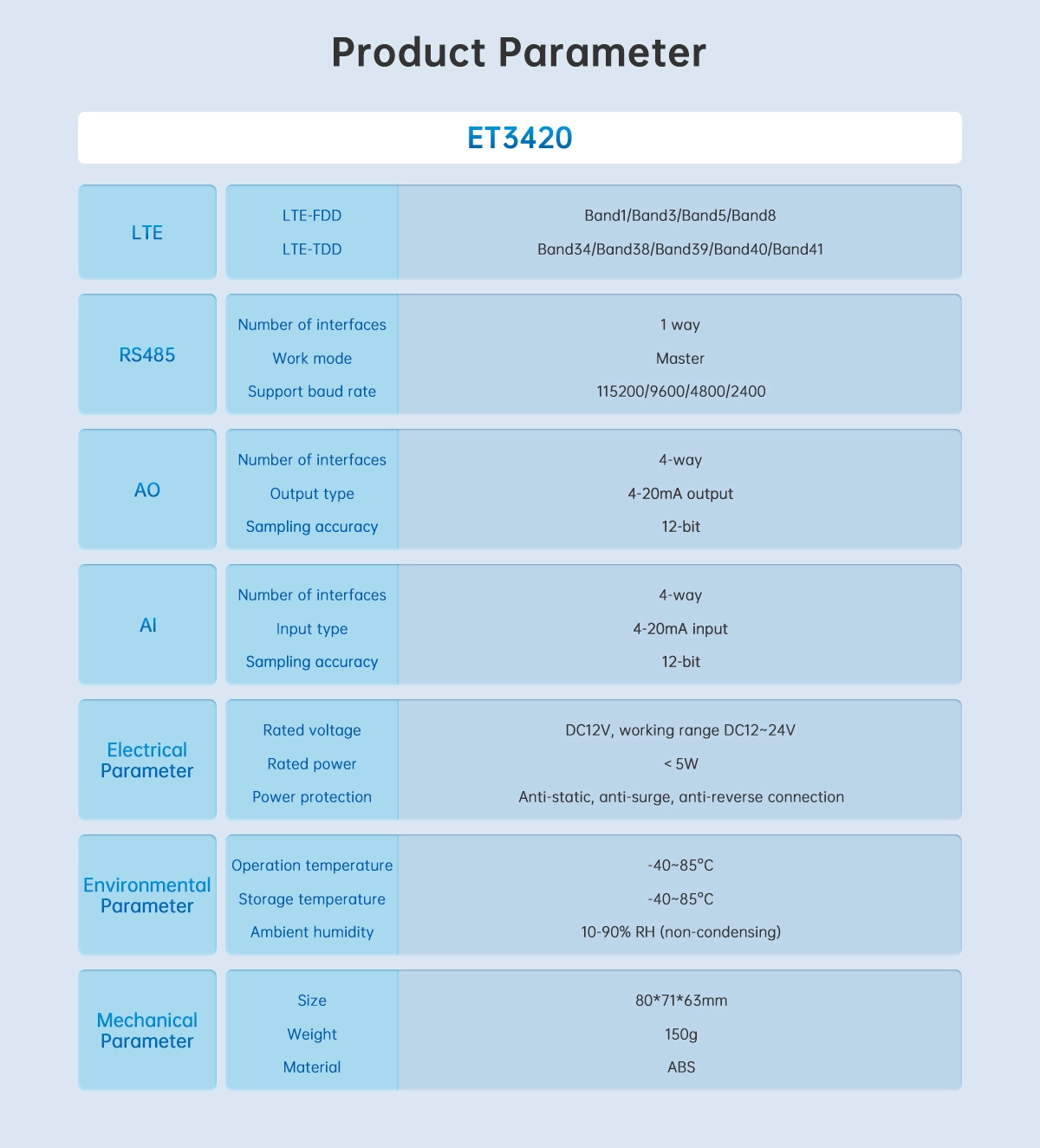

Specification

CategoryParameterSpecification

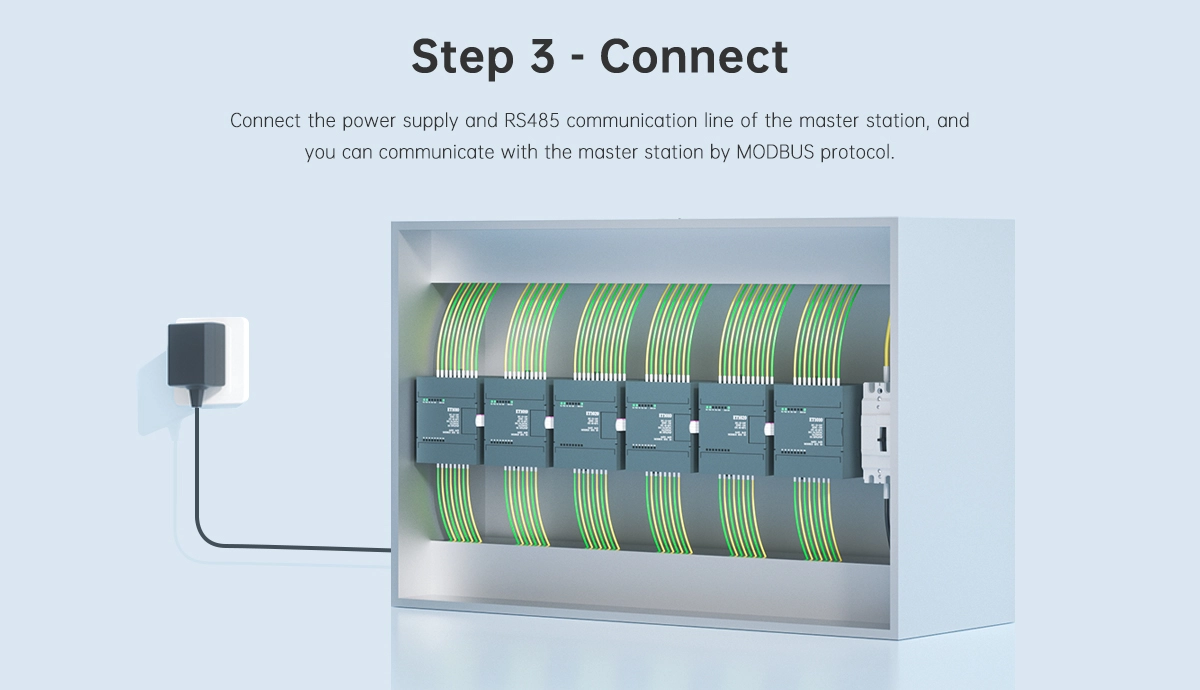

RS485Number of Ports1 channel
Operating ModeMaster
Supported Baud Rates115200 / 9600 / 4800 / 2400
AO (Analog Output)Number of Channels4 channels
Output Type4–20 mA output
Resolution12-bit
AI (Analog Input)Number of Channels4 channels
Input Type4–20 mA input
Resolution12-bit
LTELTE-FDD BandsBand 1 / Band 3 / Band 5 / Band 8
LTE-TDD BandsBand 34 / Band 38 / Band 39 / Band 40 / Band 41
Electrical ParametersRated VoltageDC 12 V
Operating Voltage RangeDC 12–24 V
Power Consumption< 5 W (ESD protection, surge protection, reverse-polarity protection)
Environmental ParametersOperating Temperature Range−40 °C to +85 °C
Storage Temperature Range−40 °C to +85 °C
Operating Humidity Range10–90% RH (non-condensing)
Mechanical ParametersDimensions80 × 71 × 63 mm
Weight150 g
MaterialABS
