ET2110 LoRa Data Transmission Terminal

The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band
The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band
The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band
remote IO controller
The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band

Interface Type:  1RS485/4DI/4DO
Protocol support:  pass-through/relay ……
Network type:  LoRa wireless communication
Featured Functions:
1. 8 km ultra-long range communication
2. RSSI signal strength indication
3. Customized key data encryption

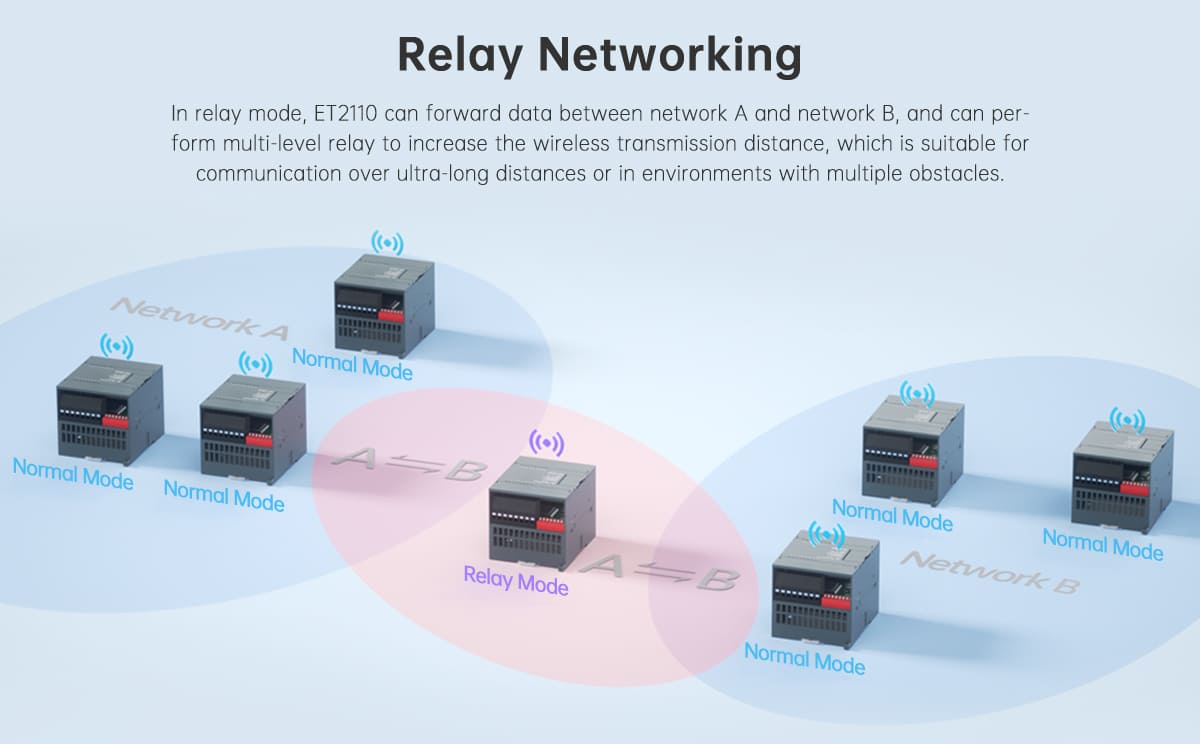

4. Transmission & Multi-level relay modes free switching
5. DO/D I, AO/AI logic following and AI threshold trigger DO
6. Head-to-tail cascade expansion IO, up to 10 slaves

More details…

Categories: ,
Obtain Samples

Description

ET2110 LoRa Data Transmission Terminal adopts the new LoRa spread spectrum technology, providing longer distance, faster speed, and stronger anti-interference ability. Support frequency band 410~493MHz, 850~930MHz, the maximum transmission power can reach 30 dBm, and the communication distance can reach 8 km. The product supports RSSI signal strength indication, which can evaluate signal quality, improve the communication network, and measure distance. The product also supports custom keys to protect data security, effectively enhancing the confidentiality of user data.

The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency bandThe ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band

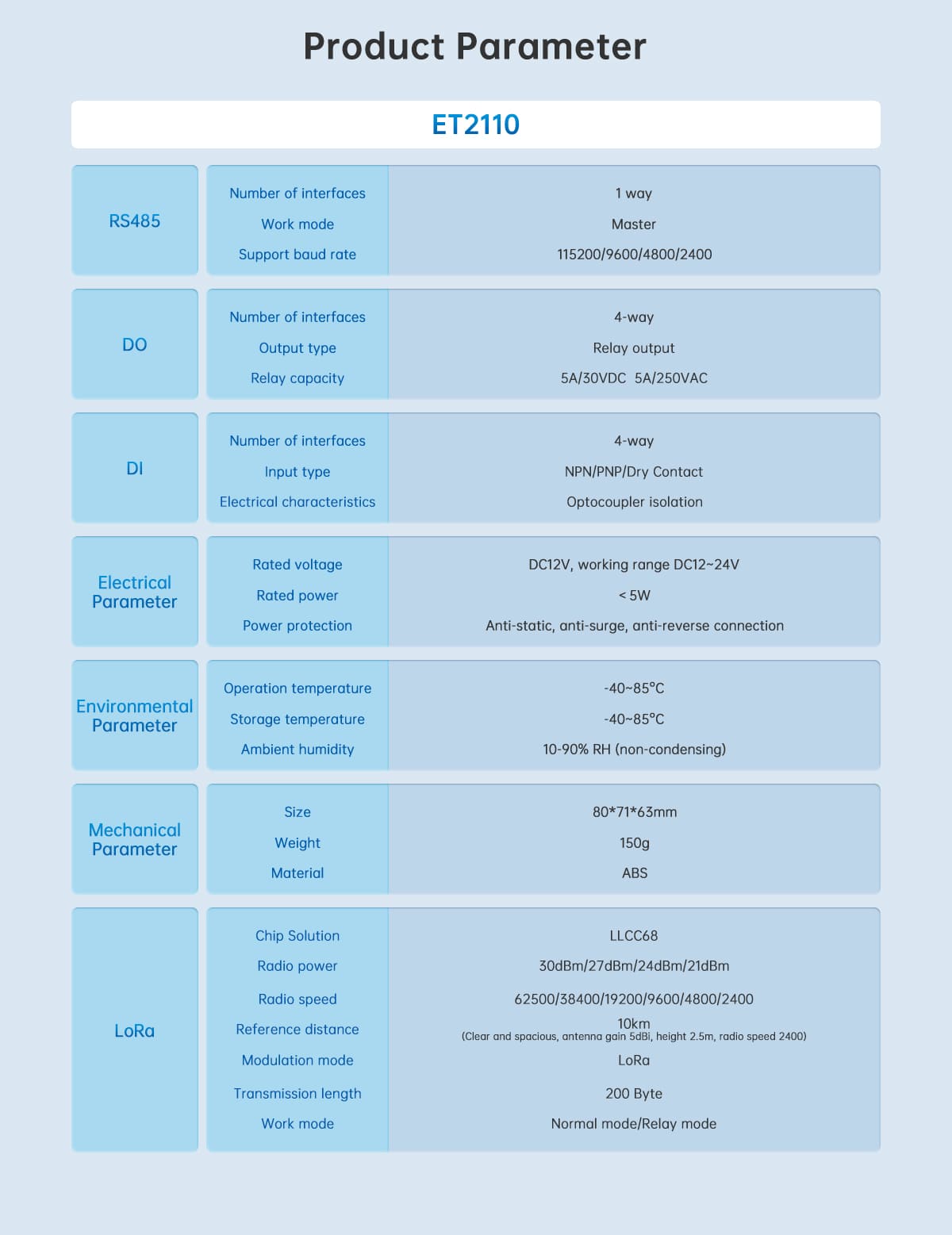

Specification

ITEMDescribe
LORAChip SolutionLLCC68
Radio Power30dBm/27dBm/24dBm/21dBm
Radio Speed62500/38400/19200/9600/4800/2400
Transmission Length200Byte
Work ModeNormal mode/Relay mode
Reference Distance10km (clear and open, antenna gain 5dBi, height 2.5m, airspeed 2400)
RS485Number Of Interfaces1
Working ModeMaster
Baud Rates115200/9600/4800/2400
DONumber Of Interfaces4
Output TypeRelay Output
Relay Capacity5A/30VDC 5A/250VAC
DINumber Of Interfaces4
Input TypeNPN/PNP/Thousand Contacts
Electrical CharacteristicsOptocoupler Isolation
Electrical ParametersRated VoltageDC12V, operating range DC12~24V
Rated Power6.4W
Power ProtectionAnti-static, anti-surge, anti-reverse connection
Environmental ParametersOperating Temperature-40~85℃
Storage Temperature-40~85℃
Environmental Humidity5%~95%RH (No condensation)
Mechanical ParametersSize80*71*63mm
Weight150g
MaterialABS
