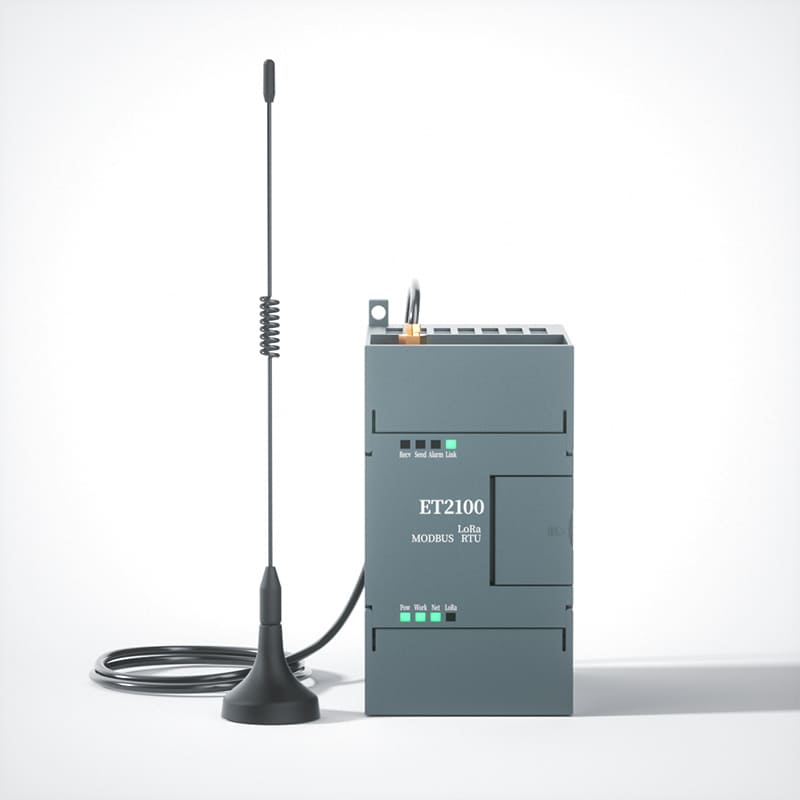

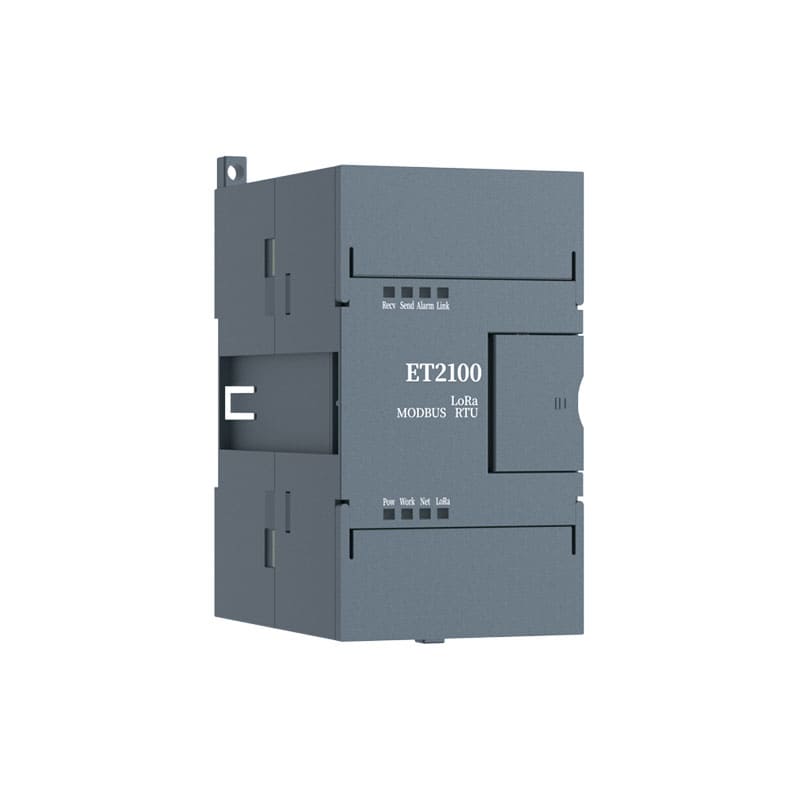

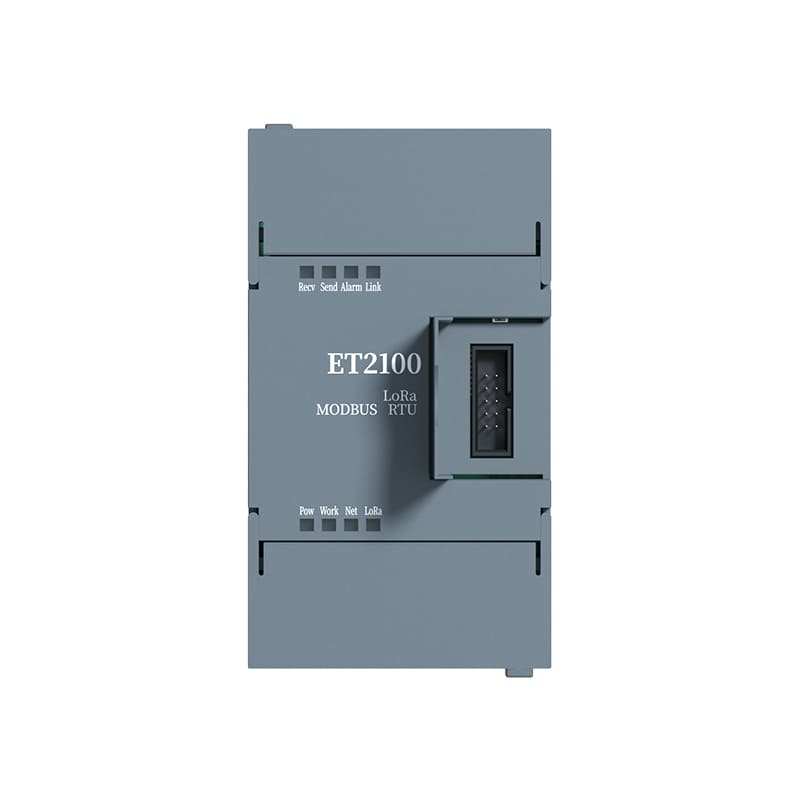

ET2100 LoRa Wireless Module

LoRa Wireless Module

Interface Type: RS485

Protocol Support: Modbus RTU

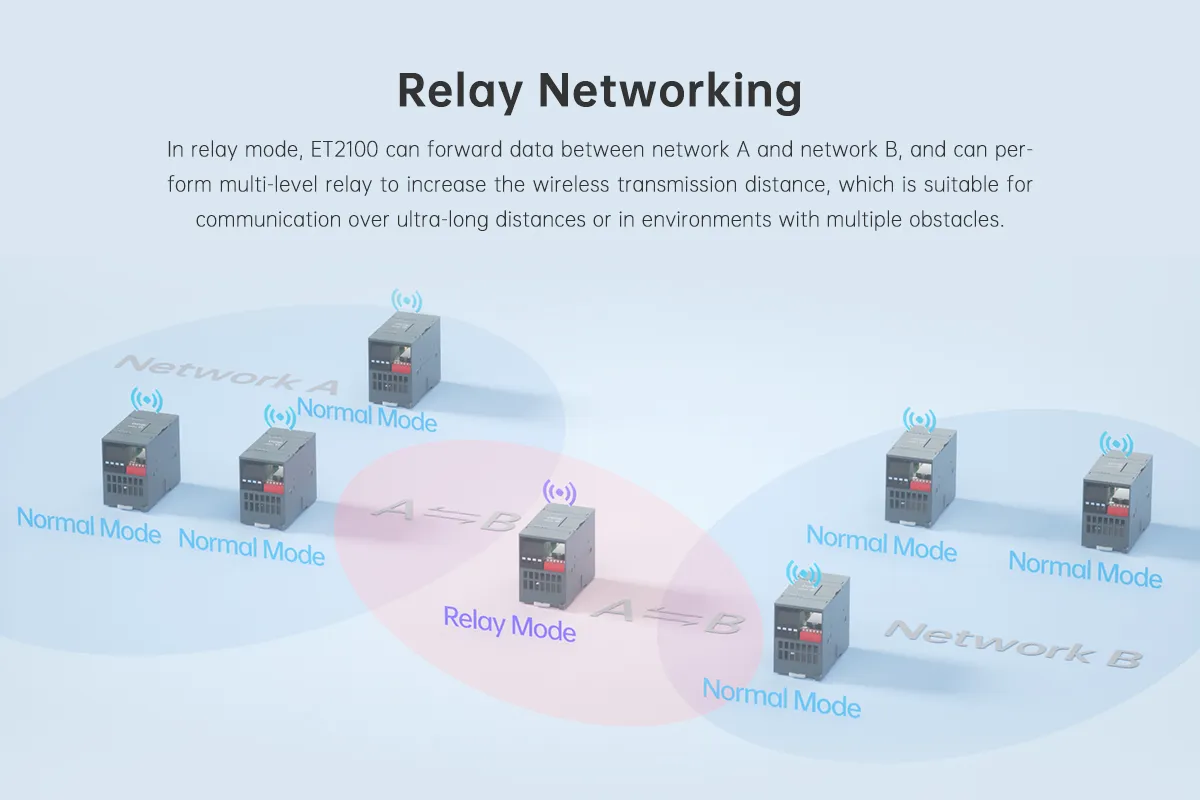

Network type: relay networking

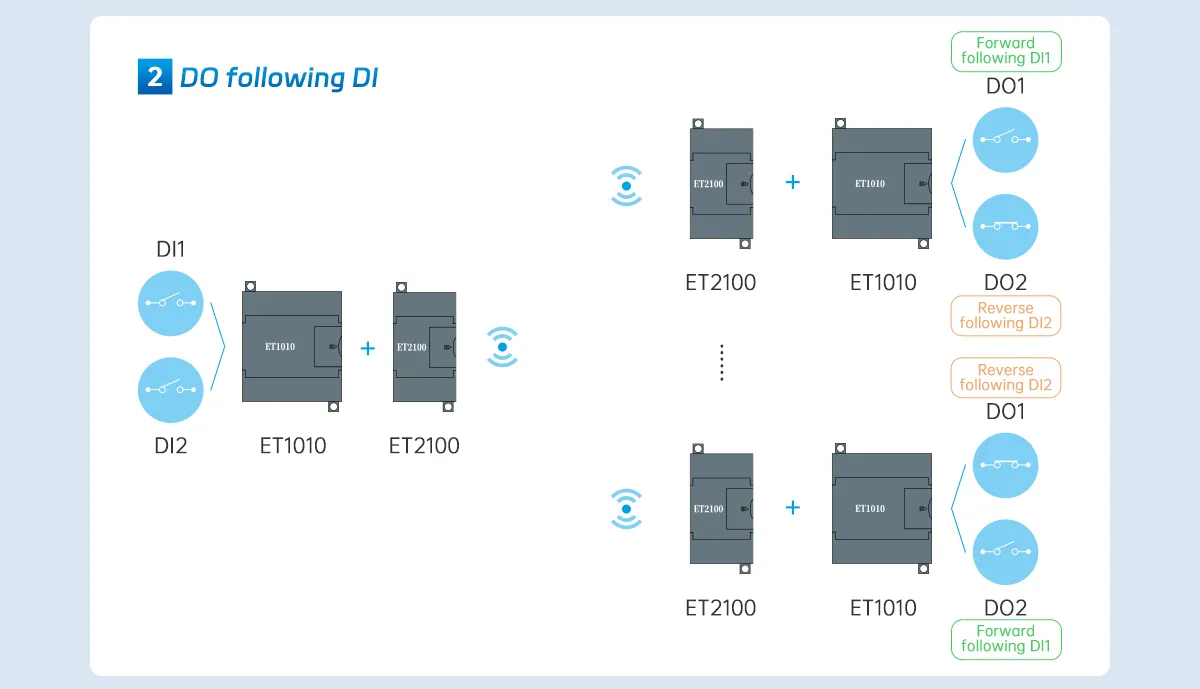

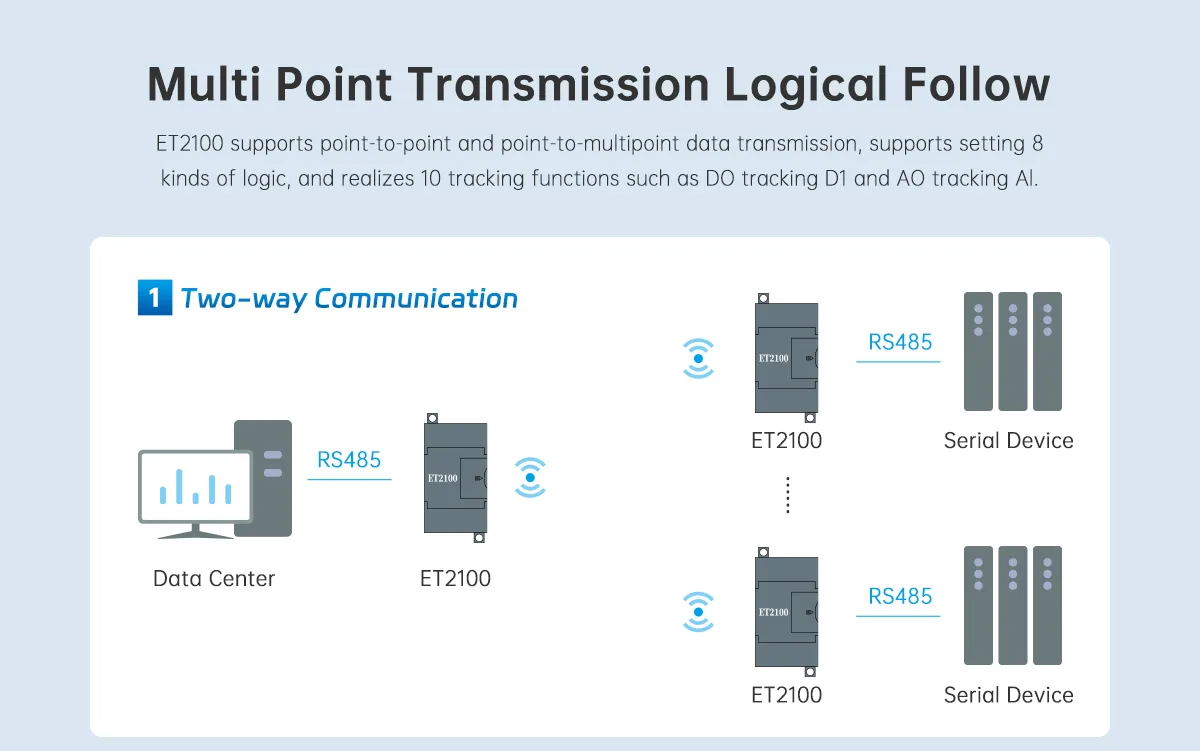

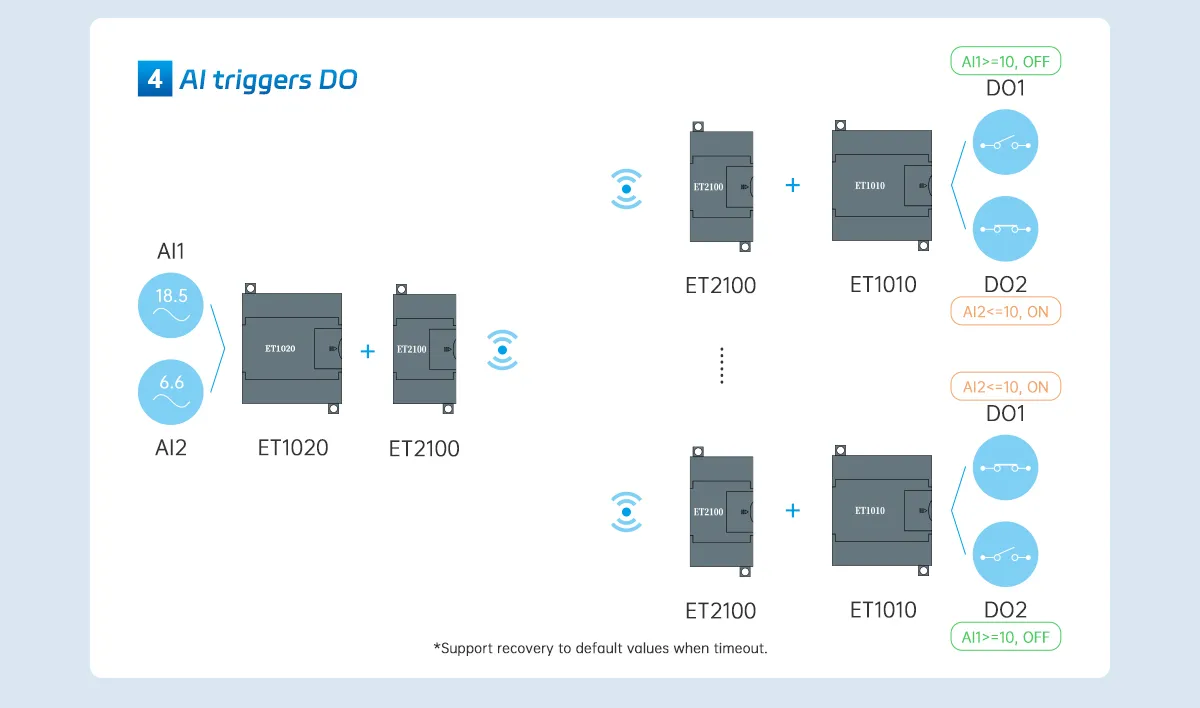

Function: bidirectional data sending and receiving, support for 8 relays, with DO remote tracking DI, AO remote tracking AI and other IO linkage functions

Categories: ,

Description

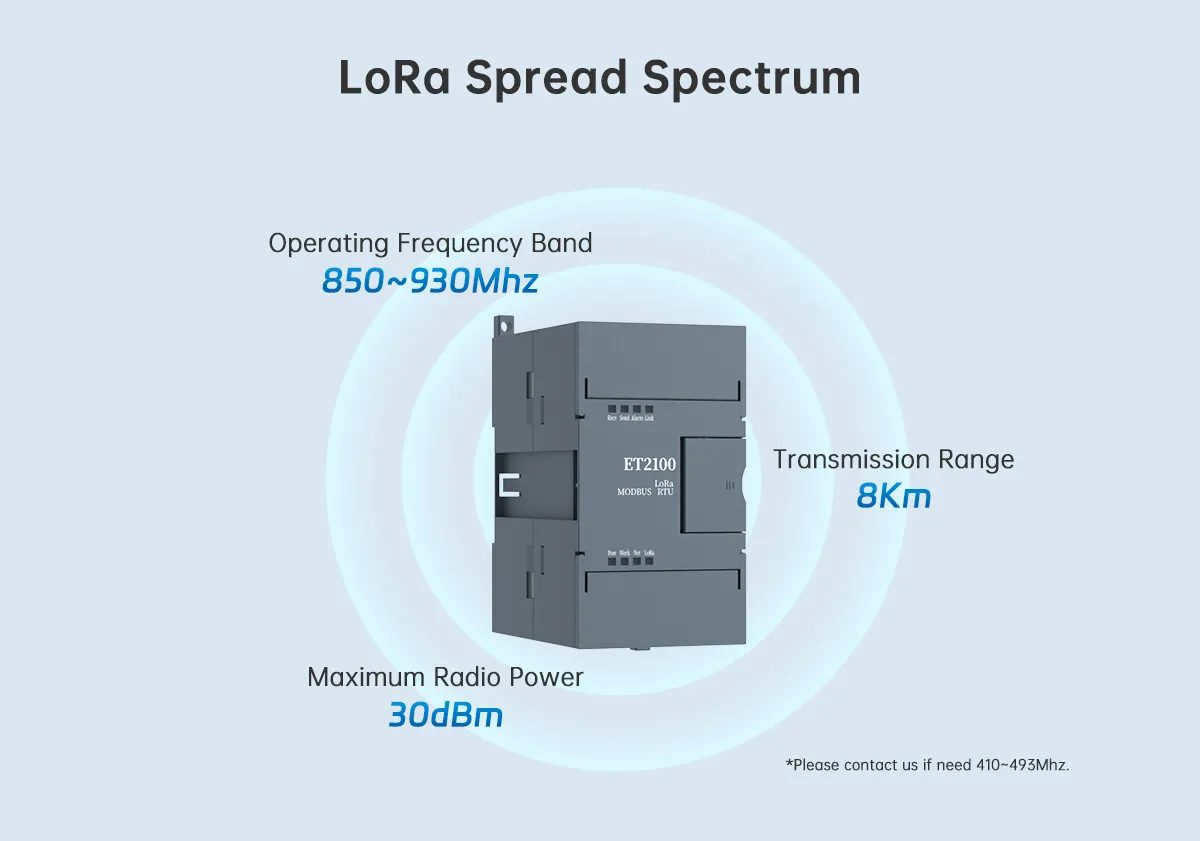

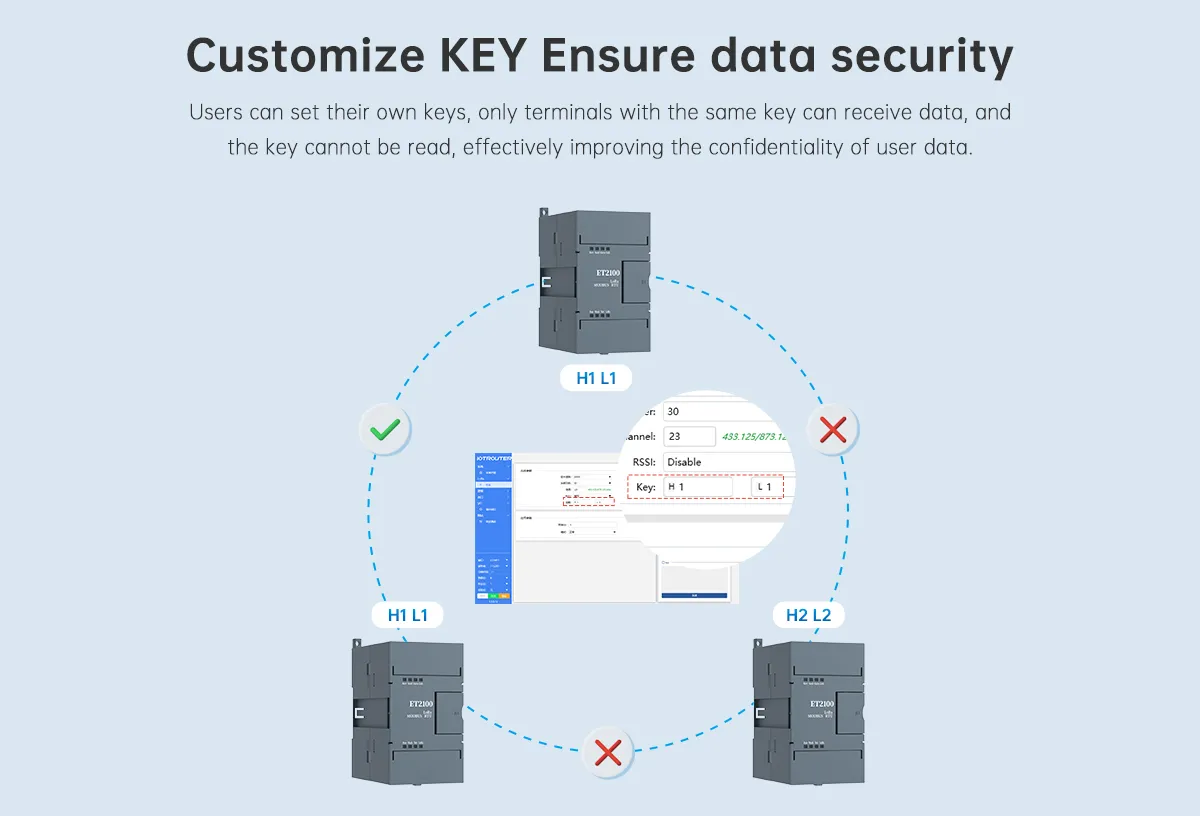

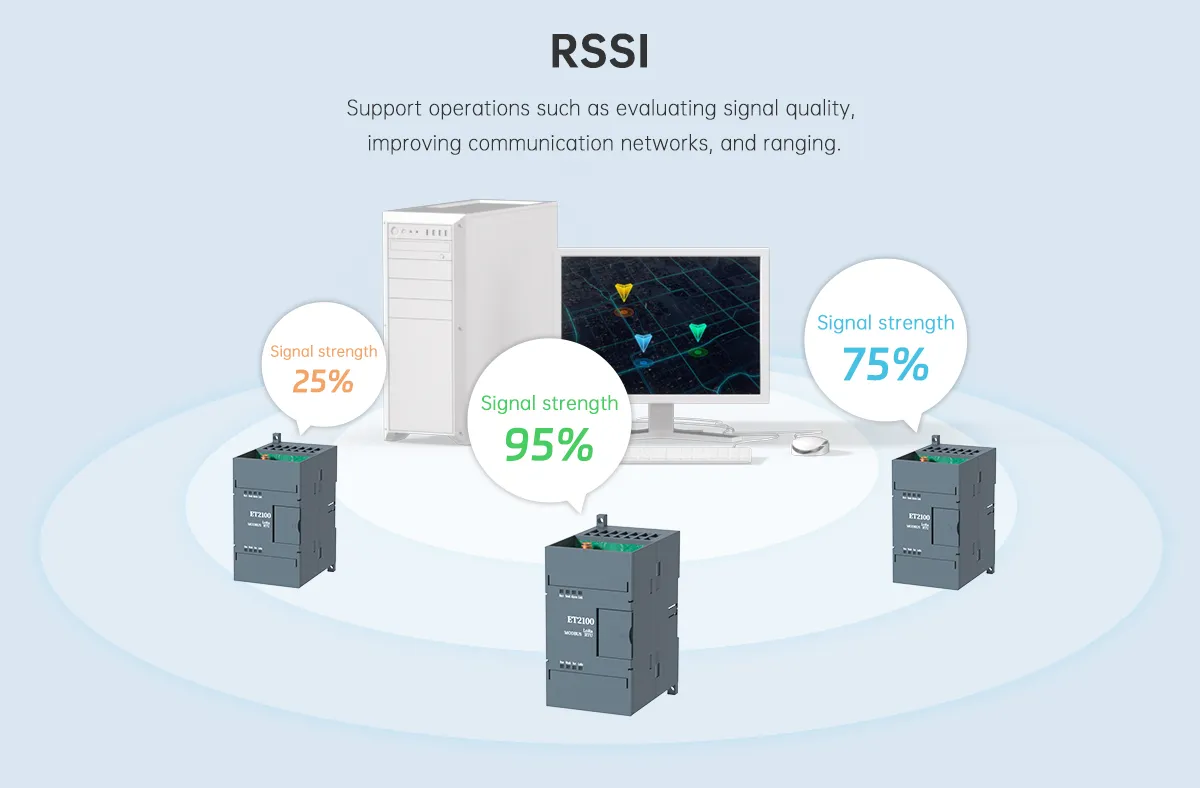

ET2100 LoRa Wireless Module adopts the new LoRa spread spectrum technology, which provides longer distance, faster rate, and stronger anti-interference ability. The working frequency band is 410~493MHz, the maximum transmitting power can be up to 30 dBm, and the communication distance can be up to 8 km. The product supports RSSI signal strength indication, which can be used to evaluate the signal quality, improve the communication network, measure the distance, and perform other operations. The product also supports a customized key to protect data security and effectively improve the confidentiality of user data.

Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT Gateway Long Range 8km Wireless Transmitter Rs485 To Lora Rf 868Mh LoRa IOT GatewayET2100 12

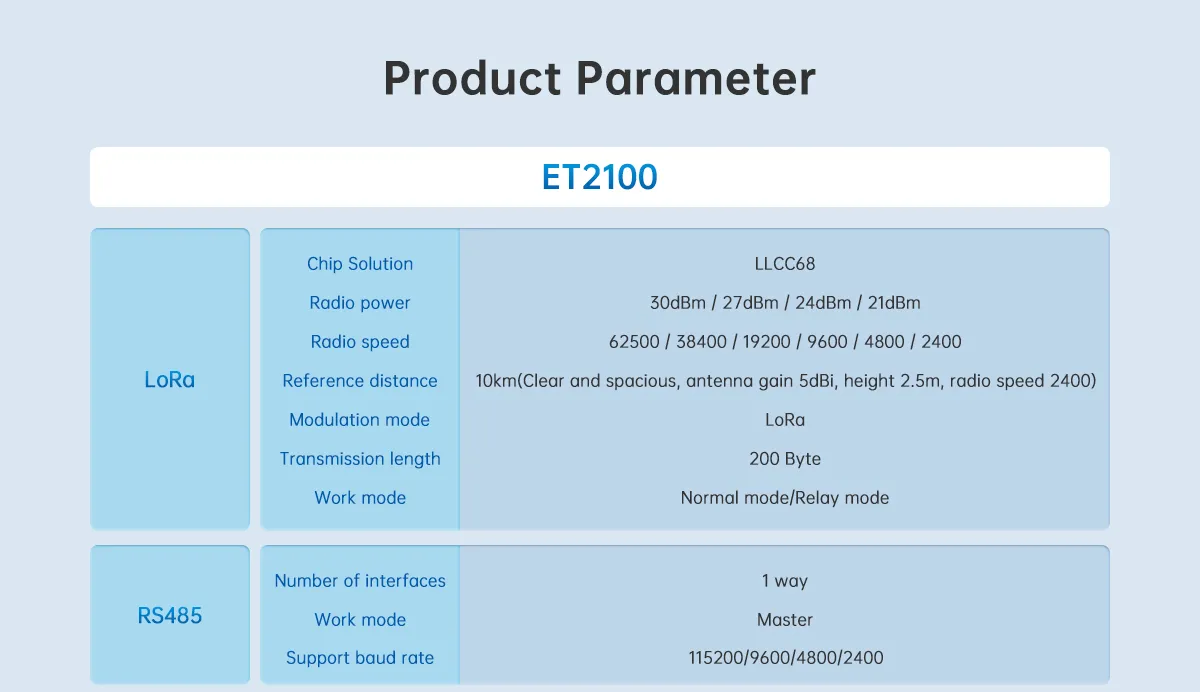

Specification

ITEMDescribe
LORAChip SolutionLLCC68
Radio Power30dBm/27dBm/24dBm/21dBm
Radio Speed62500/38400/19200/9600/4800/2400
Transmission Length200Byte
Modulation MethodLoRa
Work ModeNormal mode/Relay mode
Reference Distance10km (clear and open, antenna gain 5dBi, height 2.5m, airspeed 2400)
RS485Number Of Interfaces1
Working ModeMaster
Baud Rates115200/9600/4800/2400

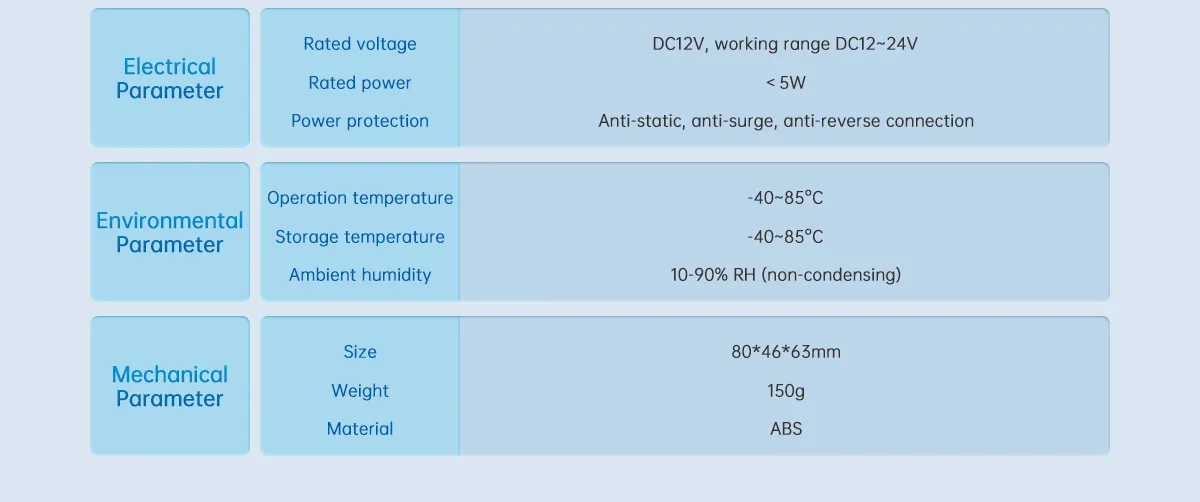

Electrical ParametersRated VoltageDC12V, operating range DC12~24V
Rated Power<5.5W
Power ProtectionAnti-static, anti-surge, anti-reverse connection
Environmental ParametersOperating Temperature-40~85℃
Storage Temperature-40~85℃
Environmental Humidity5%~95%RH (No condensation)

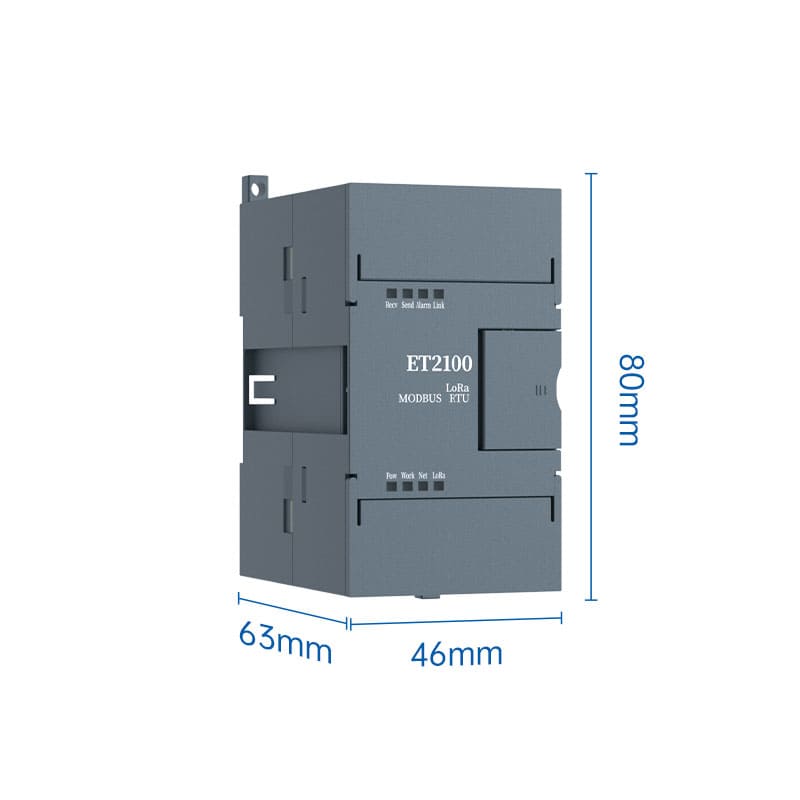

Mechanical ParametersSize80*46*63mm
Weight150g
MaterialABS
