Product introduction

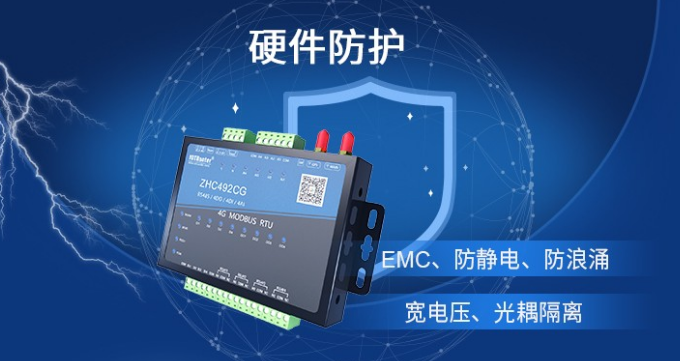

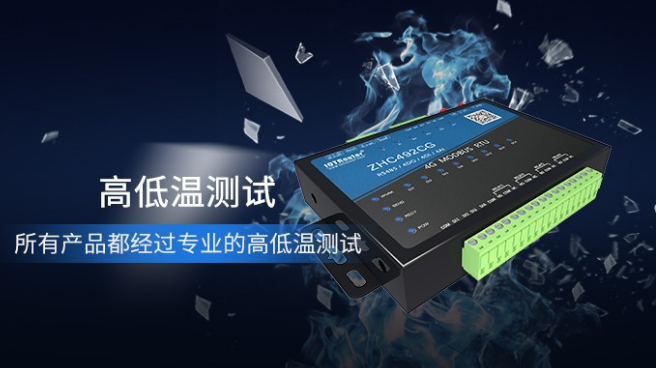

Hohe Zuverlässigkeit
 |
 |
 |
 |
Produktmerkmale

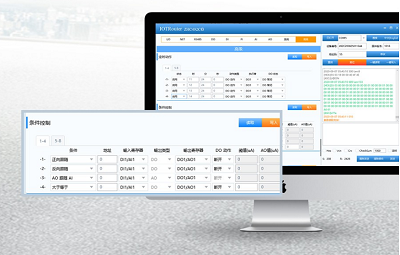

| Logic follows – local logic Logic follows – local logic Local logic operations do not need to rely on the cloud DO follows DI forward DO follows DI in reverse Greater than or equal to the threshold triggers DO Less than or equal to the threshold triggers DO |
 |
 |

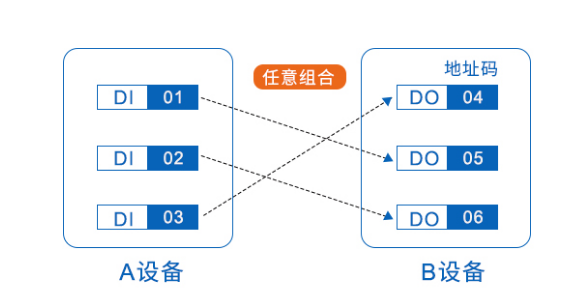

Logic following, logic between devices Point-to-point logic following Multiple devices can be combined arbitrarily, and multiple channels can be followed arbitrarily. |
|

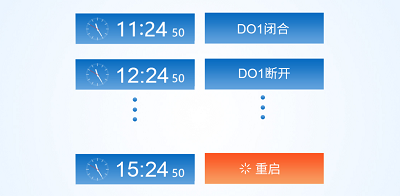

Timing trigger A time point (Beijing time) can be set to trigger restart or switch actions · Scheduled restart After enabling the socket, set a scheduled action and restart regularly to ensure that the device is effectively connected. No longer do you have to travel across mountains and rivers just to restart your equipment, achieving true 24/7 non-stop service. · Set open close Open or close the DO switch at regular intervals for flood discharge, power on, lighting, etc. |
 |
 |

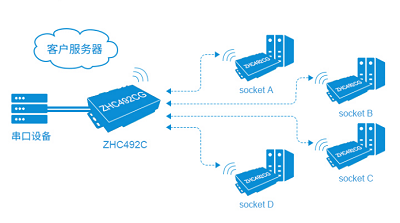

Support 4-way socket The collected data can be sent to 4 servers at the same time. |
|

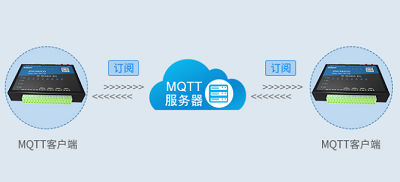

Unterstützung mehrerer Protokolle Compatible with Modbus RTU/TCP and JSON protocols Support MQTT, TCP, UDP multiple protocols |
 |
Product topology
Model comparison
| product picture | Netzwerk/Modell | Schnittstelle | Funktion |
 |

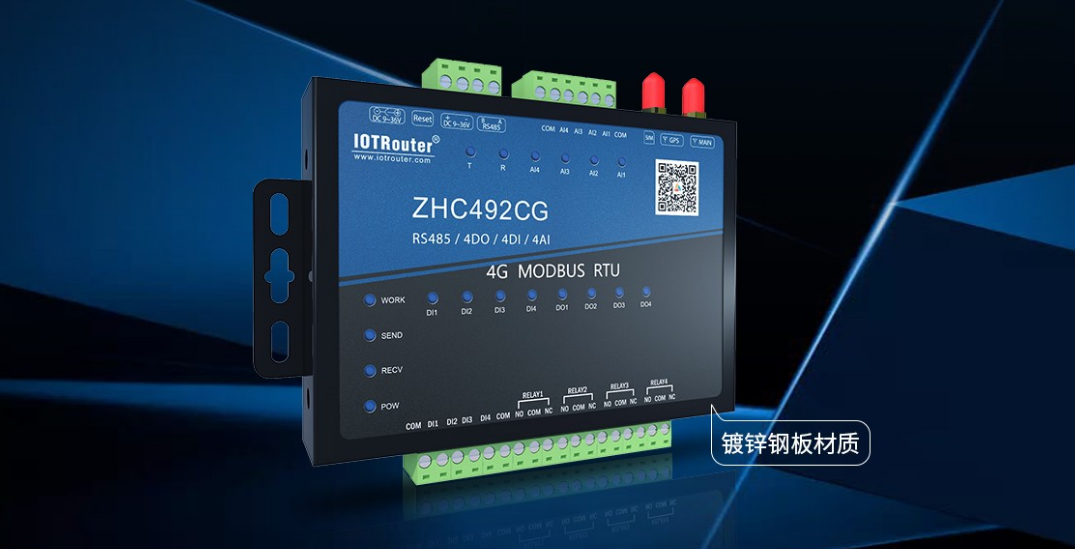

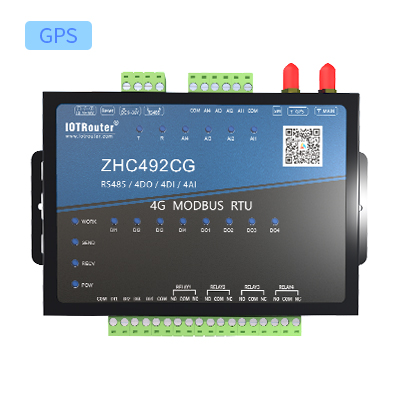

4G-Vollnetzkommunikation ZHC492CG |

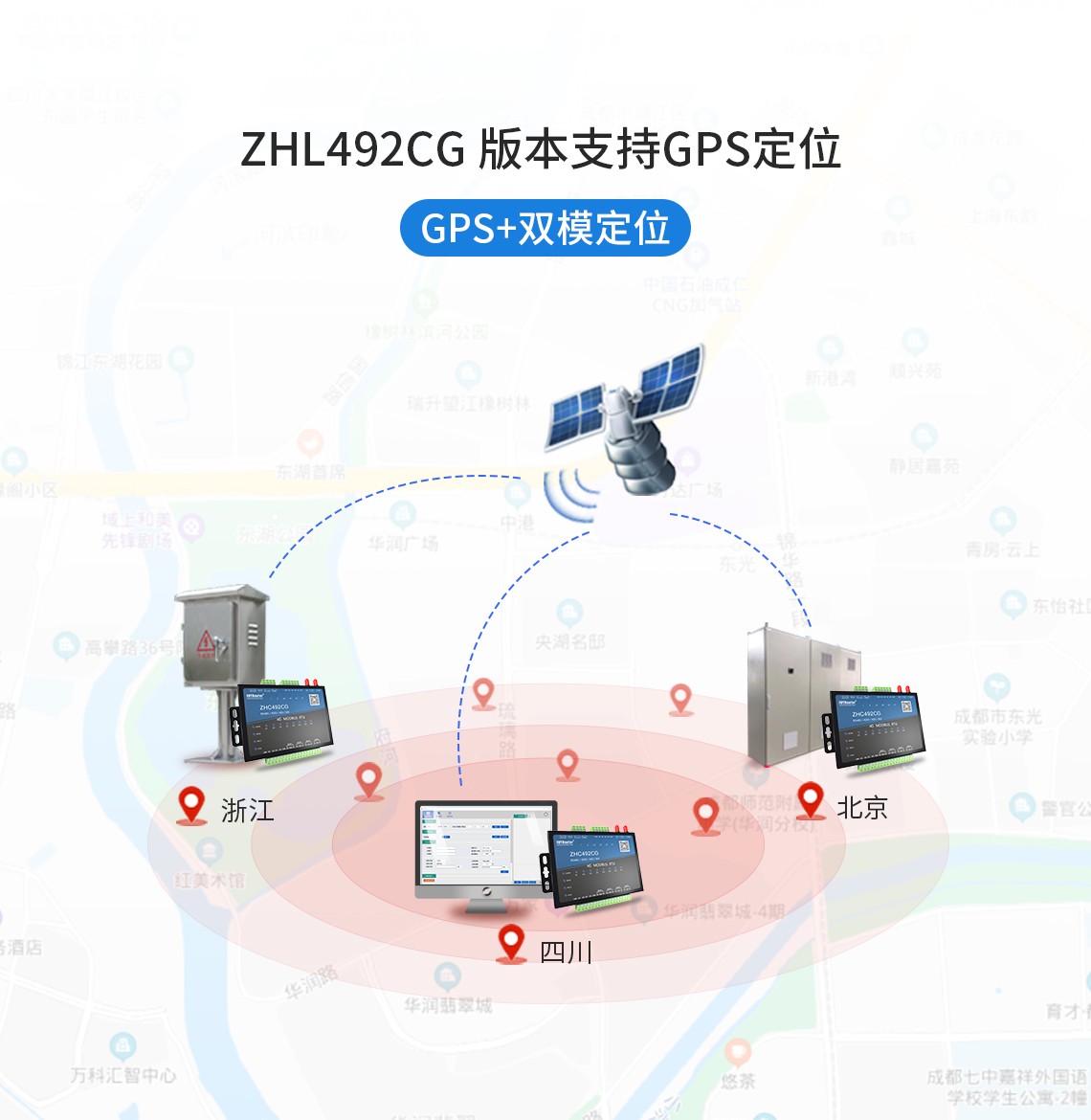

4DI/4DO/4AI/1RS485 | Support multiple satellite positioning systems: GPS, Beidou, QZSS
Conditional control Automatic collection Timing control |
 |

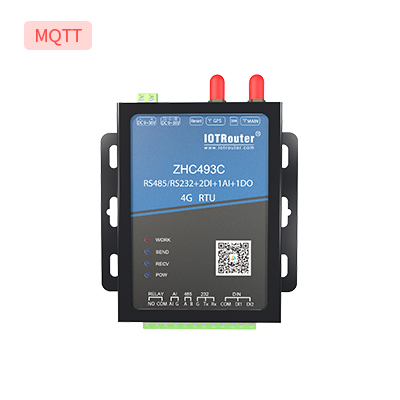

4G-Vollnetzkommunikation ZHC493C |
2DI/1DO/1AI/1RS485 |
Modbus RTU/TCP adaptive Dry and wet node IO detection local logic processing operations Configuration software docking 4-way Socket |
 |

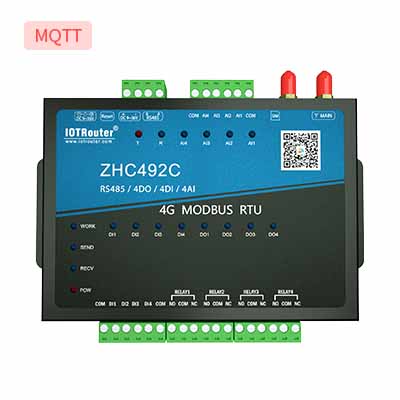

4G-Vollnetzkommunikation ZHC492C |
4DI/4DO/4AI/1RS485 | A network IO product with 4 channels of relay (COM, NO, NC) output, 4 channels of analog quantity (current 4~20mA) detection, and 1 channel of serial port transparent transmission, compatible with Modbus RTU/TCP protocol. |
 |

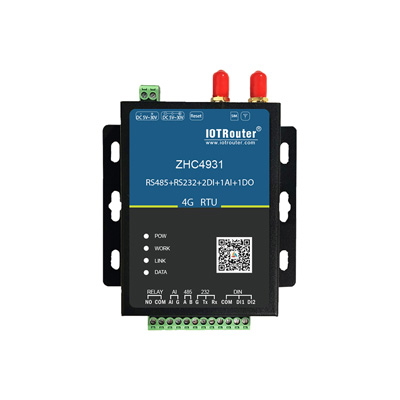

4G-Vollnetzkommunikation ZHC4931 |
1RS485/232/2DI/1DO/1AI | Supports local logic processing operations, automatic collection and active reporting, Modbus RTU/TCP adaptation, automatic calibration threshold reporting, configuration software docking, and wet and dry node IO detection |
 |

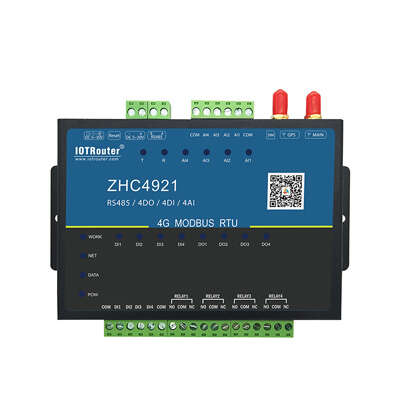

4G-Vollnetzkommunikation ZHC4921 |
4DI/4DO/4AI/1RS485 | Supports local logic processing operations, automatic collection and active reporting, Modbus RTU/TCP adaptation, automatic calibration threshold reporting, configuration software docking, wet and dry node IO detection and other special functions |
 |

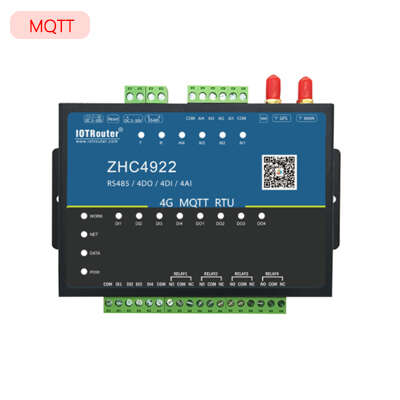

4G-Vollnetzkommunikation ZHC4922 |
4DI/4DO/4AI/1RS48 | MQTT RTU/TCP adaptive, automatic calibration threshold reporting, configuration software docking, dry and wet node IO detection and other special functions |
 |

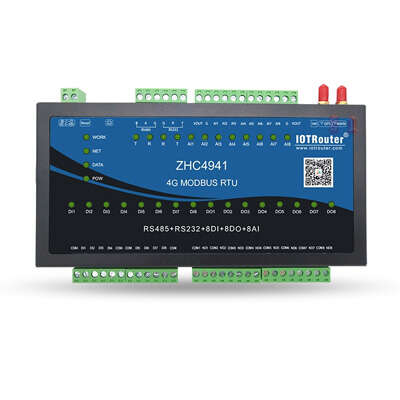

4G-Vollnetzkommunikation ZHC4941 |
8DO/8DI/8AI/485/232 | Supports local logic processing operations, automatic collection and active reporting, Modbus RTU/TCP adaptation, automatic calibration threshold reporting, configuration software docking, wet and dry node IO detection and other special functions |
 |

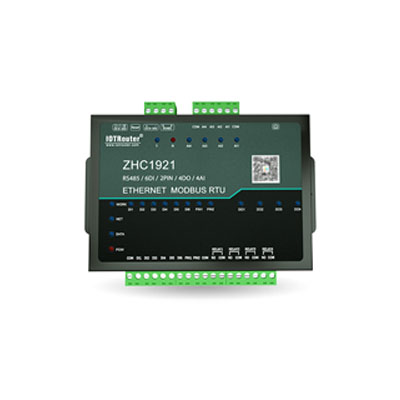

Ethernet ZHC1921 |
RS485/4DI/2PIN/4DO/4AI | Supports 4-way Socket, Modbus RTU/TCP adaptive, local logic processing calculations, automatic collection and active reporting, DO remote follow AI/DI, configuration cloud real-time monitoring PLC, automatic IP address acquisition, DNS domain name resolution and other special functions |
 |

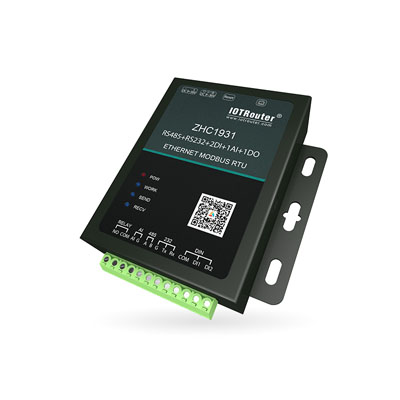

Ethernet ZHC1931 |
RS485/RS232/2DI/1DO/1AI | Supports 4-way Socket, Modbus RTU/TCP adaptive, local logic processing, automatic collection and active reporting, DO remote follow AI/DI, configuration cloud real-time monitoring PLC, automatic acquisition of IP address |
 |

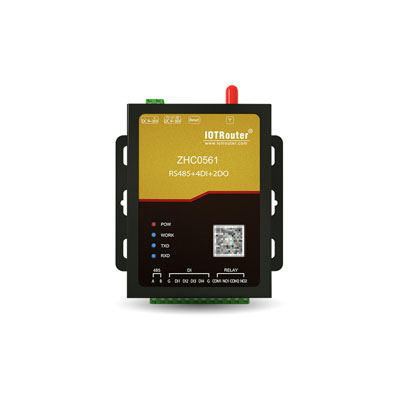

LoRa-Netz | 1RS485/4DI/2DO | Support AES communication encryption. Using the serial port for sending and receiving lowers the threshold for wireless applications and enables data transmission from the serial port to LoRa. |
Andere Einführung
The switching module developed by Zongheng Intelligent Control is often used to collect switching signals from on-site input devices (such as buttons, travel switches, temperature control switches, liquid level switches, etc.), convert the signals into low-voltage signals inside the PLC, and implement PLC Electrical isolation of internal and external signals.
In addition to the above-mentioned DI (switch input) interface, it also provides DO (switch output), which can be used for remote control, such as remote control of pump stations, remote control of street lights, etc.
