The EC300 series Touchscreen Multi-Interface ARM Industrial Computer is a high-performance ARM-based industrial computer equipped with the Rockchip RK3562J quad-core processor (1.8 GHz), featuring a 1 TOPS NPU und ein dedicated 3D GPU. It supports lightweight AI vision tasks and 4K video decoding.

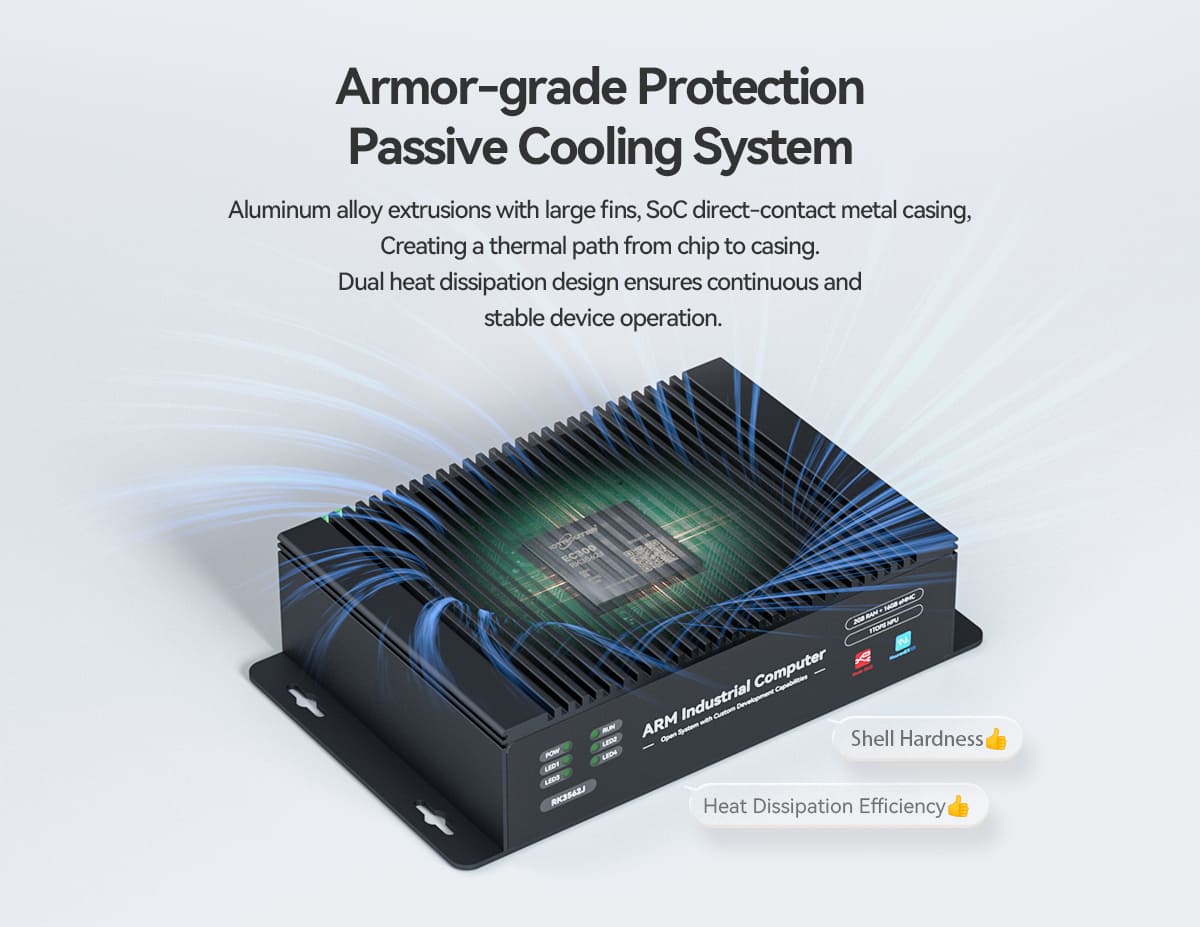

Built with an aluminum alloy fanless cooling design, the EC300 ensures reliable operation in industrial environments through direct SoC-to-metal heat dissipation and efficient thermal management.

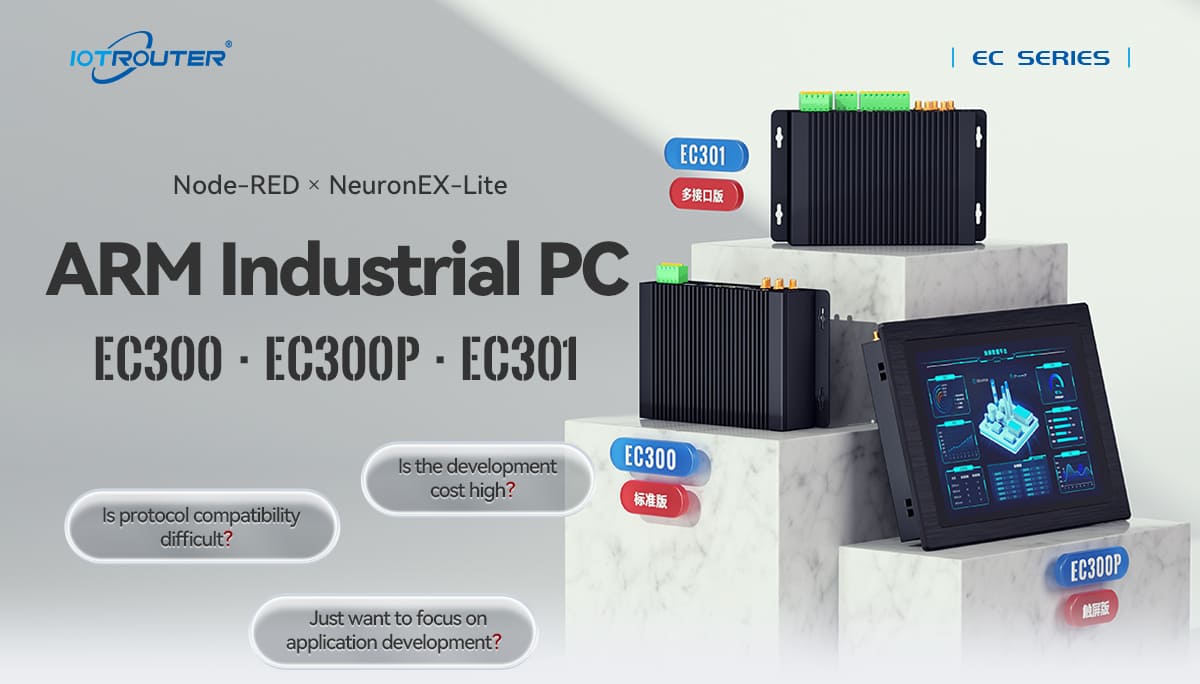

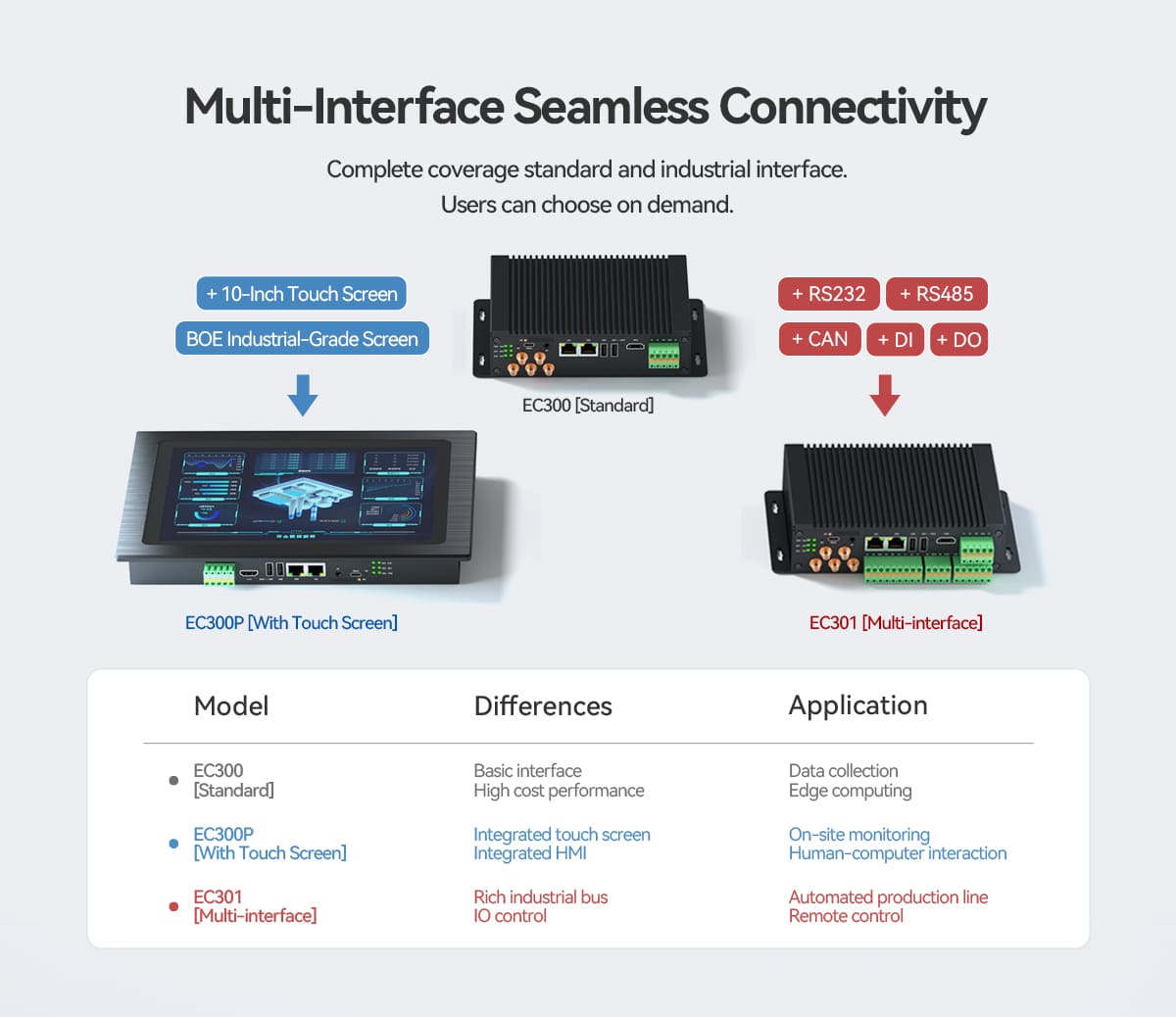

Verfügbare Modelle:

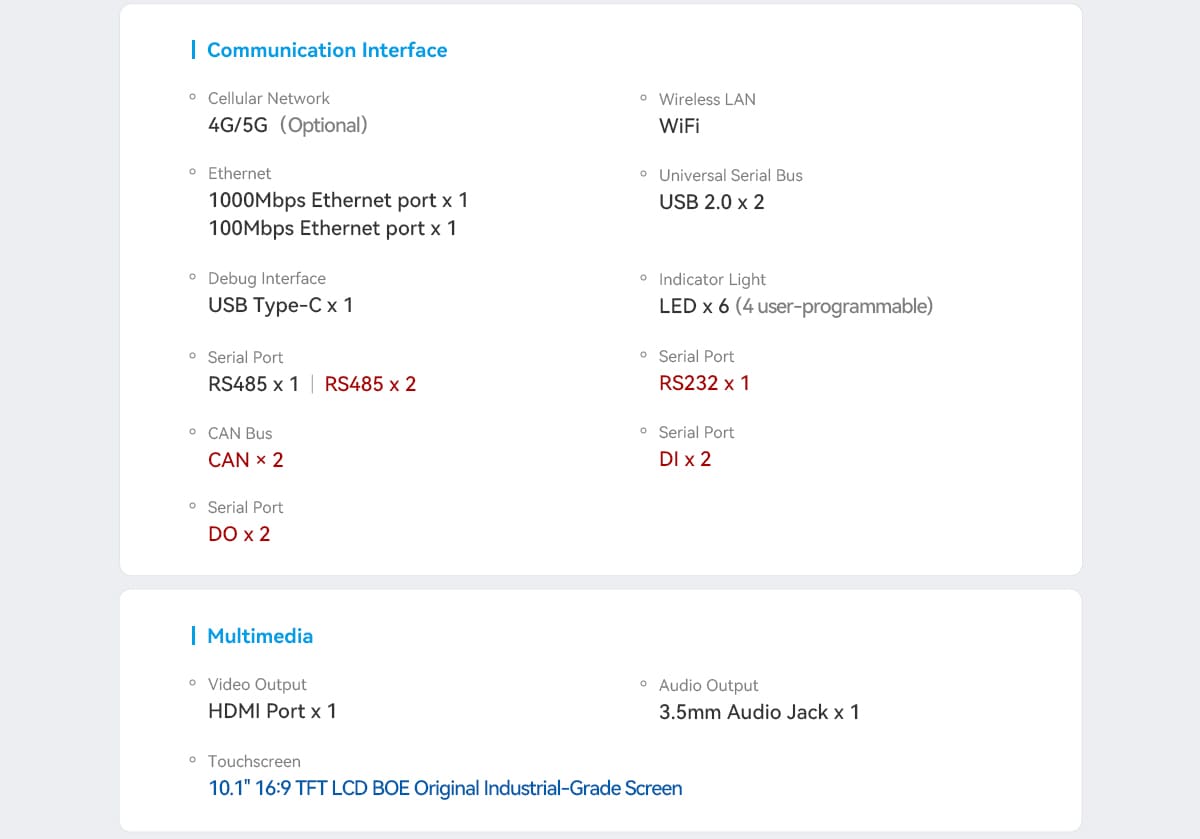

1. EC300 (Standard): RS485 x 1, 100/1000 Mbps LAN/WAN-Ethernet-Port, 2 x USB. Kostenoptimiert für Datenerfassung und Edge Computing.
2. EC300P (Touchscreen): 10,1-Zoll-BOE-Industriedisplay + Audio. Unterstützt Touch-fähige HMI für Vor-Ort-Monitoring.
3. EC301 (Multi-Interface): Erweiterte industrielle Bus-Schnittstellen (Dual CAN, Dual RS485) + I/O-Steuerung (2x DI / 2x DO). Geeignet für automatisierte Produktionslinien.
Wesentliche Merkmale
Offenes System
Offers full SDK and API documentation for rapid secondary development
Industrietauglich
Betriebstemperaturbereich von -40 bis 85 °C, breiter Eingangsspannungsbereich von 9–36 V, Überspannungs- und ESD-Schutz
Audio-Visual Monitoring (EC300P)
Direct HDMI connection to large displays + 3.5mm audio for alerts
Visuelle Programmierung
Drag-and-drop workflow design for zero-code control strategy development
Protocol Hub
Supports 100+ protocols including Modbus and OPC UA
Zero-Code SCADA
Create real-time dashboards without complex SCADA software
Ferngesteuertes O&M
Configure, debug, and manage devices remotely
Multi-Network Connectivity

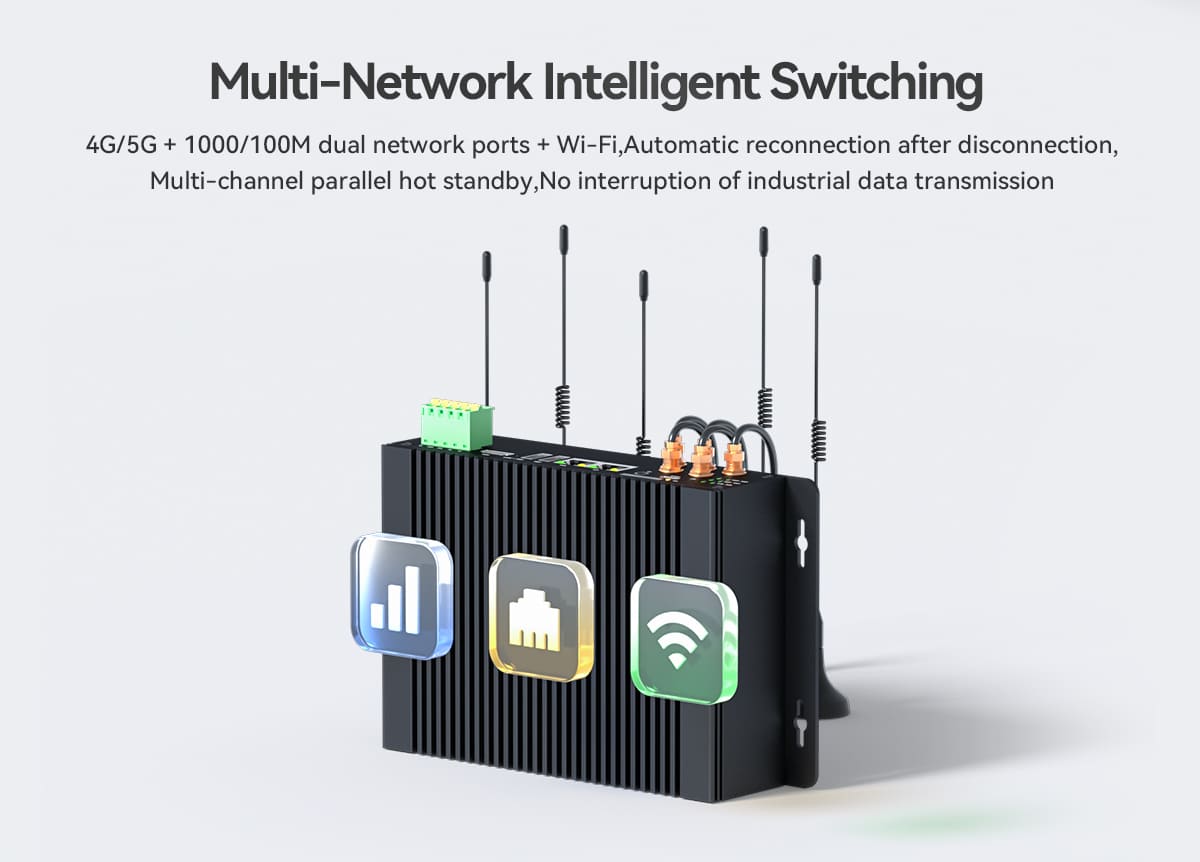

4G/5G, Ethernet, and Wi-Fi with automatic failover
* unterstützen OEM/ODM, Wenden Sie sich an den Kundendienst, um Einzelheiten zu erfahren.
EC Series Products
The EC Series ARM Industrial Computers include two families: EC100 (RK3506J) and EC300 (RK3562J), offering different performance levels and hardware configurations. See the table below for details.

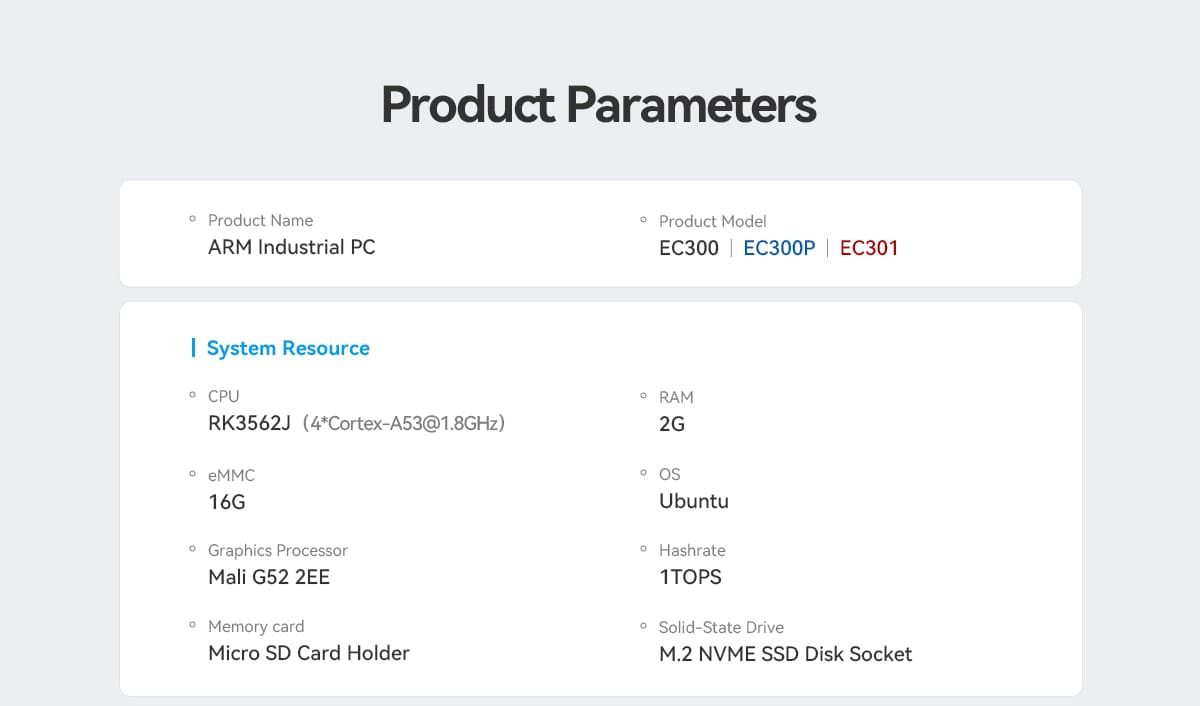

| Kategorie | Parameter | EC100 | EC301 | EC500 | EC700 |
|---|---|---|---|---|---|
| System Resources | CPU | RK3506J | RK3562J | RK3572J | RK3588J |
| Prozessor | 3 × Cortex-A7 | 4 × Cortex-A53 | 2*Cortex-A73 6*Cortex-A53 | 4*Cortex-A76 4*Cortex-A55 |
|
| RAM | 512MB | 2GB | 4GB | 8 GB | |
| eMMC | 4GB | 16GB | 64GB | 128GB | |
| GPU | N/A | Mali-G52 2EE | Mali G310 | Mali G610 MC4 | |
| NPU | N/A | 1 TOPS | 4Tops | 6 TOPS (Expandable) | |
| SD Card Slot | Micro SD Card Slot | Micro SD Card Slot | Micro SD Card Slot | Micro SD Card Slot | |
| SSD | N/A | M.2 NVMe SSD Slot | M.2 NVMe SSD Slot | M.2 NVMe SSD Slot | |
| Betriebssystem | Eingebettetes Linux | Eingebettetes Linux | Eingebettetes Linux | Eingebettetes Linux | |
| Wireless Communication | 4G/5G | Optional | Optional | Optional | Optional |
| Wi-Fi | N/A | ✓ | ✓ | Optional | |
| HaLow Wi-Fi | Optional | N/A | N/A | N/A | |
| Netzwerk-Schnittstelle | Gigabit Ethernet | N/A | 1 | 2 | 2 |
| Fast Ethernet | 2 | 1 | N/A | N/A | |
| Kommunikationsschnittstellen | USB 2.0 | N/A | 2 | N/A | N/A |
| USB 3.0 | N/A | N/A | 2 | 4 | |
| Debug Interface | Typ-C | Typ-C | Typ-C | Typ-C | |
| LED | 4 (2 user-programmable) | 6 (4 user-programmable) | 6 (4 user-programmable) | 4 (0 user-programmable) | |
| RS232 | N/A | 1 | 1 | 1 | |
| RS485 | 2 | 2 | 3 | 2 | |
| CAN | 2 | 2 | N/A | N/A | |
| Digitaler Eingang (DI) | N/A | 2 | 2 | 1 | |
| Digitaler Ausgang (DO) | N/A | 2 | 2 | 2 | |
| Analog Input (AI) | N/A | N/A | 2 | N/A | |
| Analog Output (AO) | N/A | N/A | 2 | N/A | |
| Multimedia | Touchscreen | N/A | N/A | N/A | N/A |
| HDMI Output | N/A | ✓ | ✓ (1 Input / 1 Output) | ✓ (1 Input / 1 Output) | |
| Audioausgang | N/A | 3.5mm Earphone Jack | 3.5mm Earphone Jack | 3.5mm Earphone Jack | |

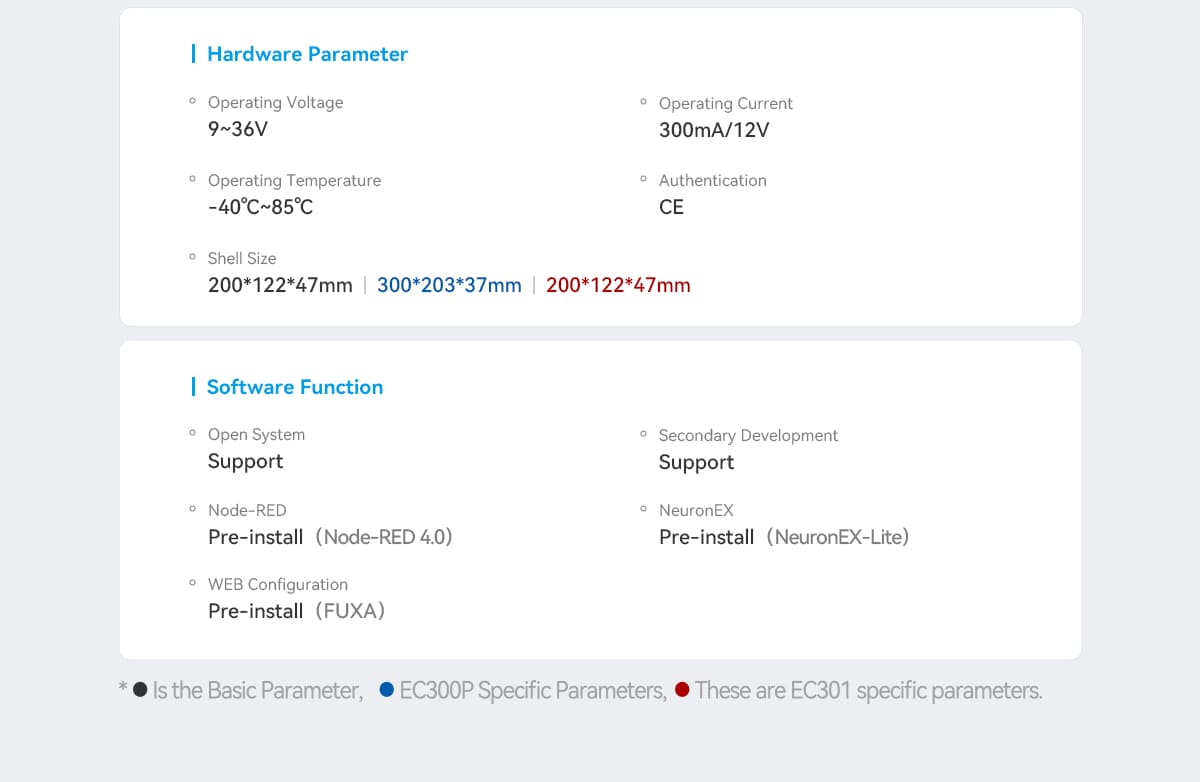

| Hardware-Spezifikationen | Betriebsspannung | 9-36V | 9-36V | 9-36V | DC12V |
| Betriebsstrom | 75mA / 12V | 350mA / 12V | -mA/12V | 3000mA/12V | |
| Zertifizierung | CE | CE | CE | CCC | |
| Betriebstemperatur | -40~85°C | -40~85°C | -40~85°C | -20~70℃ | |
| Software-Funktionen | Fernwartung | ✓ | ✓ | ✓ | ✓ |
| Fernverwaltung | ✓ | ✓ | ✓ | ✓ | |
| Node-RED | ✓ | ✓ | ✓ | ✓ | |
| NeuronEX | ✓ | ✓ | ✓ | ✓ | |
| Fuxa | ✓ | ✓ | ✓ | ✓ | |
| Sekundäre Entwicklung | ✓ | ✓ | ✓ | ✓ | |
| Offenes System | ✓ | ✓ | ✓ | ✓ |
Quick Access to EC Series Products →

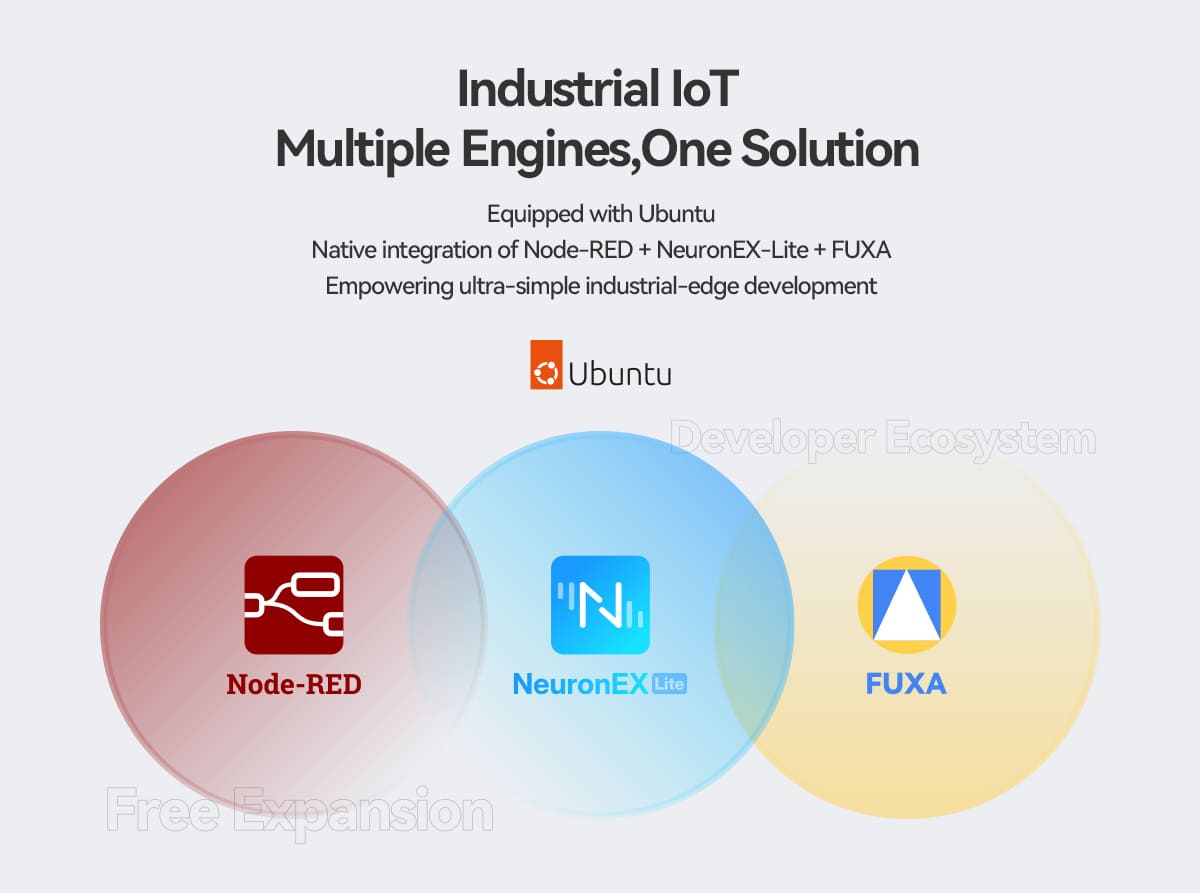

Hauptfunktionen

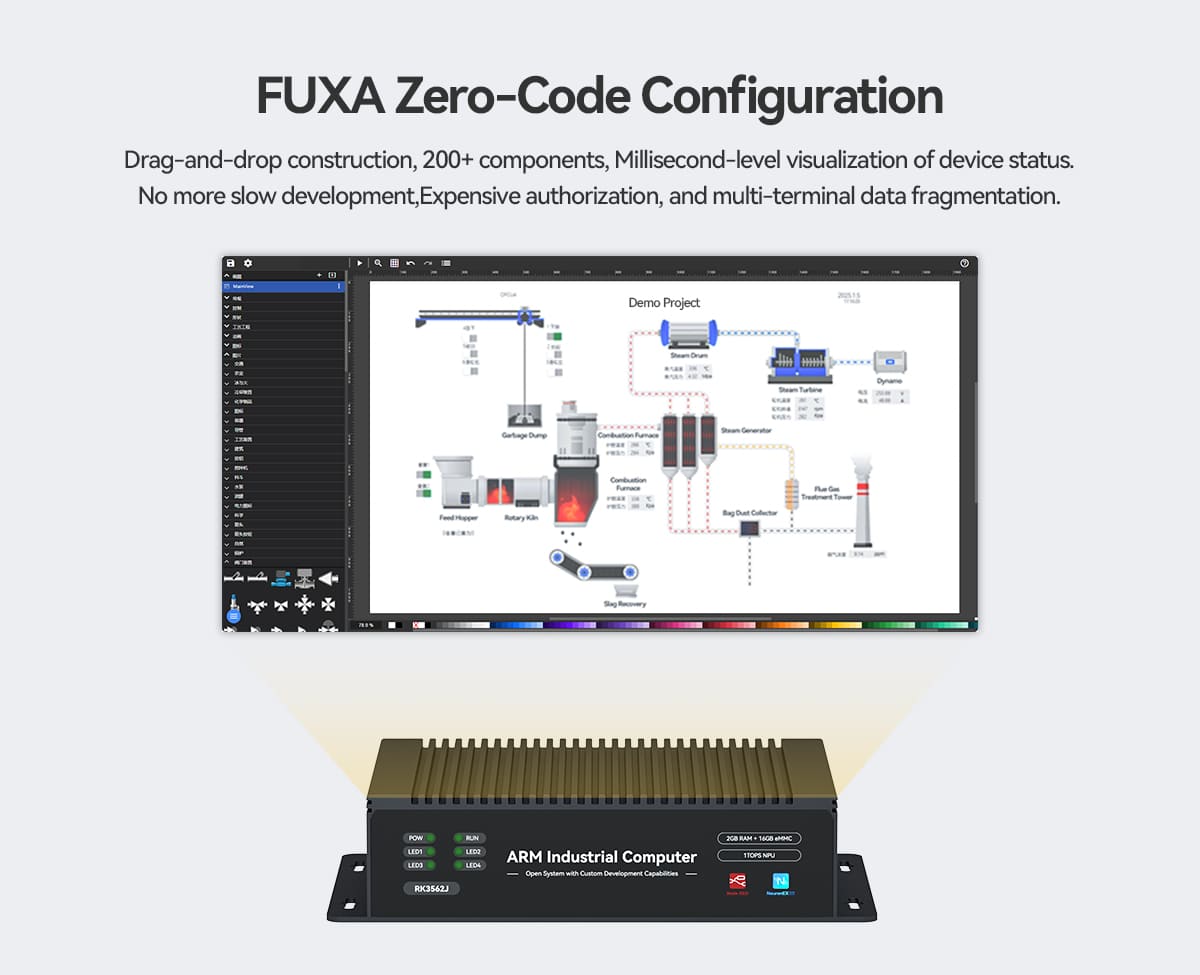

FUXA Zero-Code Configuration
Drag-and-drop construction, 200+ components, millisecond-level visualization of device status.
No more slow development, Expensive authorization, and multi-terminal data fragmentation.
NeuronEX Protocol Hub Integration
With built-in NeuronEX Industrial Protocol Hub, the EC300 connects over 100 industrial protocols, enabling efficient data acquisition and seamless integration of PLCs, meters, and field devices.

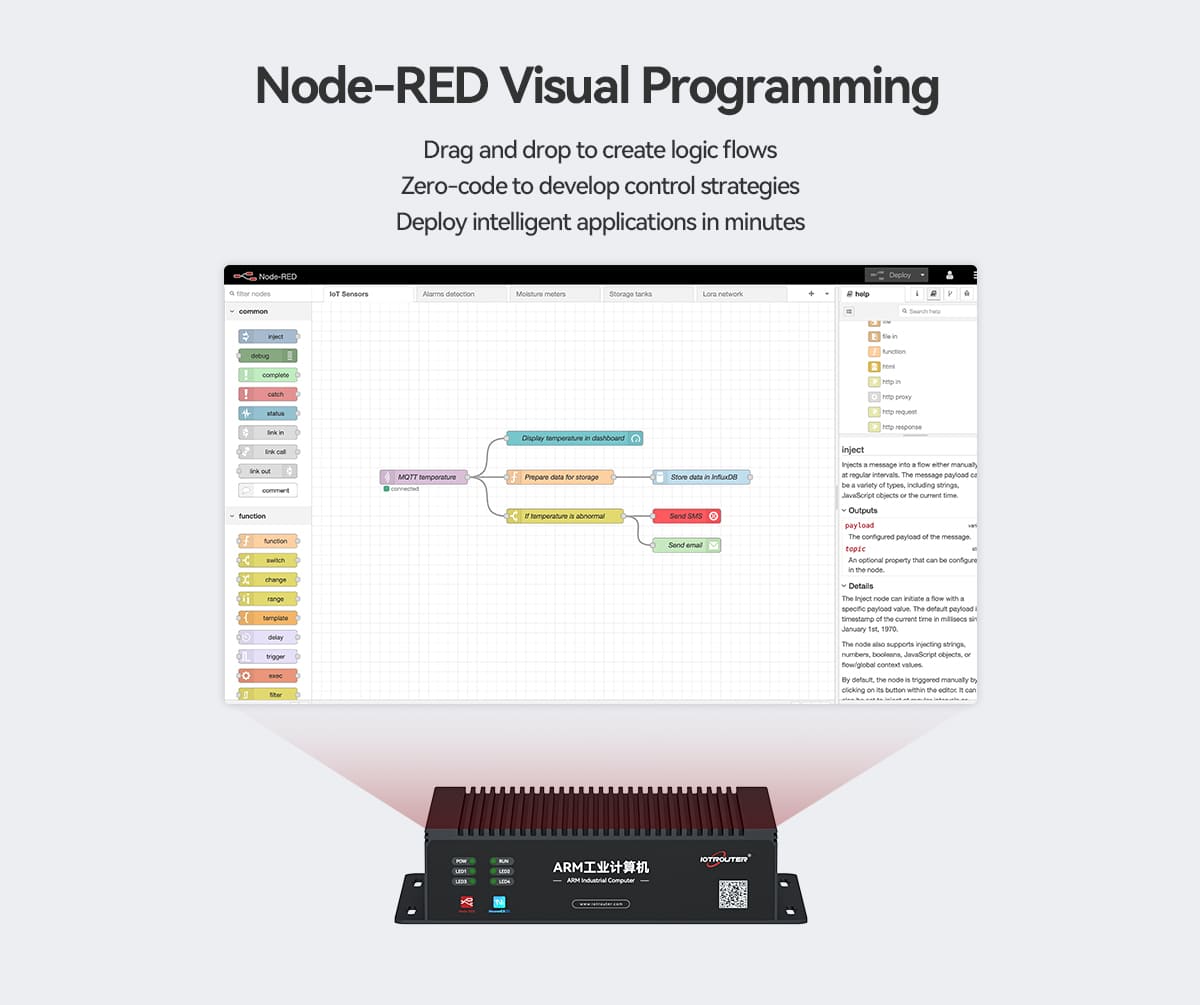

Visuelle Programmierung mit Node-RED
With built-in Node-RED, the EC300 simplifies industrial automation development through visual workflows, enabling flexible control logic creation and rapid deployment.

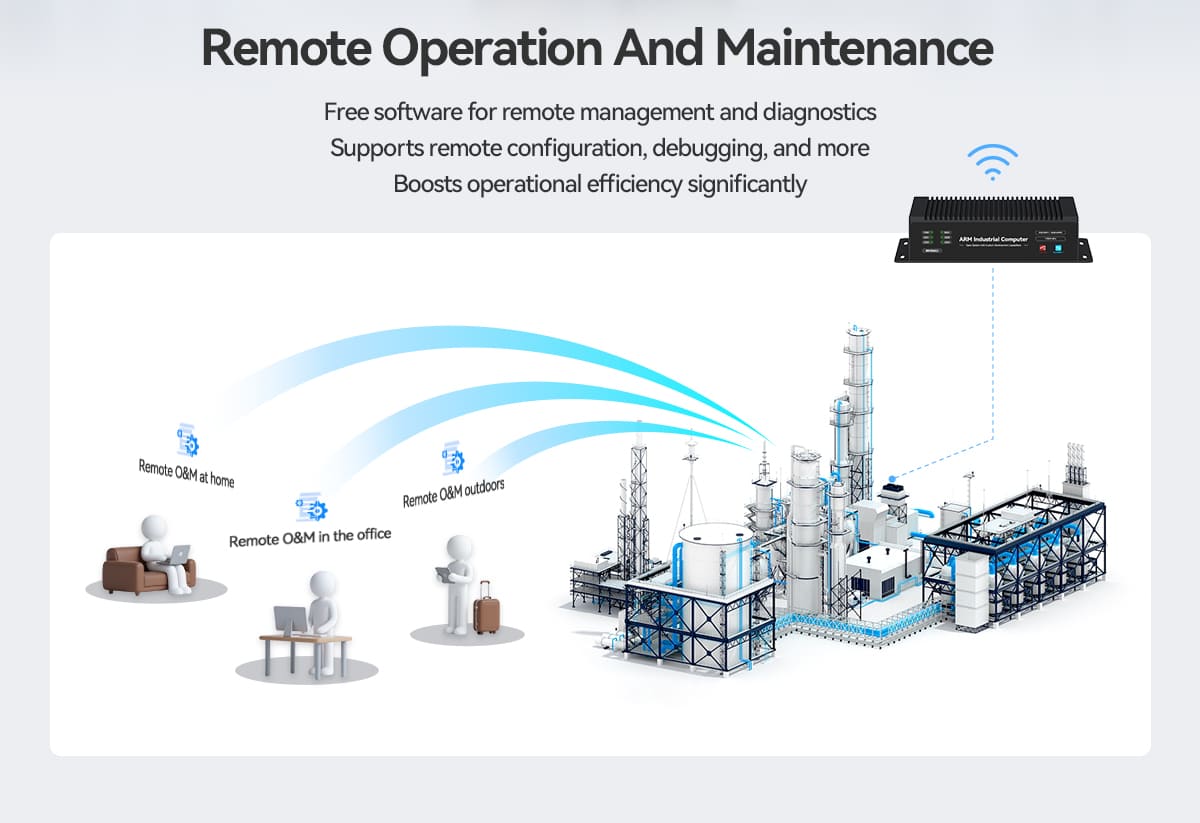

Fernverwaltung
Free remote operation and maintenance software supports remote management, diagnostics, configuration, and debugging, and maintains devices to reduce downtime and simplify field operations.

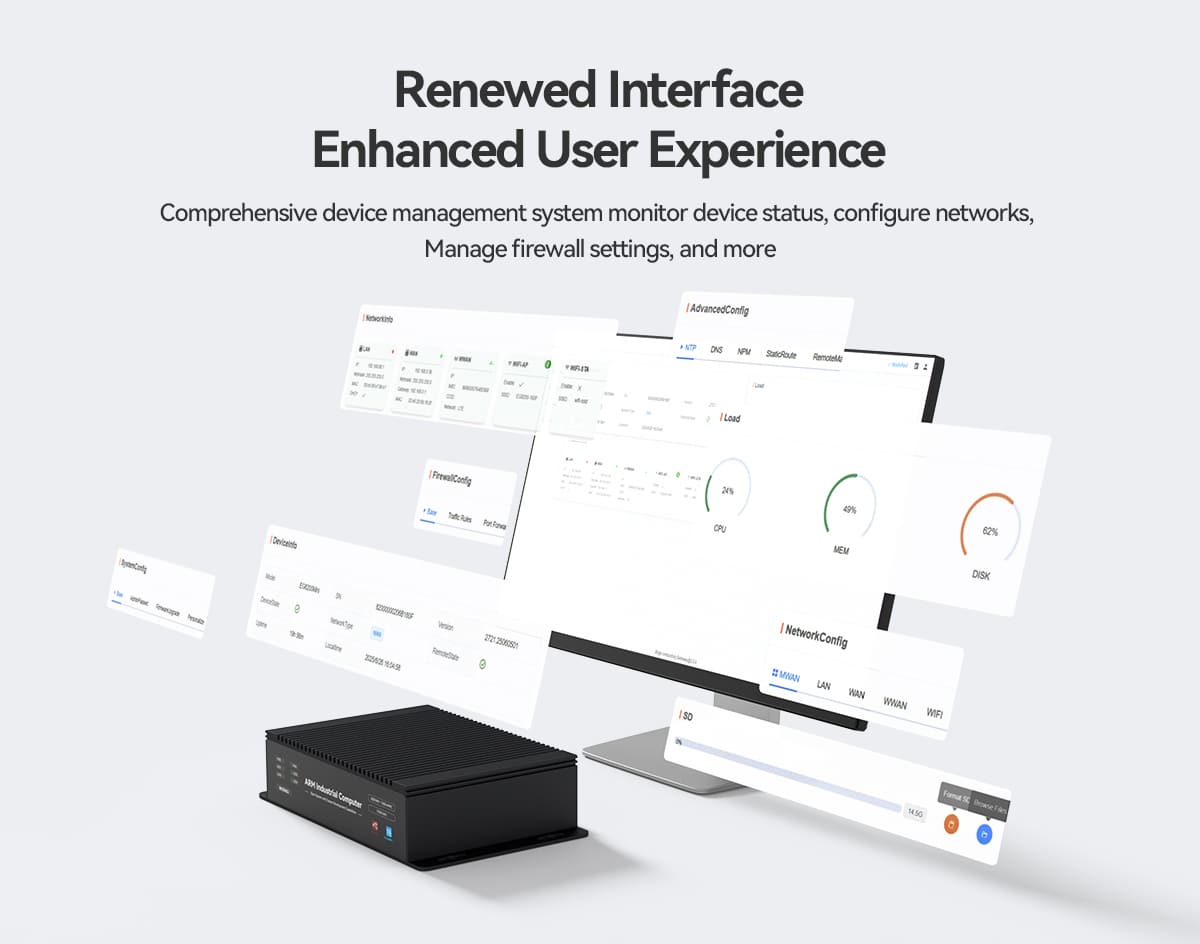

Comprehensive Device Management
Built-in comprehensive device management system monitors device status and configures networks. Manage firewall settings and more.
Typical Use Cases
1. Develop Customized Industrial Applications Faster
Equipment manufacturers and system integrators often need flexible industrial platforms to build customized solutions, but traditional closed systems limit software customization and increase development effort.
Based on an open ARM Linux platform, the EC300 series allows developers to deploy applications, integrate industrial software, and extend system functions easily. With Node-RED, NeuronEX-Lite, and optional touchscreen HMI support, it helps accelerate the development of smart machines and industrial applications.
2. Build Flexible Local SCADA and Monitoring Systems
Factories often need to connect different machines, PLCs, and industrial devices into one monitoring system, but traditional solutions can require multiple hardware layers and complex software integration.
The EC300 series combines open computing, FUXA SCADA, and industrial protocol support in one platform. It enables engineers to build customized dashboards, process data locally, and create scalable monitoring solutions with lower system complexity.
3. Enable AI-Ready Industrial Applications
Industrial systems increasingly require local intelligence and faster response without relying entirely on cloud computing.
With the RK3562J processor, GPU acceleration, and 1 TOPS NPU, the EC300 series supports lightweight AI vision and intelligent edge applications for visual inspection, monitoring, and local data analysis.
Der Kernvorteil
The EC300 series combines an open ARM Linux industrial computer platform with HMI, SCADA, edge computing, and AI capabilities in one compact solution. It can build customized industrial applications faster and more efficiently.
FAQ
1. Is EC300 an industrial gateway or an industrial computer?
EC300 is an open ARM-based industrial computer designed for edge computing, industrial applications, and system integration.
Unlike traditional gateways that mainly focus on data collection and protocol conversion, EC300 provides an open Linux environment for application deployment, software customization, and industrial solution development.
2. Can I install and run my own applications on EC300?
Yes. EC300 is based on an open Linux operating system, allowing developers to deploy customized applications and extend system functions according to project requirements.
Developers can run their own industrial applications, integrate third-party software, and customize solutions without being limited to fixed device functions.
3. Can EC300 connect to PLCs and industrial devices?
Yes. With integrated NeuronEX software and industrial interfaces, EC300 can connect with PLCs, sensors, meters, and other field devices.
It enables industrial data acquisition, protocol conversion, and data integration for applications such as equipment monitoring, automation systems, and industrial IoT solutions.
4. Can EC300P be used as an industrial HMI?
Yes. The EC300P model integrates a 10-point capacitive touchscreen, enabling local equipment operation and visualization.
Combined with Node-RED and FUXA SCADA, EC300P allows developers to create customized HMI interfaces for machine monitoring, operation, and industrial applications.
5. Can I install JDK on EC300?
Yes. EC300 supports JDK installation in the Linux environment. For Java applications, an ARM64-compatible JDK version is required. OpenJDK 17 ARM64 is recommended for better compatibility.

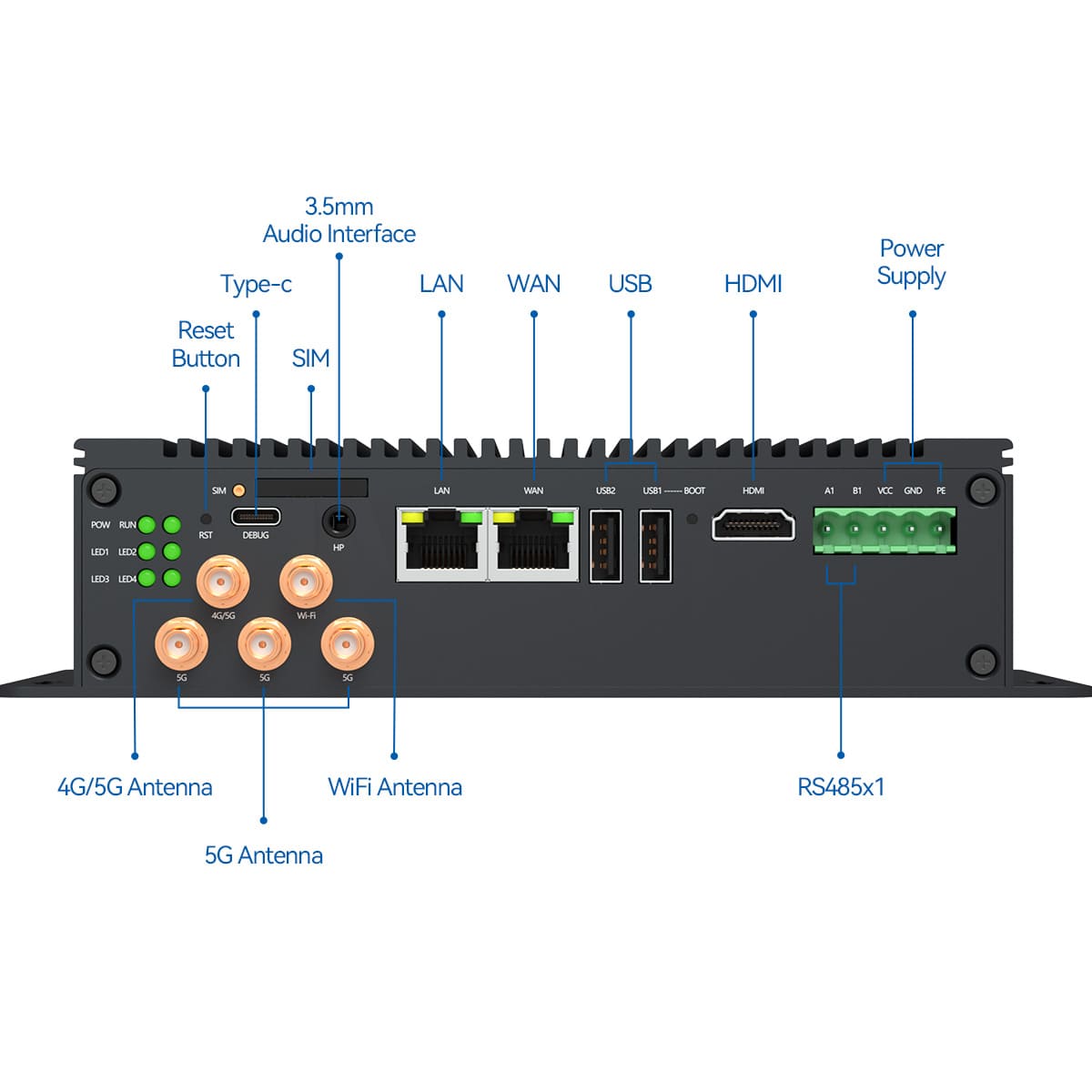

Produktgröße und Schnittstellen

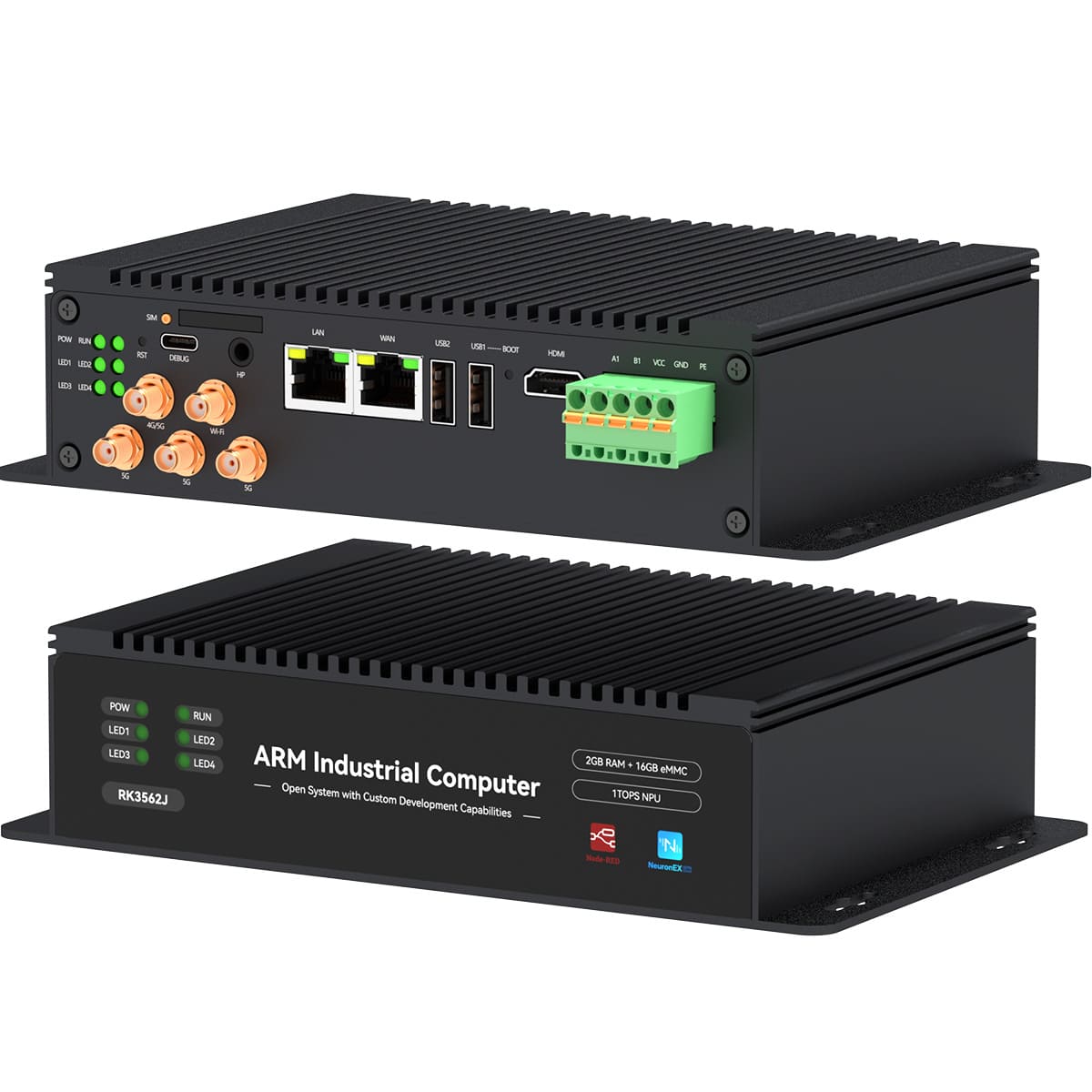

EC300 high-performance ARM PC:
EC301 Multi-Interface ARM Industrial Computer:
EC300P Touchscreen ARM Industrial Computer:

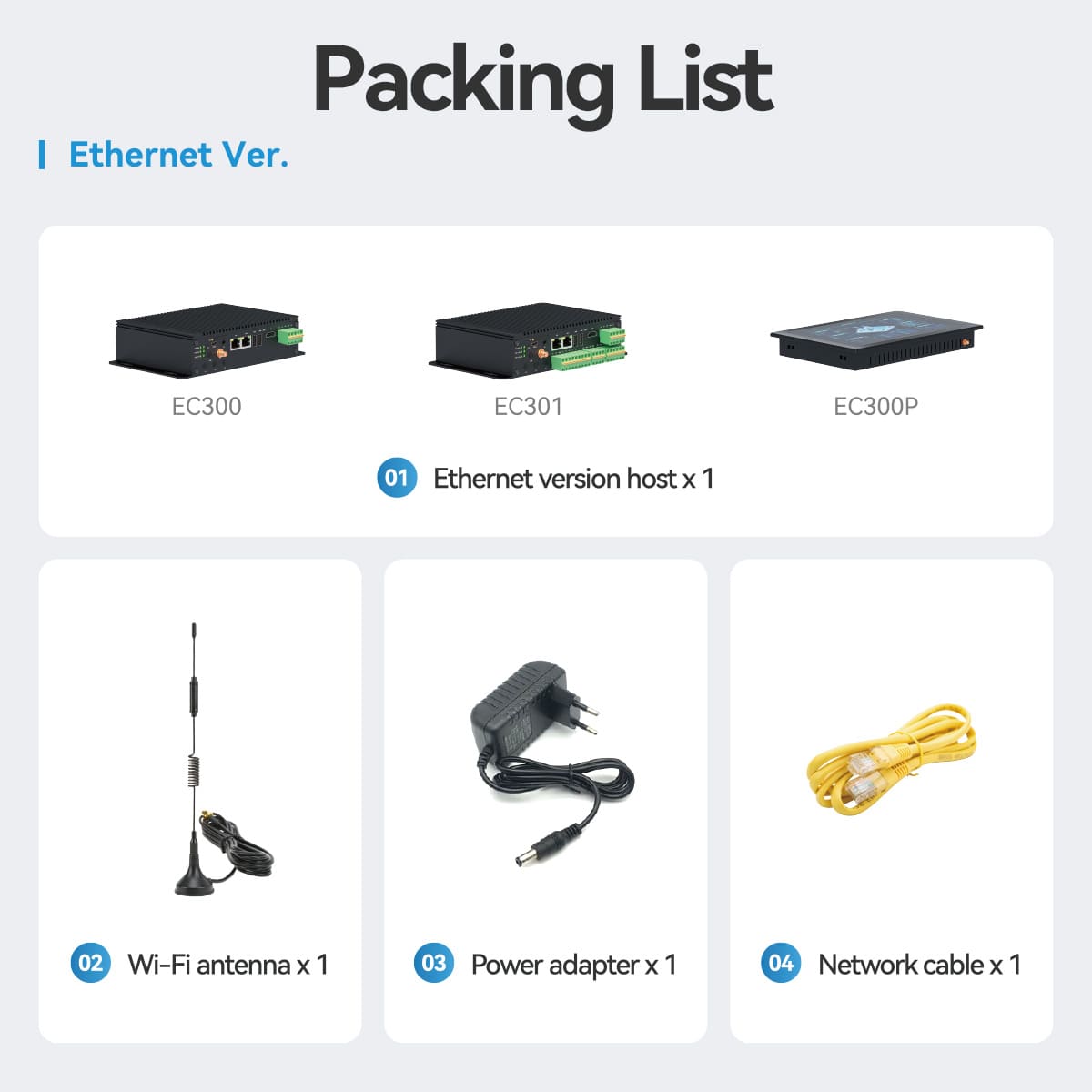

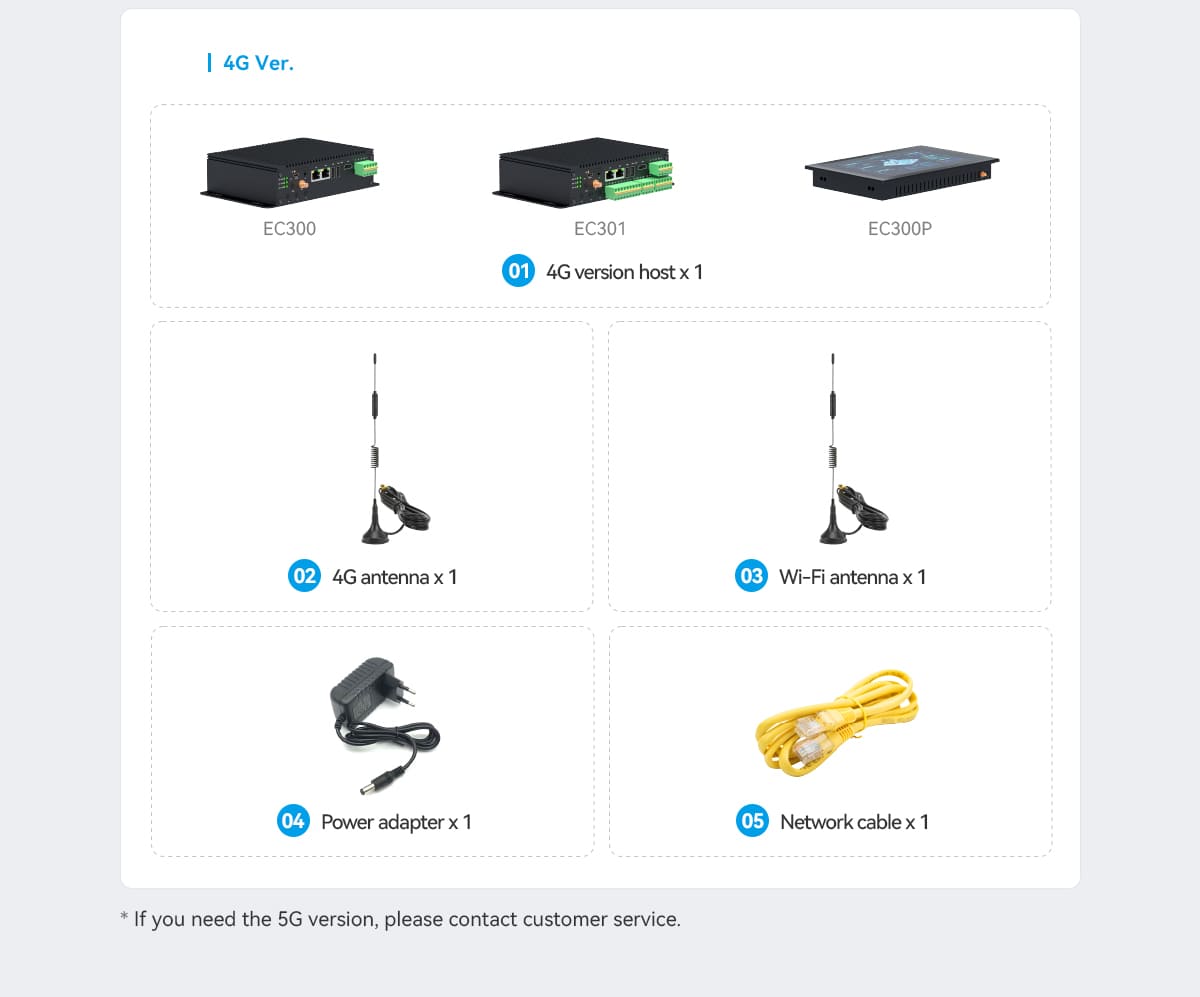

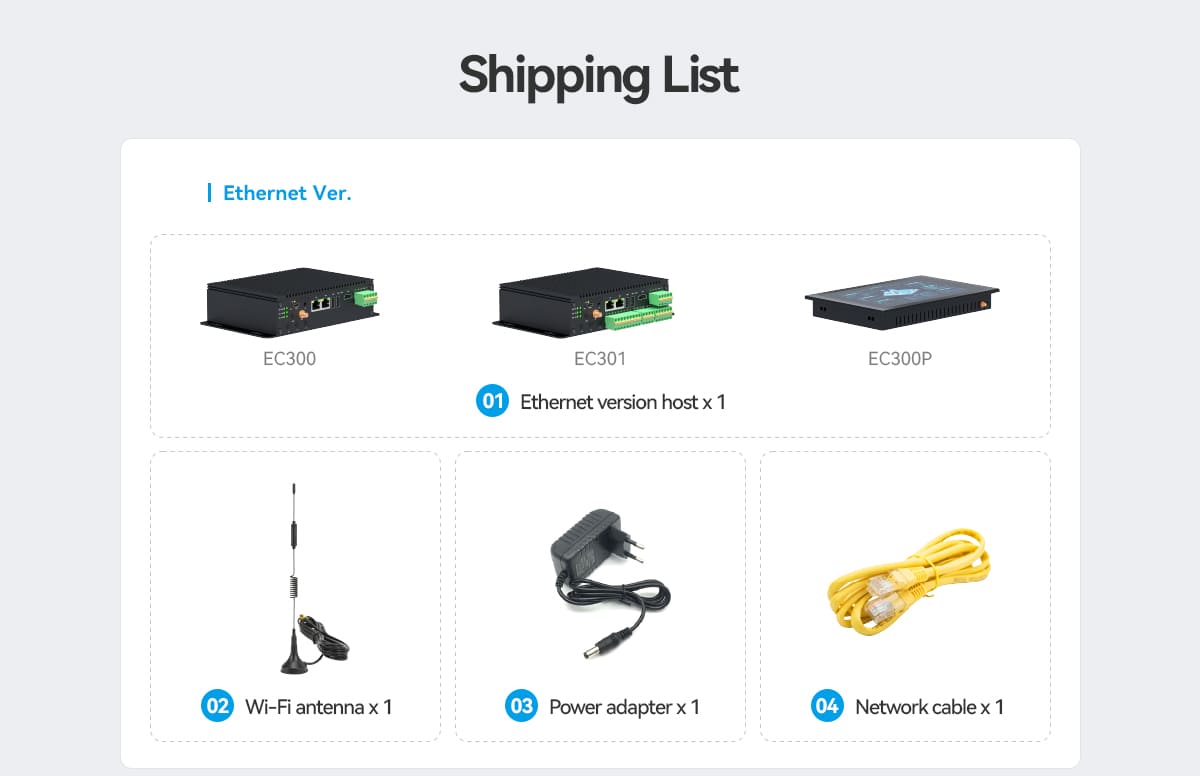

Packliste
EC300 high-performance ARM PC:
EC301 Multi-Interface ARM Industrial Computer:
EC300P Touchscreen ARM Industrial Computer:
