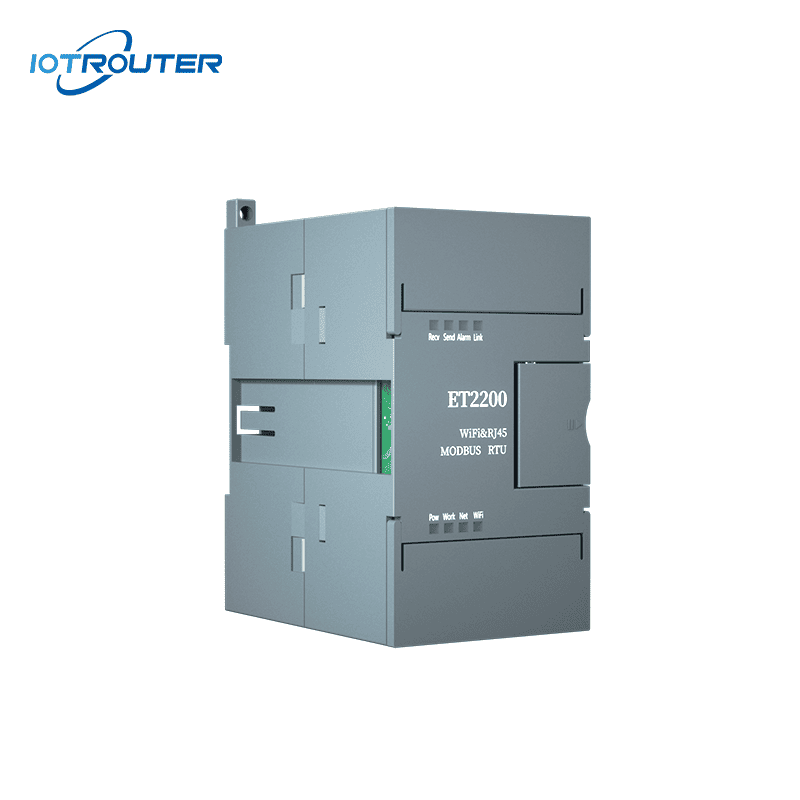

ET2200 DIN-Rail WiFi Transmission Terminal
1. Interface Type: Wi-Fi Interface/RJ45/RS485
2. Protocol Support: 802.11 b/g/n/MQTT/TCP/UDP ……
3. Network Type: Automatic WiFi/WAN Switching
4. Special Features:
– Built-in 150 Mbps Wi-Fi & 100 Mbps Adaptive Ethernet
– Wi-Fi/Ethernet Auto Switching & Priority Customization
– “One machine, one password” unique authentication

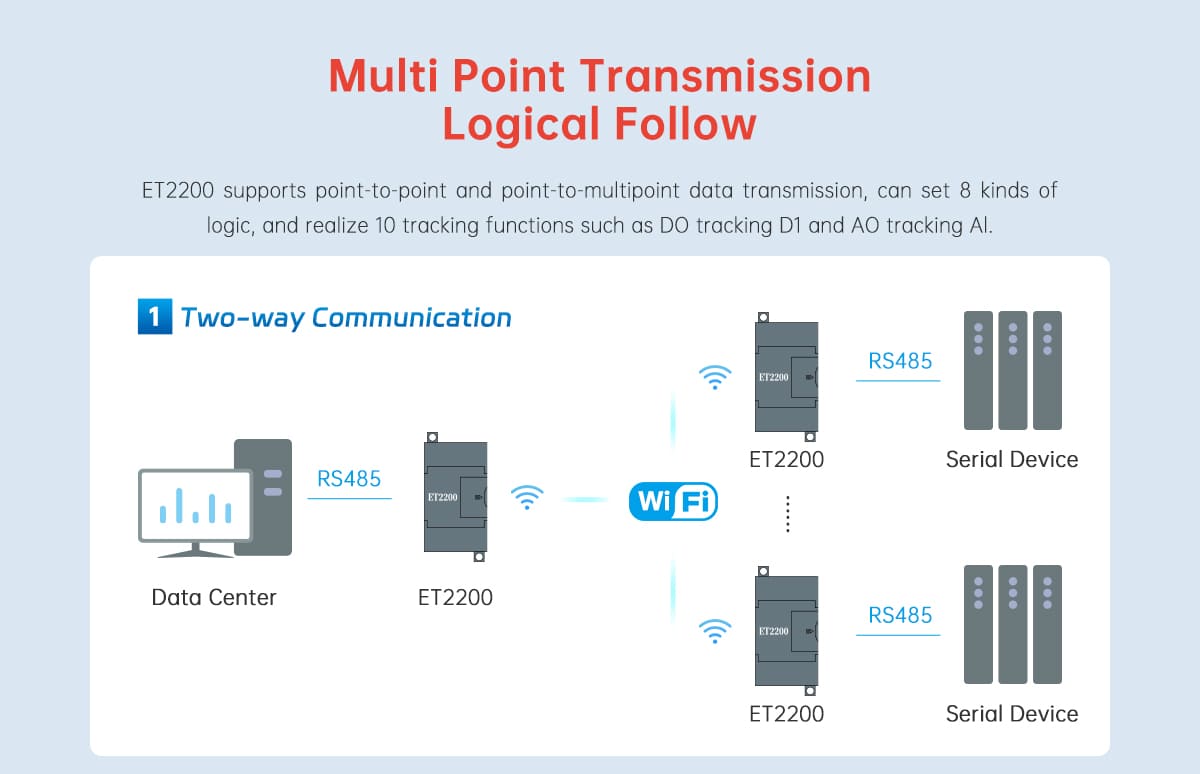

– Supports MQTT, Modbus RTU, TCP, UDP multi-protocol pass-through

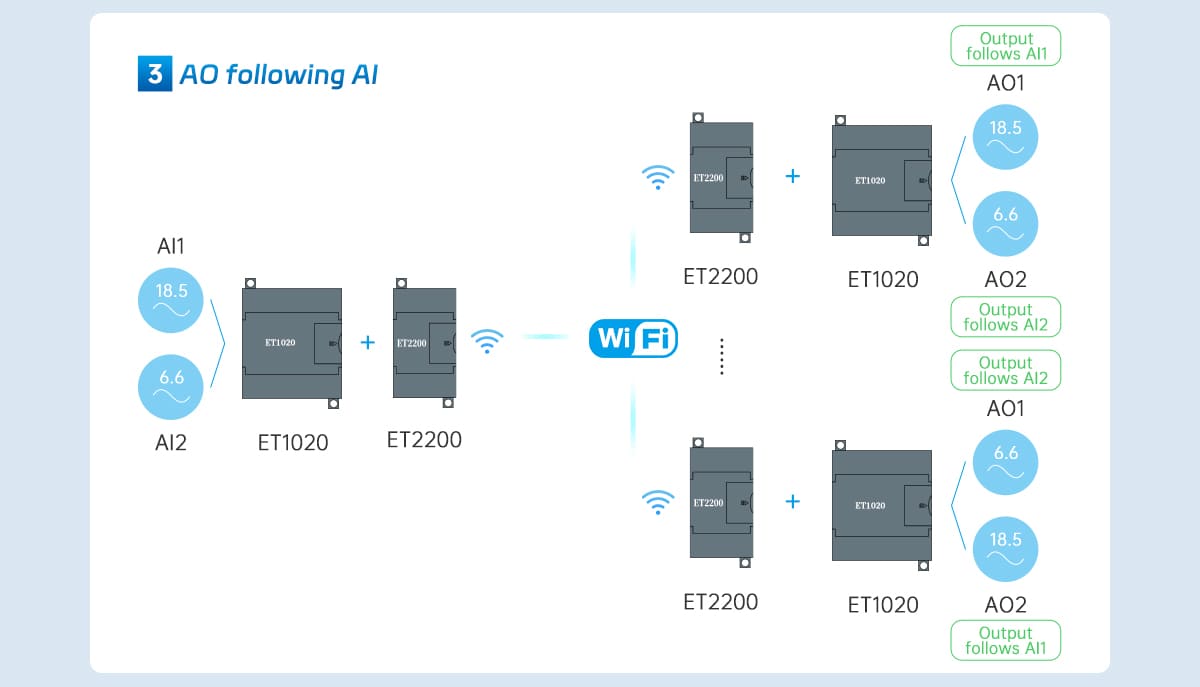

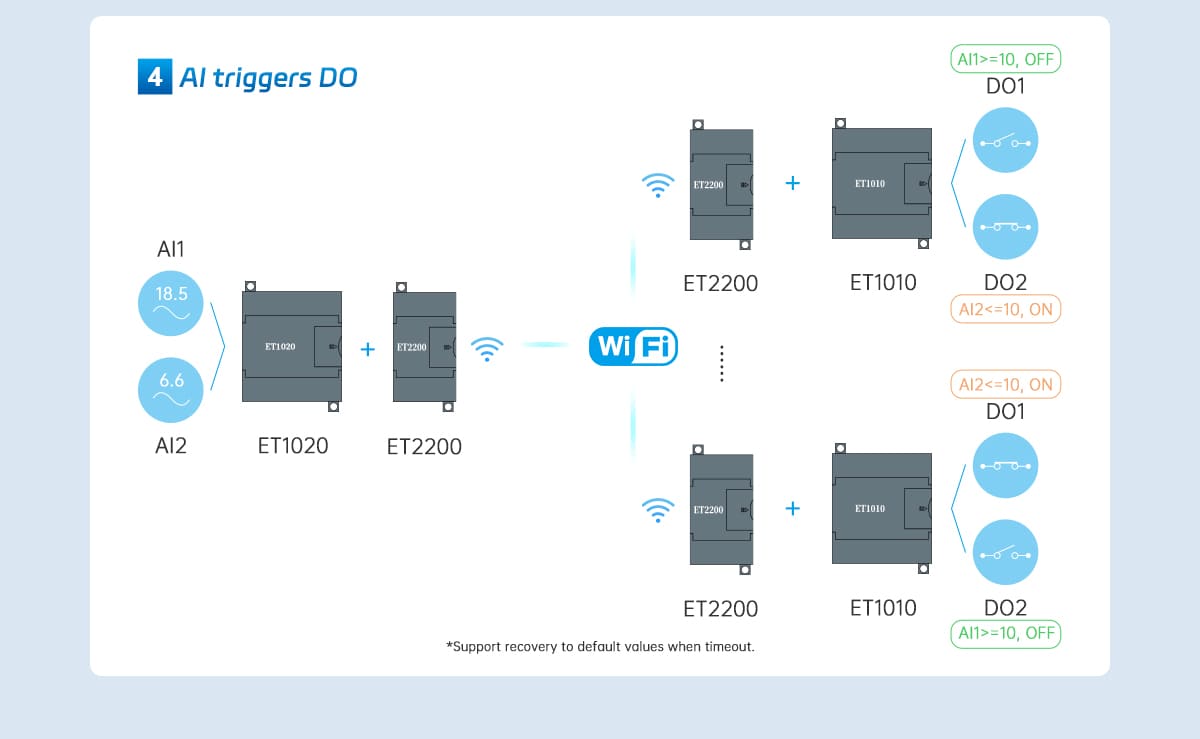

– 8 Logic Follow & AI Threshold Trigger DOs

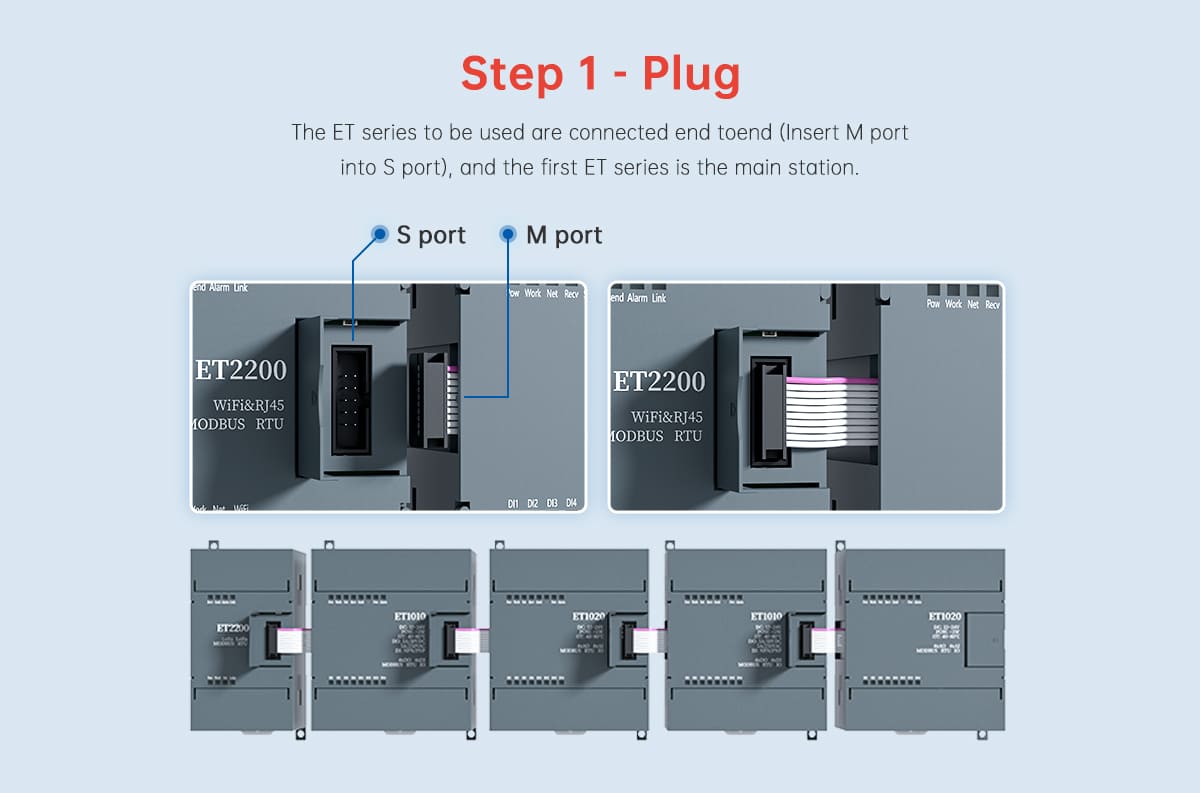

– IO head-to-tail cascade expansion

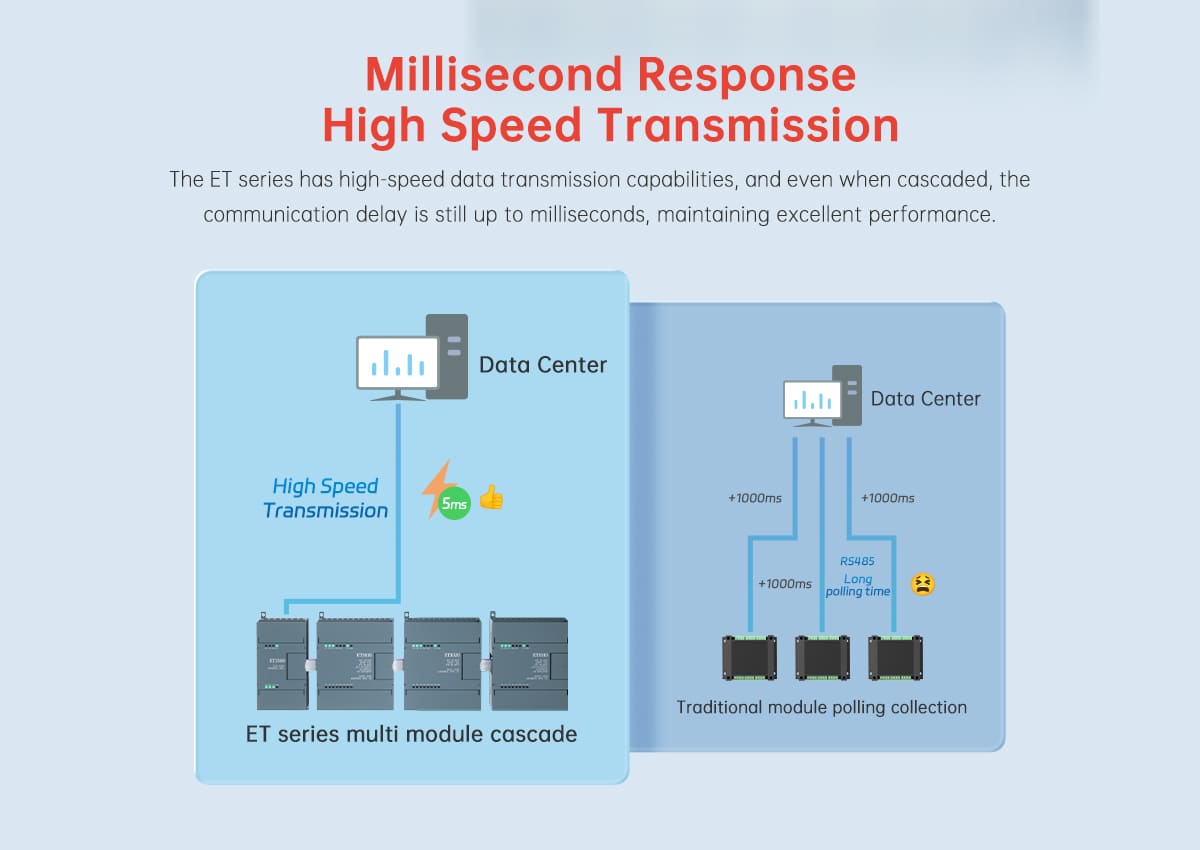

– Millisecond data response
– Industrial-grade hardware protection
Mais pormenores…

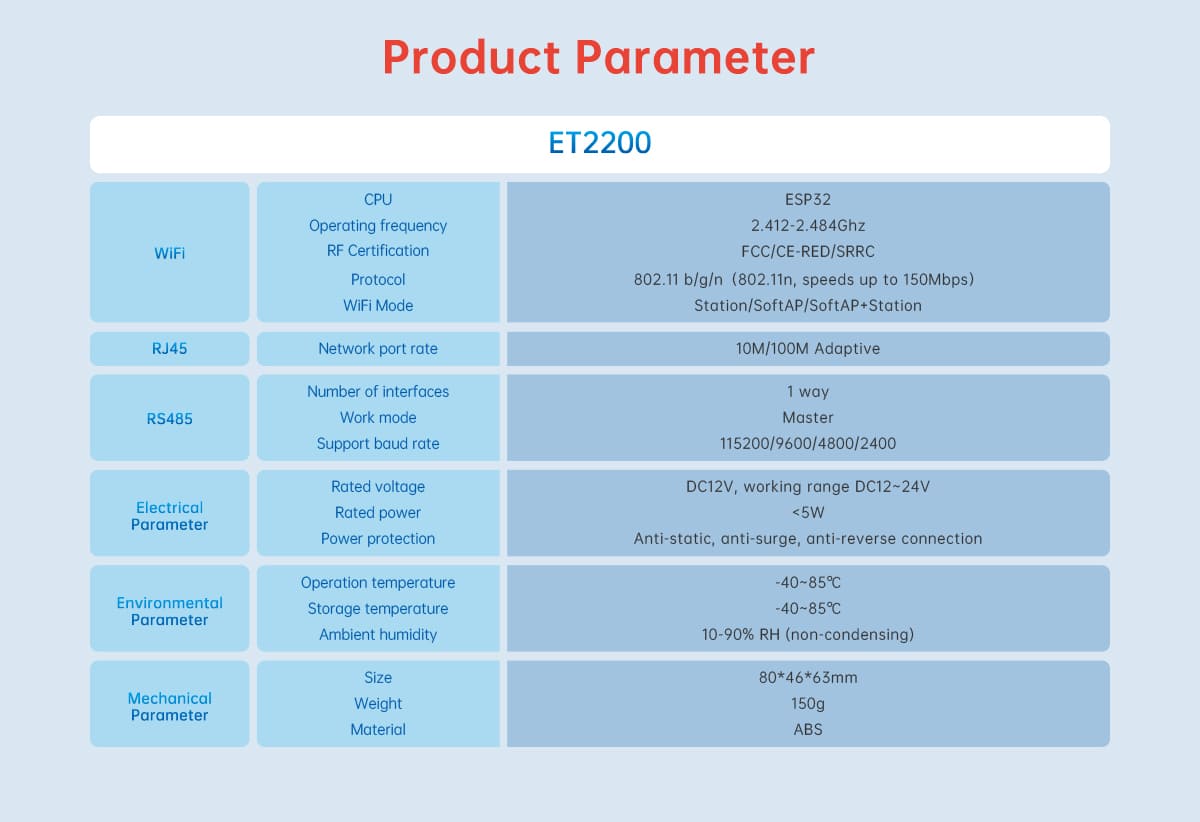

Especificação
| Category | Parâmetro | Value |
| WiFi | Solução de chip | ESP32 |
| Operating Frequency | 2.412-2.484Ghz |
| RF Certification | FCC/CE-RED/SRRC |
| Protocolo | 802.11 b/g/n (802.11n up to 150Mbps) |
| Modo WiFi | Station/SoftAP/SoftAP+Station |
| RJ45 | Port Speed | 10M/100M auto-negotiation |
| RS485 | Interface Quantity | 1 channel |
| Operation Mode | Mestre |
| Supported Baud Rates | 115200/9600/4800/2400 |
| Parâmetros eléctricos | Tensão nominal | DC12V（Operating Range DC12~24V） |
| Potência nominal | <5W |
| Proteção de energia | ESD Protection, Surge Protection, and Reverse Polarity Protection |
| Parâmetros ambientais | Temperatura de funcionamento | -40~85℃ |
| Temperatura de armazenamento | -40~85℃ |
| Humidade | 10-90% RH (sem condensação) |

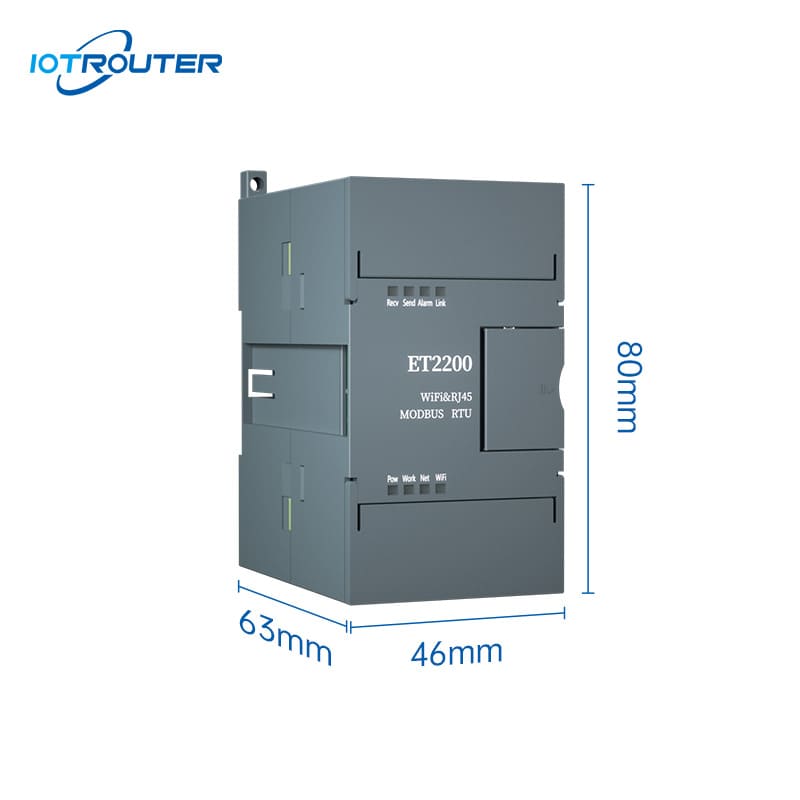

| Parâmetros mecânicos | Dimensions | 80*46*63mm |

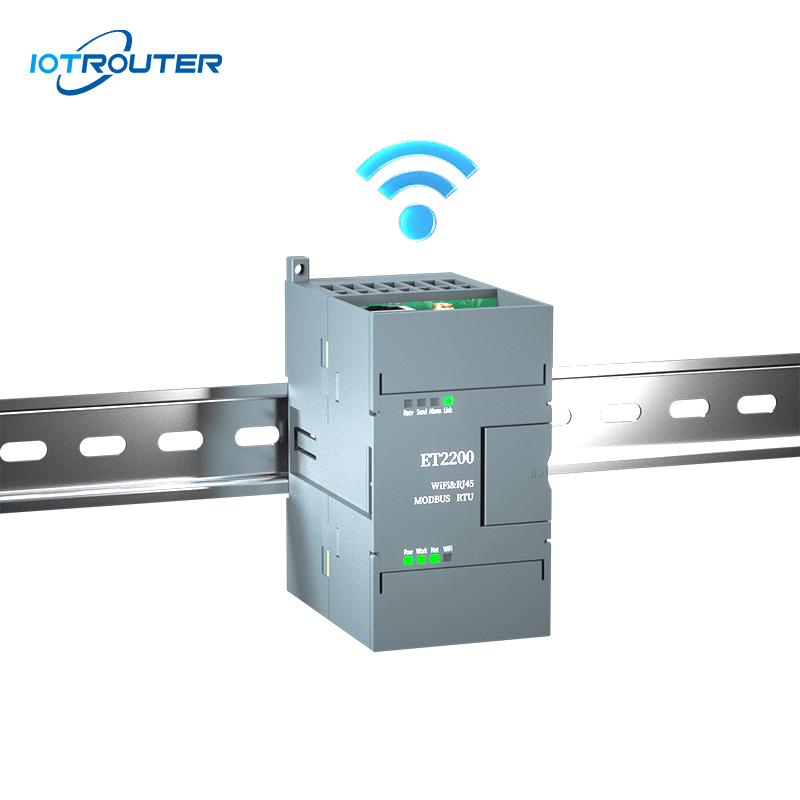

| Mounting | DIN35MM rail mounting |
| Peso | 150g |
| Material | ABS |
