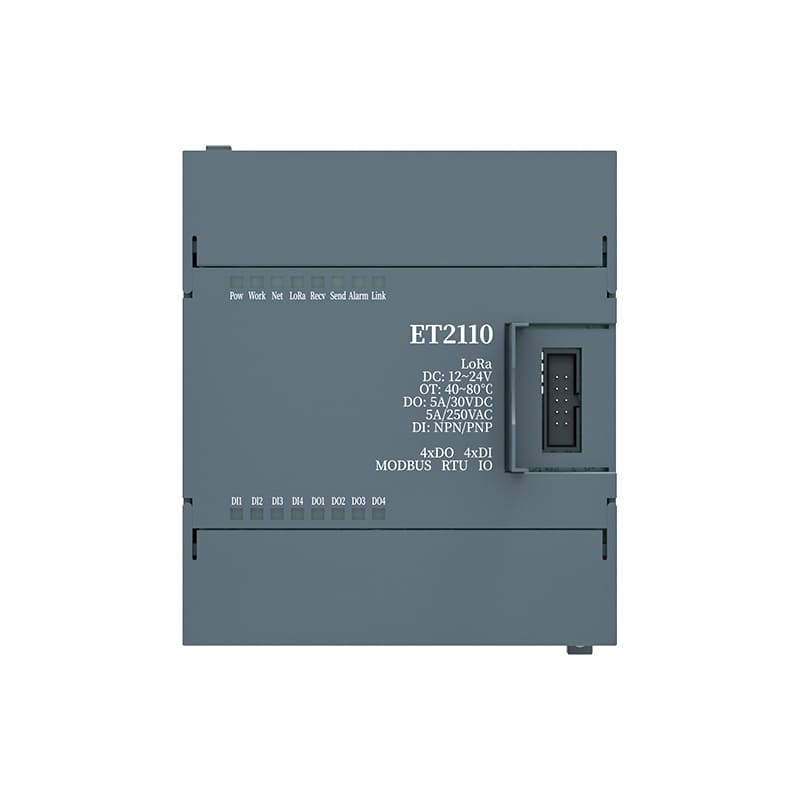

ET2110 LoRa Data Transmission Terminal

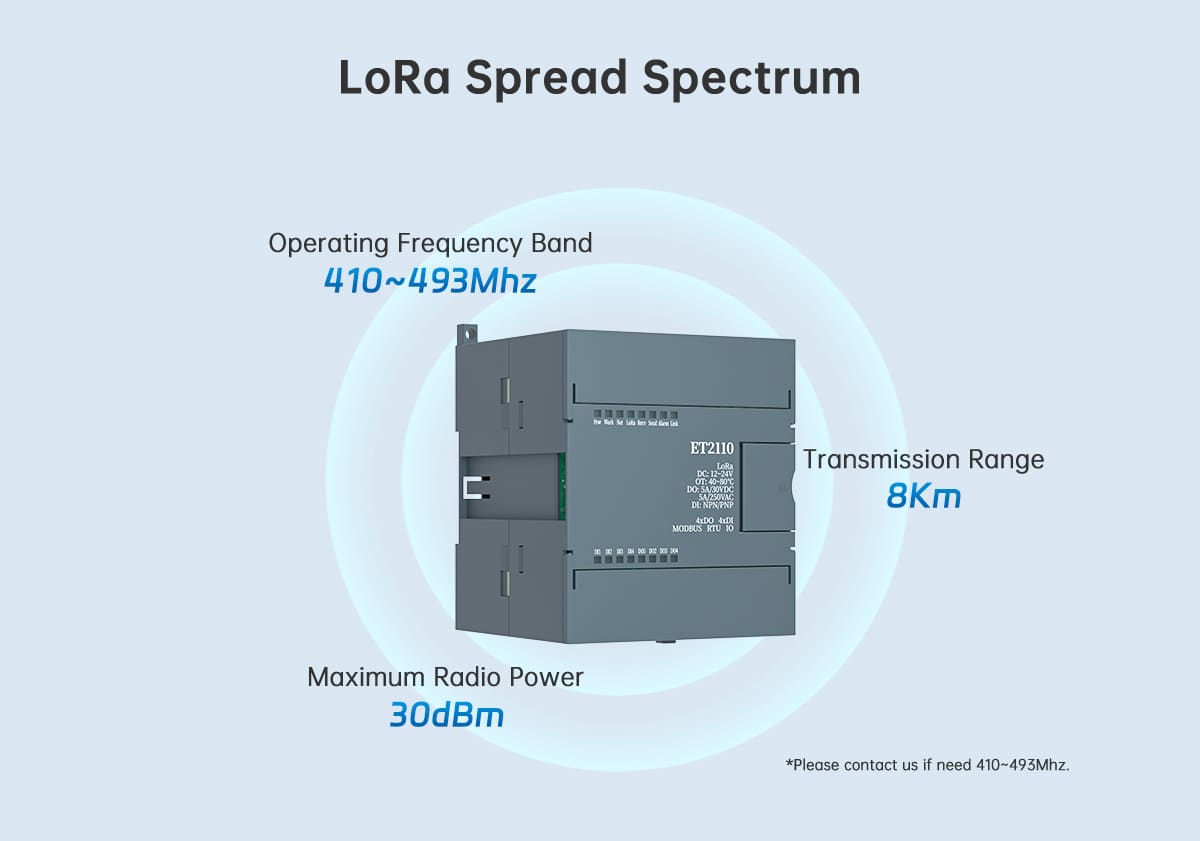

The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band
The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band
The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band
controlador IO remoto
The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band

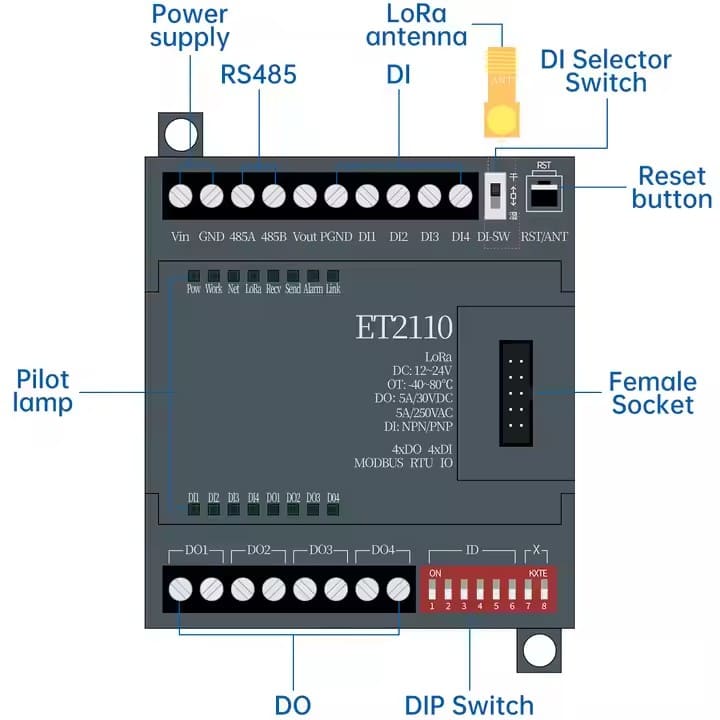

Tipo de interface:  1RS485/4DI/4DO
Suporte de protocolo:  pass-through/relay ……
Tipo de rede:  LoRa wireless communication
Funções em destaque:
1. 8 km ultra-long range communication
2. RSSI signal strength indication
3. Customized key data encryption
4. Transmission & Multi-level relay modes free switching
5. DO/D I, AO/AI logic following and AI threshold trigger DO

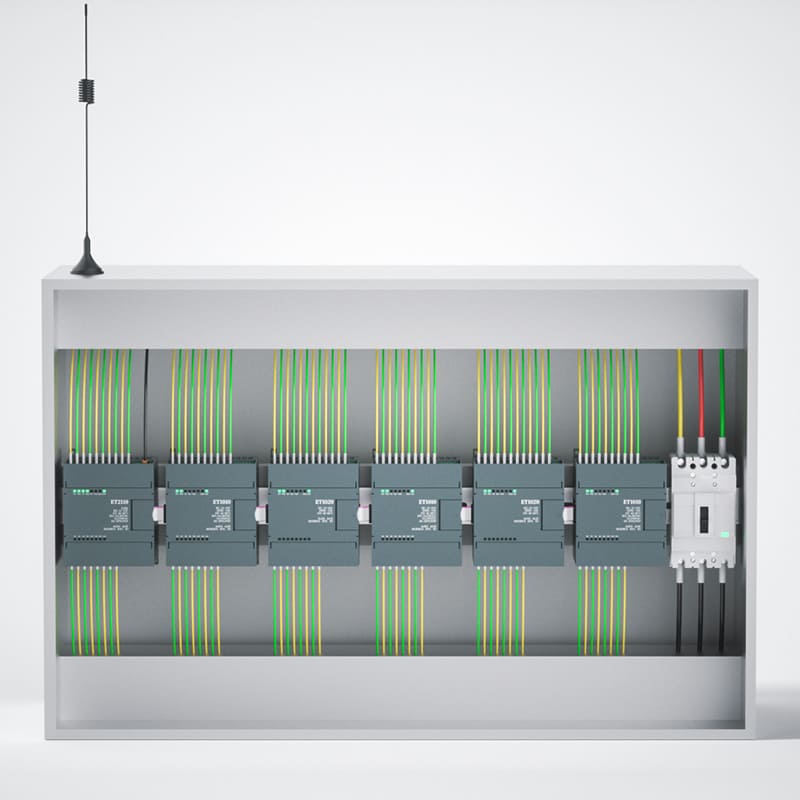

6. Head-to-tail cascade expansion IO, up to 10 slaves

Mais pormenores…

Categorias: ,
Obter amostras

Descrição

ET2110 LoRa Data Transmission Terminal adopts the new LoRa spread spectrum technology, providing longer distance, faster speed, and stronger anti-interference ability. Support frequency band 410~493MHz, 850~930MHz, the maximum transmission power can reach 30 dBm, and the communication distance can reach 8 km. The product supports RSSI signal strength indication, which can evaluate signal quality, improve the communication network, and measure distance. The product also supports custom keys to protect data security, effectively enhancing the confidentiality of user data.

The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency bandThe ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band The ET2110 is a LoRa Data Transmission Terminal of the ET series, utilizing the new LoRa spread spectrum technology, with a communication range of up to 8 km (max. transmit power 30 dBm), and supporting the 410-493 MHz frequency band



Especificação

ITEMDescrever
LORASolução de chipLLCC68
Potência de rádio30dBm/27dBm/24dBm/21dBm
Velocidade da rádio62500/38400/19200/9600/4800/2400
Comprimento da transmissão200Byte
Modo de trabalhoModo normal/modo de atraso
Distância de referência10km (céu limpo e aberto, ganho de antena 5dBi, altura 2,5m, velocidade do ar 2400)
RS485Número de interfaces1
Modo de funcionamentoMestre
Taxas de transmissão115200/9600/4800/2400
DONúmero de interfaces4
Output TypeSaída de relé
Relay Capacity5A/30VDC 5A/250VAC
DINúmero de interfaces4
Input TypeNPN/PNP/Thousand Contacts
Electrical CharacteristicsOptocoupler Isolation
Parâmetros eléctricosTensão nominalDC12V, gama de funcionamento DC12~24V
Potência nominal6.4W
Proteção de energiaLigação anti-estática, anti-sobretensão e anti-reversão
Parâmetros ambientaisTemperatura de funcionamento-40~85℃
Temperatura de armazenamento-40~85℃
Humidade ambiental5%~95%RH (Sem condensação)

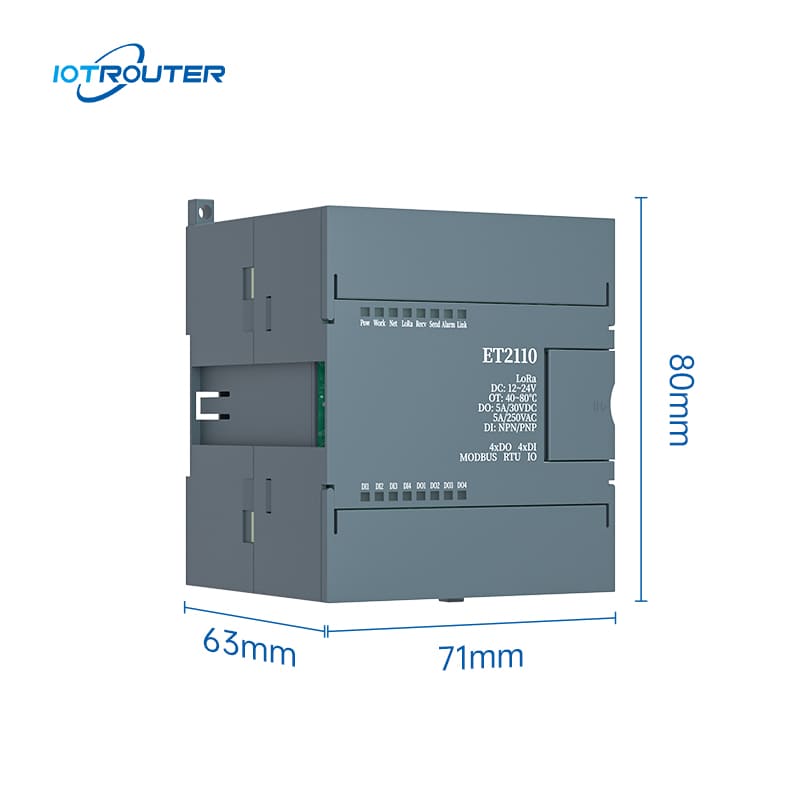

Parâmetros mecânicosTamanho80*71*63mm
Peso150g
MaterialABS
