EG8200Lite – Cost-Effective Industrial IoT Edge Gateway for Device Connectivity

Описание

EG8200Lite is a cost-effective industrial IoT edge gateway designed for industrial data acquisition, protocol conversion, and device-to-cloud integration. With versatile industrial interfaces and a redesigned web configuration interface for easier deployment, it also provides optimized integration as an official hardware partner of ThingsBoard и EMQX.

Ideal for industrial equipment integration, smart factories, and remote operations, EG8200Lite supports offline data continuity, Node-RED visual programming, virtual serial and network ports, and remote management, delivering a reliable and cost-effective solution for industrial automation.

Основные характеристики

Industrial Data Acquisition

Collect data from PLCs, sensors, and industrial controllers.

Industrial Protocol Conversion

Convert between Modbus, MQTT, OPC UA, and other protocols.

Device-to-Cloud Connectivity

Connect field devices to cloud platforms for monitoring.

Flexible Data Mapping

Define custom data formats, mapping rules, and logic.

Визуальное программирование Node-RED

Build automation workflows using the built-in Node-RED editor.

Непрерывность данных в оффлайн

Local storage ensures data buffering during network interruptions.

Remote Device Management

Remote configuration, monitoring, firmware upgrades, and PLC debugging.

Industrial-Grade Reliability

Operates from −20°C to 85°C with 9–36V wide voltage input.

* Support OEM/ODM, contact customer service for details.

Simple but Significant Cost-Effective Choice

Focus on industrial IoT infrastructure empowerment, with streamlined configurations to target core needs, featuring controllable costs and reliable operation.

Продукты серии EG

Gateways across the EG series maintain a consistent user experience. Model variations are largely hardware-related, and any functional differences are generally confined to certain node options.

Быстрый доступ к продуктам серии EG →

Основные функции

Multi-Protocol Seamless Integration

Compatible with major industrial and network protocols.Integrates effortlessly with AWS, Azure, and ThingsBoard for rapid cloud data transfer, accelerating enterprise digital transformation.

Удаленное управление и обслуживание

Works with the EG Series Remote O&M Software IOTClient to enable remote configuration, debugging, diagnosis, and program updates, greatly enhancing O&M efficiency.

Virtual Channels Wireless Connection

With virtual serial & Ethernet port technologies. Support remote upload and download of PLC programs and serial device debugging.

Pre-built Nodes Drag & Deploy

Comes with a deeply customized Node-Red, with visual node-based programming. It accelerates the setup of industrial IoT workflows.

Cost-effective Industrial IoT Gateway Приложения

Many industrial IoT deployments involve distributed equipment, small monitoring sites, and limited project budgets. In these environments, deploying high-end industrial gateways may not be necessary.

The EG8200Lite, positioned as a cost-effective industrial IoT edge gateway, provides reliable device connectivity and data acquisition for lightweight industrial IoT applications.

1. Remote Monitoring for Distributed Equipment

Many industrial devices, such as pump stations, machine rooms, environmental monitoring points, and utility cabinets, operate in remote or unattended locations.

The EG8200Lite collects operational data from connected sensors, meters, or PLCs through its RS485 interfaces and transmits the data to monitoring platforms via Cat.1 cellular connectivity.

This enables stable remote monitoring without requiring wired networks or complex infrastructure.

2. Smart Metering and Utility Monitoring

The EG8200Lite is well-suited for smart metering systems, where devices periodically transmit small volumes of operational data.

It can connect to electricity meters, water meters, and environmental sensors, collect data through protocols such as Modbus RTU or DL/T645, and forward it to cloud platforms using standard IoT protocols.

The Cat.1 network provides reliable connectivity while maintaining lower communication costs, making it ideal for cost-sensitive IoT projects.

3. Protocol Gateway for Legacy Industrial Devices

Many industrial installations still rely on legacy serial devices that cannot directly connect to modern IoT platforms.

The EG8200Lite acts as a lightweight protocol gateway, converting industrial protocols such as Modbus RTU into IoT protocols like MQTT or HTTP, allowing legacy equipment to integrate with modern monitoring systems.

This makes it suitable for retrofit projects, small automation systems, and budget-constrained deployments.

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

Q1: Is the performance of EG8200Lite (Single-core A7, 256MB RAM) sufficient? Is it too weak?

A1: For its target scenarios—connecting a small number of devices (such as a few PLCs or energy meters) for data acquisition, protocol conversion, and transparent transmission—it is perfectly sufficient. It is designed to meet core industrial needs at the most optimized cost, rather than providing excessive performance. It performs stably in typical scenarios like Modbus RTU/TCP collection and data reporting via MQTT/HTTP.

Q2: Which communication protocols does it support? Can it connect to specific brand PLCs?

A2: It natively supports common industrial protocols such as Modbus, DLT645, and HJ212.

• • Extensibility: Through the built-in Node-RED visual programming platform, you can load third-party nodes to extend support to OPC UA, BACnet, and more.
  • Compatibility: It can connect to the vast majority of mainstream PLC brands via corresponding protocol nodes.

Q3: Is 4G Cat.1 speed slow? Will there be data upload latency?

A3: Cat.1 offers a theoretical downlink of 10Mbps and uplink of 5Mbps, which is more than enough for common IoT data packets like sensor readings and status info. The latency is fully acceptable. Its advantage lies in much lower power consumption and cost compared to Cat. 4, making it ideal for low-frequency, small-bandwidth industrial data transmission.

Q4: How is its reliability and protection? Can it be used in harsh workshop environments?

A4: Yes. It features an industrial-grade design:

• • Environmental: Operating temperature from -20°C to 85°C and wide voltage input (9-36V DC).
  • Protection: CE certified with Level 2 Surge (±1KV) and EFT protection, ensuring stability in common industrial interference environments.

Q5: We don’t have professional software engineers. Can we still configure and use it?

A5: This is one of the core strengths of EG8200Lite. It provides drag-and-drop visual programming based on Node-RED. Most data acquisition and forwarding logic can be configured by simply connecting nodes, significantly lowering the technical barrier. We also provide comprehensive remote technical support.

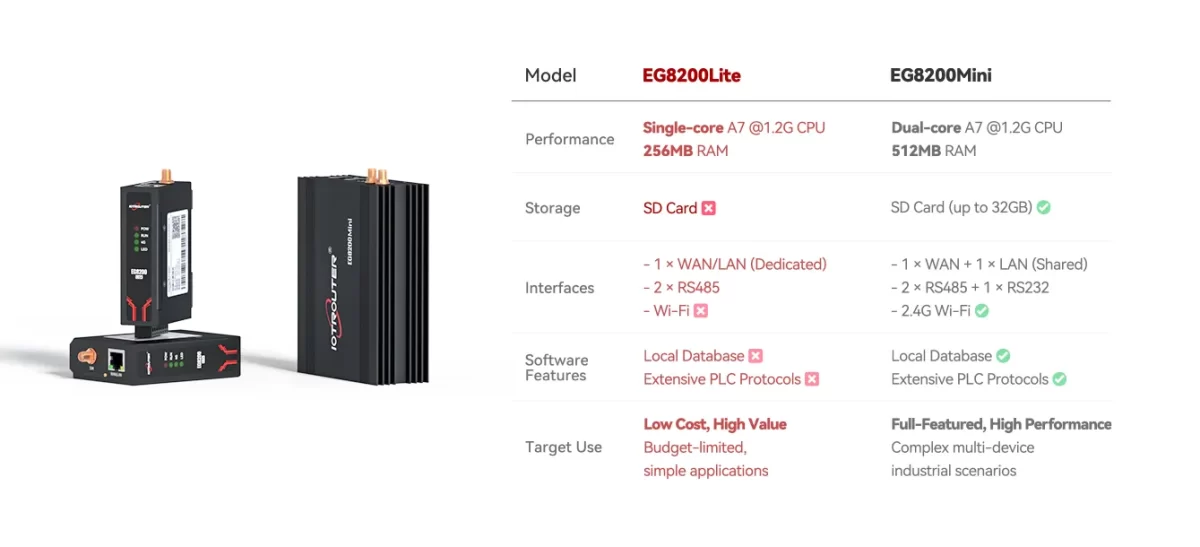

Q6: What are the main differences between the EG8200Lite RS485 Modbus Gateway, EG8200, and EG8200Pro?

A6: The three models are positioned for different project requirements:

Note on PLC Support: EG8200Lite Industrial protocol gateway supports standard Modbus (RTU/TCP) and industry protocols. Unlike the EG8200/Pro series, it does not natively support proprietary protocols of brands like Siemens, Mitsubishi, or Omron (unless extended via Node-RED).

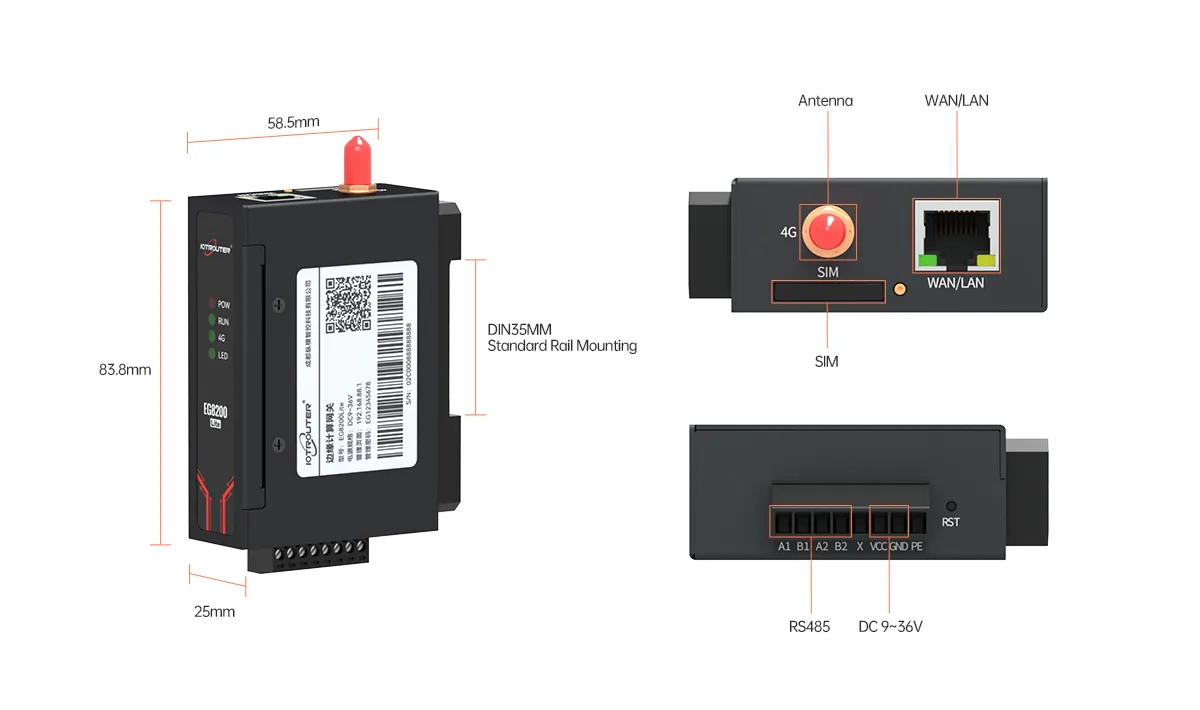

Product Size And Ports

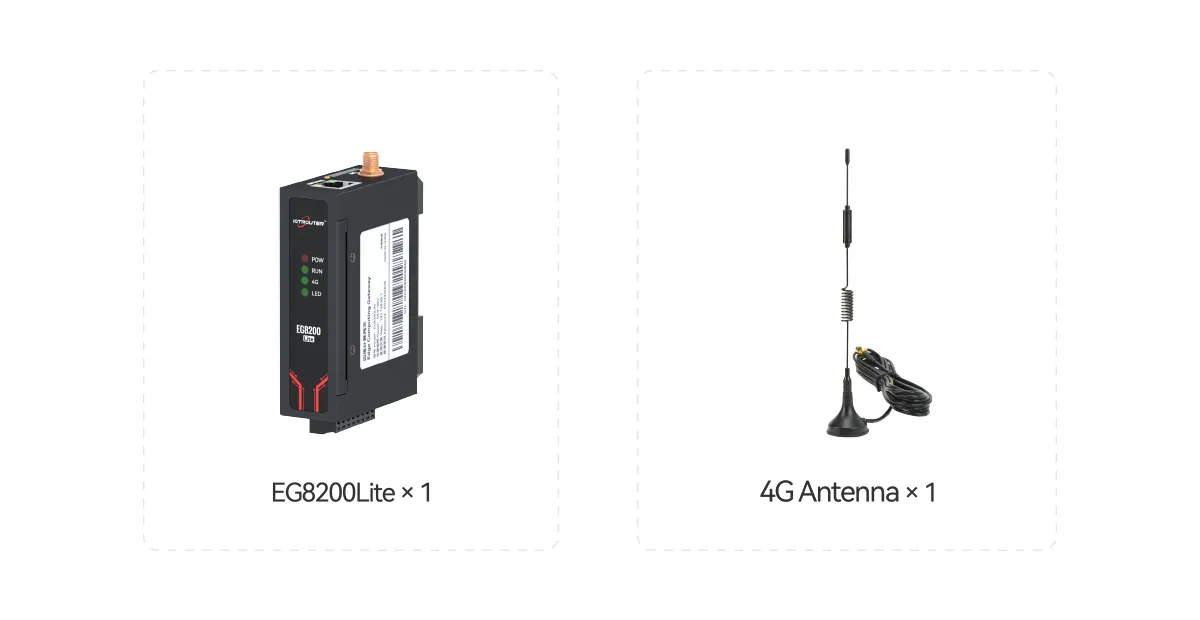

Список упаковки
